BG-FILCOTEN® pro V 200 Trench Drains

The BG-FILCOTEN® pro V  200 high-performance concrete trench drain is a modular drainage system that consists of constant depth and sloped channel sections. Features 8 in. wide channels with galvanized steel rails.

Where to Buy

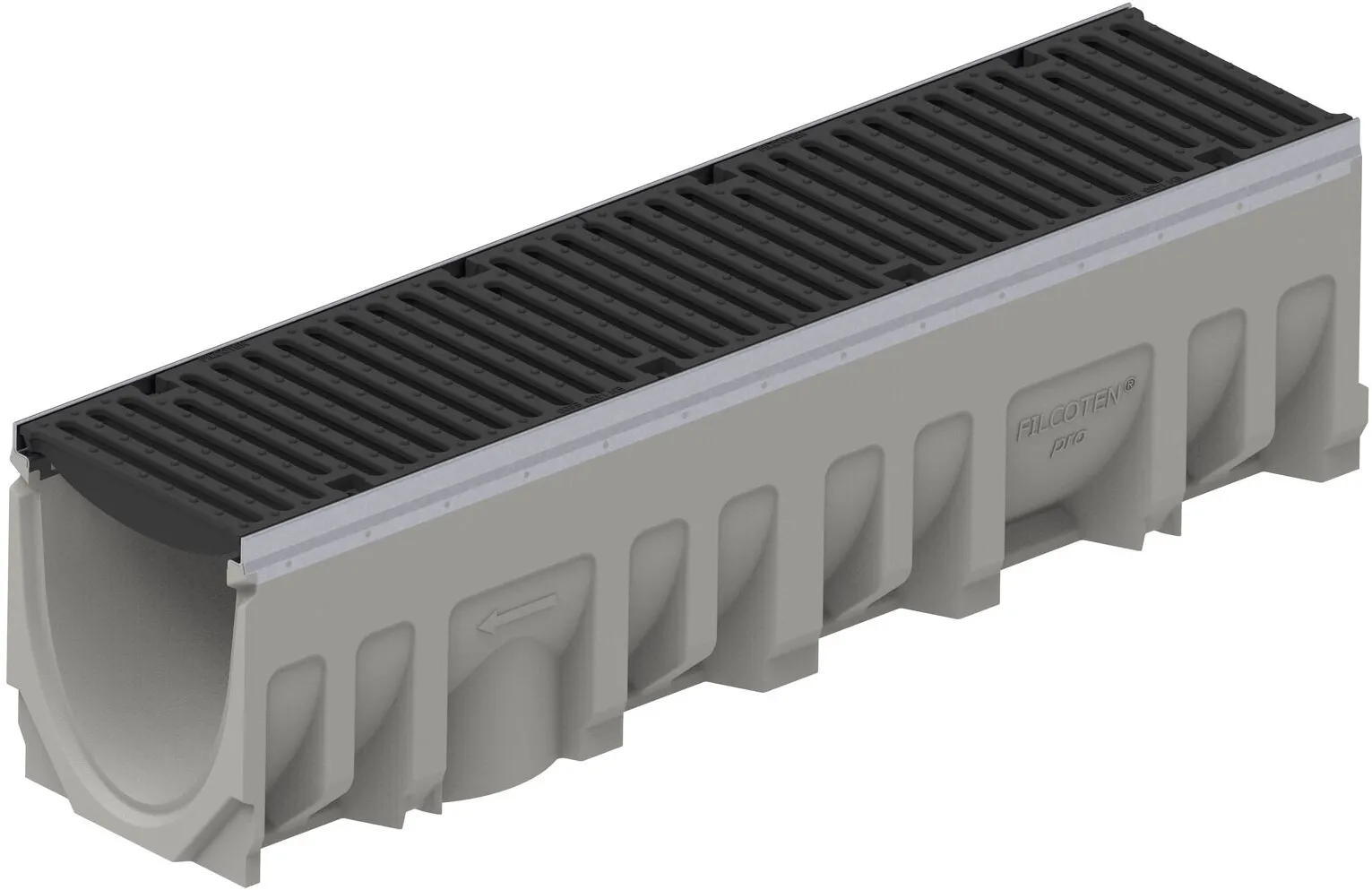

The class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105) installed on the Filcoten 200 Trench Drain with female end showing
Where to Buy
Closeup view of the male interlocking end of the BG-FILCOTEN® by NDS® pro V 200 Trench Channel Drain with Galvanized Steel Rails
Top down View of ductile iron bar design BG-FILCOTEN® 300 Trench Drain Grate (NDS 17030103)
Top down closeup view of class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104)
Top down closeup view of class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105)
Closeup view of the male interlocking end of the BG-FILCOTEN® by NDS® pro V 200 Trench Channel Drain with Galvanized Steel Rails
Top down View of ductile iron bar design BG-FILCOTEN® 300 Trench Drain Grate (NDS 17030103)
Top down closeup view of class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104)
Top down closeup view of class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105)

Key Features

  • Built with world-class craftsmanship, the BG-FILCOTEN drain combines the reliability of stable concrete with the strength and durability of high-performance concrete

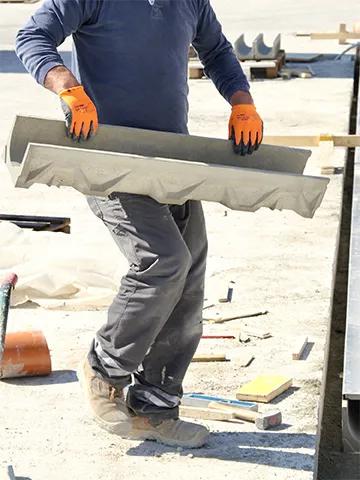

  • Channel is lighter than most conventional concrete channels for lower transport costs, easier handling, and faster installation; handles high-load capacity
  • Channels are available with constant or sloped depth; smooth interior channel reduces turbulence and enables a self-cleaning effect
  • Customize with grates available in a variety of materials and styles such as perforated, bar, and decorative designs
  • Optimize the drainage system with accessories such as the inline catch basin kit, trash bucket, bottom outlet, end cap, and end outlet

Applications

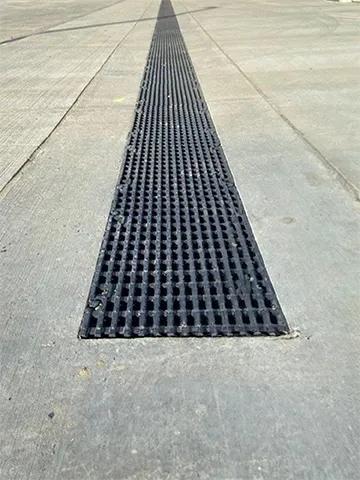

  • Ideal for factories, warehouses, garages, railway stations, municipal areas, and areas with similar surfaces
  • Channel drains and trench drains are ideal for hardscapes to prevent mildew growth, concrete staining, and costly damage by capturing and conveying excess water for proper release downstream
  • As part of a complete drainage system, the BG-FILCOTEN® trench drain works with drain grates and accessories to capture stormwater runoff and convey it to drain pipe for proper release downstream

Installation & Maintenance

  • Sections connect together with interlocking tongue and groove joints
  • Crafted with flat sides for flush installations against buildings
  • Anti-sliding lugs provide stability against longitudinal sliding
  • Anchoring ribs support the channel and increase the surface area for better adhesion to surrounding concrete
  1. Check the drain grate and clear debris from grate openings
  2. Remove grate to inspect inside the trench drain
  3. Check drain pipes connected to the trench drain and clear any obstructions

Materials & Sustainability

  • Channel is made of high-performance concrete
  • Country of origin: Austria

Product Models

Filter results
Family
Color
Shape

40 products

    Part Number
    (click for more info)    		 Description
    70154 BG-FILCOTEN® 200 and 300 Trench Drain 8 in. Pipe Connector for Catch Basin, PVC
    19021208 BG-FILCOTEN® 200 and 300 Trench Drain Bottom Outlet, Galvanized Steel
    19020215 BG-FILCOTEN® 200 Trench Drain End Cap, Galvanized Steel
    19020216 BG-FILCOTEN® 200 Trench Drain End Outlet, Galvanized Steel
    32089 BG-FILCOTEN® 200 Trench Drain Grate Locking Device, Stainless Steel
    17020104 BG-FILCOTEN® 200 Trench Drain Grate, 8.74 in. Wide X 19.69 in. Long, Bar Design, NDS Class D Load, Ductile Iron
    17020105 BG-FILCOTEN® 200 Trench Drain Grate, 8.74 in. Wide X 19.69 in. Long, Bar Design, NDS Class E Load, Ductile Iron
    17020183 BG-FILCOTEN® 200 Trench Drain Grate, 8.74 in. Wide X 19.69 in. Long, Decorative Kiaro Slot Design, NDS Class D Load, Ductile Iron
    17020184 BG-FILCOTEN® 200 Trench Drain Grate, 8.74 in. Wide X 19.69 in. Long, Decorative Via Slot Design, NDS Class D Load, Ductile Iron
    17020180 BG-FILCOTEN® 200 Trench Drain Grate, 8.74 in. Wide X 19.69 in. Long, Decorative Ville Slot Design, NDS Class E Load, Ductile Iron
    17020229 BG-FILCOTEN® 200 Trench Drain Grate, 8.74 in. Wide X 19.69 in. Long, Perforated Design, NDS Class C Load, Galvanized Steel
    17020228 BG-FILCOTEN® 200 Trench Drain Grate, 8.74 in. Wide X 39.37 in. Long, Perforated Design, NDS Class C Load, Galvanized Steel
    10620292 BG-FILCOTEN® 200 Trench Drain Inline Catch Basin Kit with 1-Outlet Catch Basin and Trash Bucket
    19020902 BG-FILCOTEN® 200 Trench Drain Rebar Support, Galvanized Steel
    19020295 BG-FILCOTEN® 200 Trench Drain Step Connector Plate, Galvanized Steel
    22512 BG-FILCOTEN® 200 Trench Drain Trash Bucket, Plastic
    10620204 BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 10.04 in. to 10.24 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 11.22 in. Deep, Sloped Channel 4
    10620205 BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 10.24 in. to 10.44 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 11.42 in. Deep, Sloped Channel 5
    10620261 BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 10.44 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 11.42 in. Deep, Constant Depth Channel 5-0
    10620206 BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 10.44 in. to 10.63 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 11.61 in. Deep, Sloped Channel 6
    10620207 BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 10.63 in. to 10.83 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 11.81 in. Deep, Sloped Channel 7
    10620208 BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 10.83 in. to 11.02 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 12.01 in. Deep, Sloped Channel 8
    10620209 BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 11.02 in. to 11.22 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 12.20 in. Deep, Sloped Channel 9
    10620210 BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 11.22 in. to 11.42 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 12.40 in. Deep, Sloped Channel 10
    10620262 BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 11.42 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 12.40 in. Deep, Constant Depth Channel 10-0
    10620211 BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 11.42 in. to 11.61 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 12.60 in. Deep, Sloped Channel 11
    10620212 BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 11.61 in. to 11.81 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 12.80 in. Deep, Sloped Channel 12
    10620213 BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 11.81 in. to 12.01 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 12.99 in. Deep, Sloped Channel 13
    10620214 BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 12.01 in. to 12.20 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 13.19 in. Deep, Sloped Channel 14
    10620215 BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 12.20 in. to 12.40 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 13.39 in. Deep, Sloped Channel 15
    10620216 BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 12.40 in. to 12.60 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 13.58 in. Deep, Sloped Channel 16
    10620217 BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 12.60 in. to 12.80 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 13.78 in. Deep, Sloped Channel 17
    10620218 BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 12.80 in. to 12.99 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 13.98 in. Deep, Sloped Channel 18
    10620219 BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 12.99 in. to 13.19 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 14.17 in. Deep, Sloped Channel 19
    10620220 BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 13.19 in. to 13.38 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 14.37 in. Deep, Sloped Channel 20
    10620264 BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 13.38 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 14.37 in. Deep, Constant Depth Channel 20-0
    10620200 BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 9.45 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 10.43 in. Deep, Constant Depth Channel 0
    10620201 BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 9.45 in. to 9.65 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 10.63 in. Deep, Sloped Channel 1
    10620202 BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 9.65 in. to 9.84 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 10.83 in. Deep, Sloped Channel 2
    10620203 BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 9.84 in. to 10.04 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 11.02 in. Deep, Sloped Channel 3
