BG-FILCOTEN® 200 Trench Drain End Outlet, Galvanized Steel

SKU: 19020216

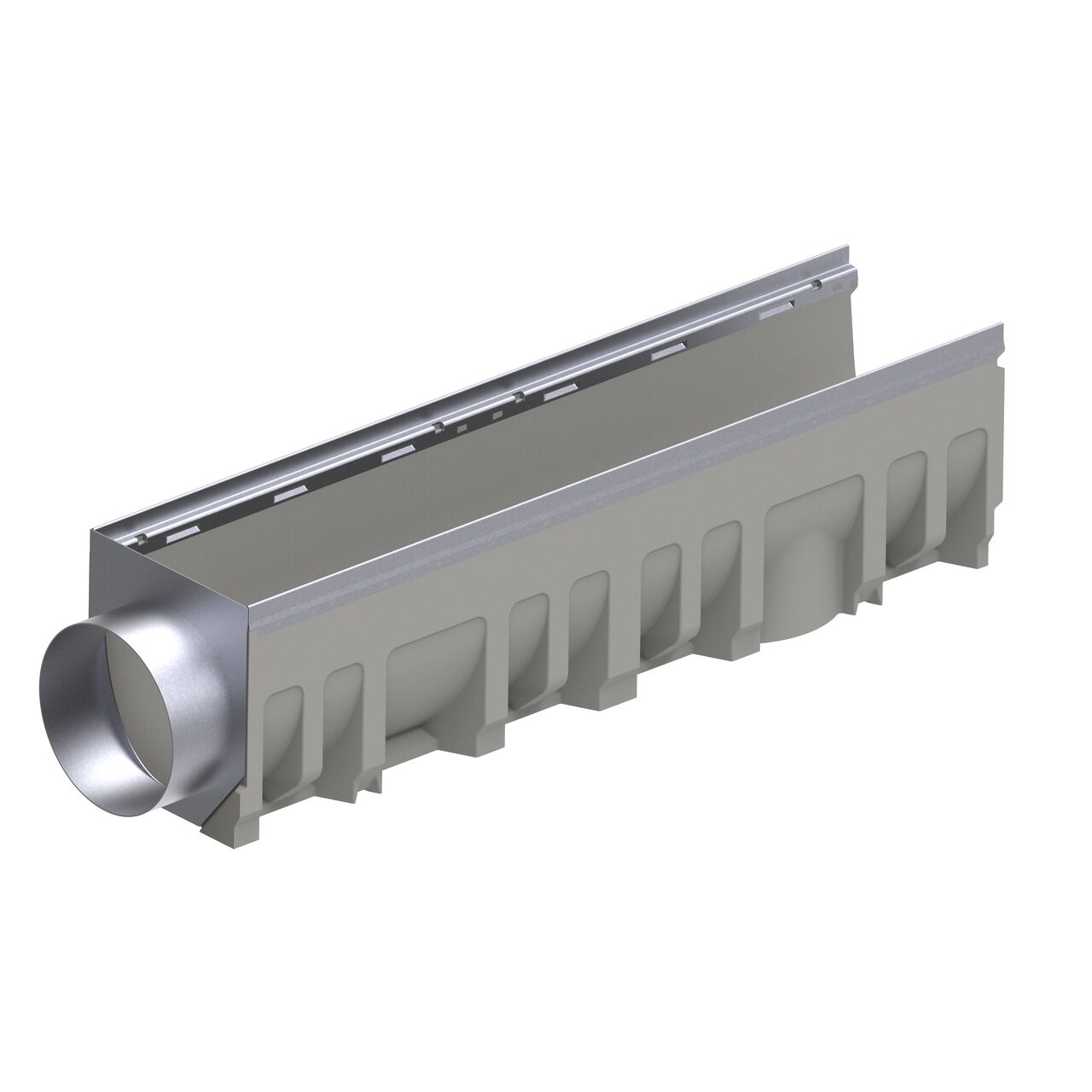

The galvanized steel BG-FILCOTEN® by NDS® 200 Trench Drain End Outlet (NDS 19020216) installed on the female interlocking end of the deep 8 in. BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails

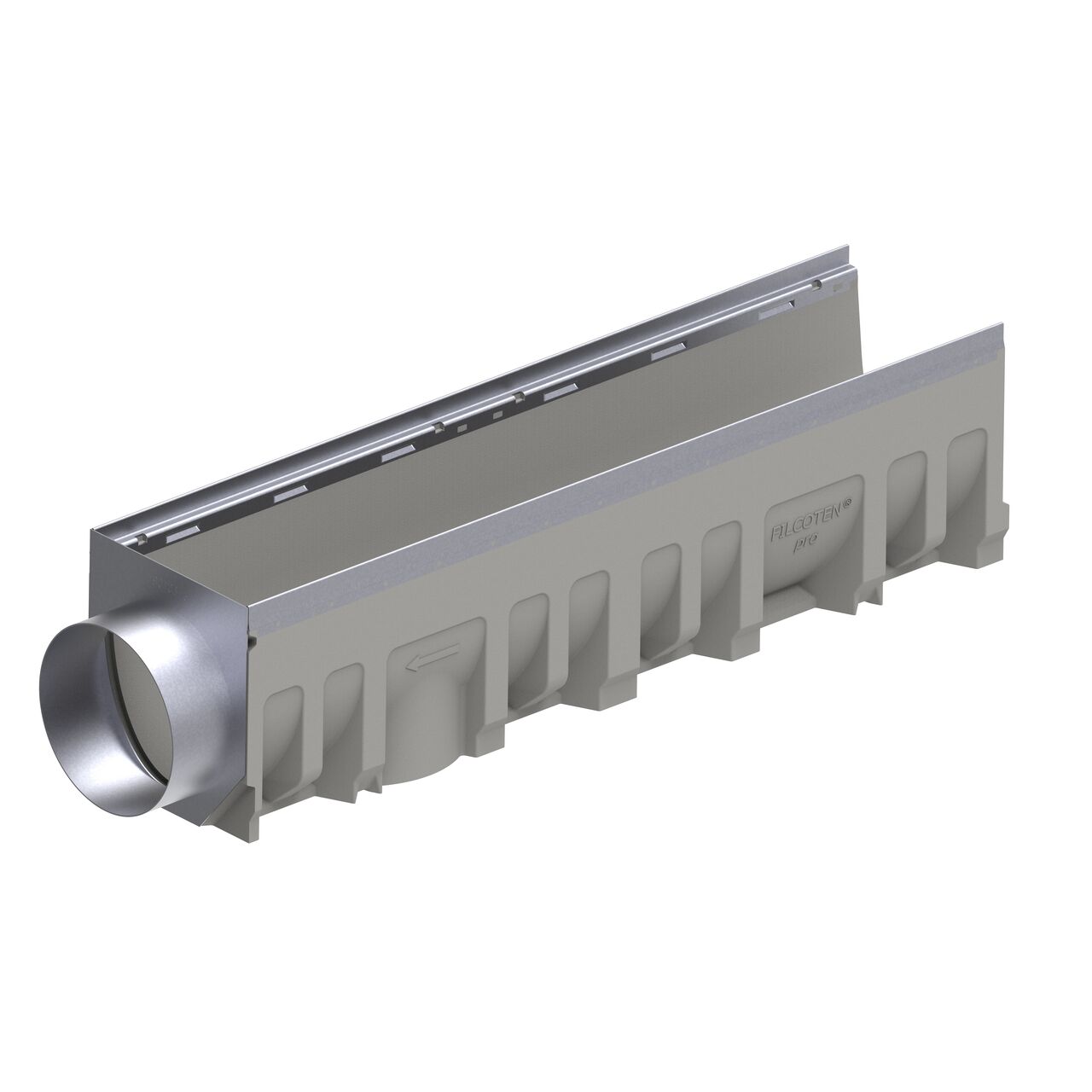

The galvanized steel BG-FILCOTEN® by NDS® 200 Trench Drain End Outlet (NDS 19020216) installed on the male interlocking end of the 8 in. BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails
The galvanized steel BG-FILCOTEN® by NDS® 200 Trench Drain End Outlet (NDS 19020216) installed on the male interlocking end of the deep 8 in. BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails

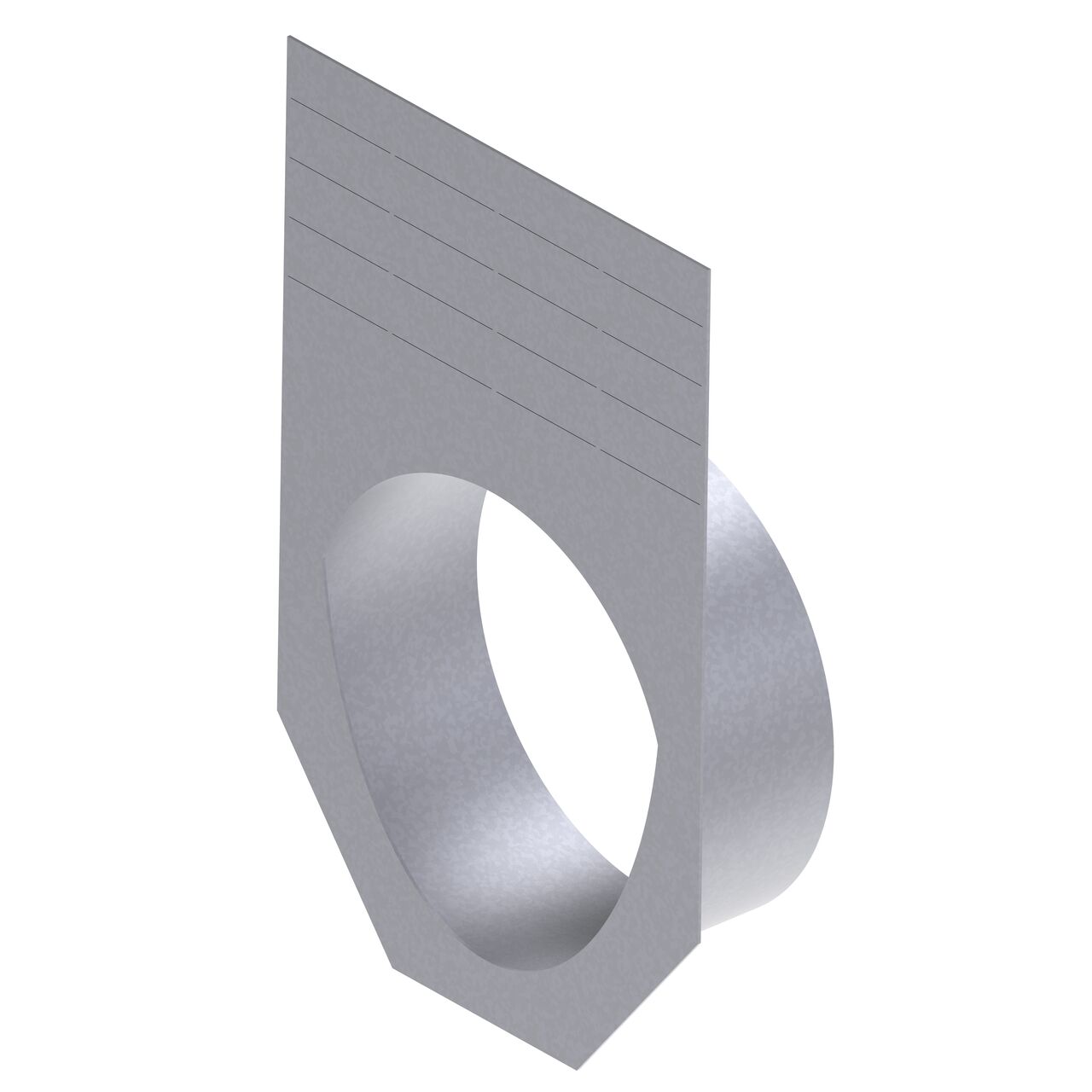

The inner side of the galvanized steel BG-FILCOTEN® by NDS® 200 Trench Drain End Outlet (NDS 19020216) which stops the flow of water at end of the channel drain

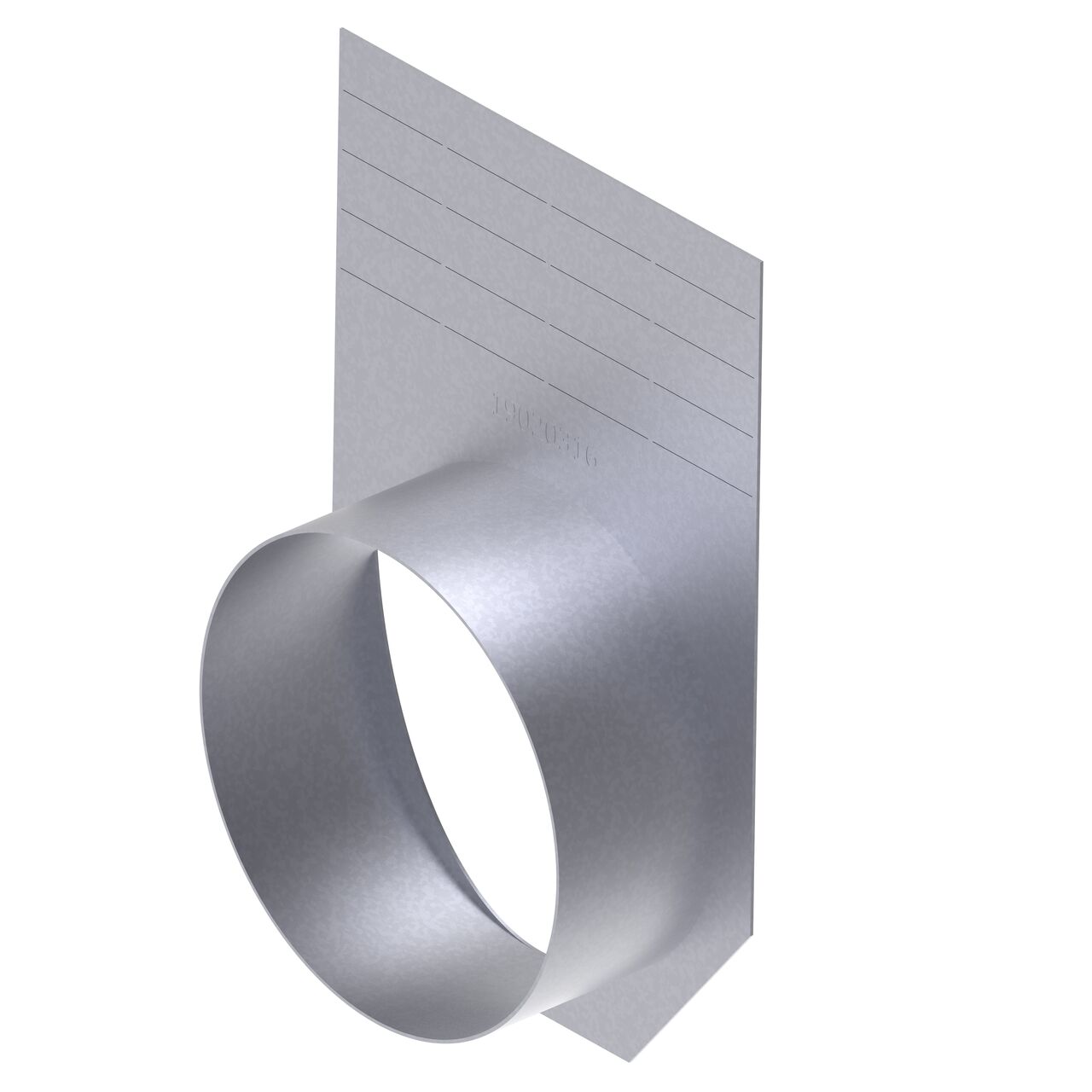

The galvanized steel BG-FILCOTEN® by NDS® 200 Trench Drain End Outlet (NDS 19020216) makes the transition from channel to 8 in. DWV pipe

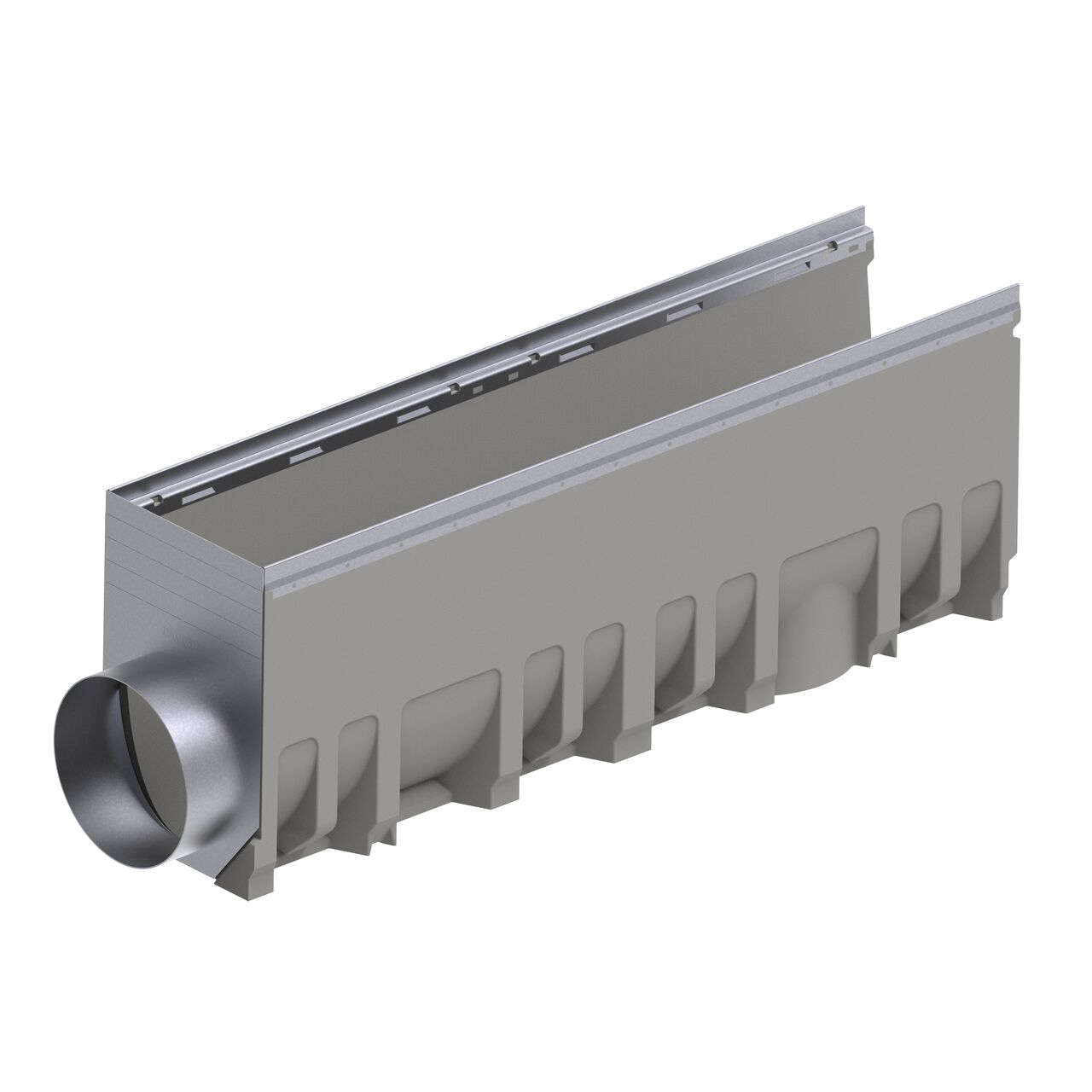

The galvanized steel BG-FILCOTEN® by NDS® 200 Trench Drain End Outlet (NDS 19020216) installed on the female interlocking end of the 8 in. BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails
The galvanized steel BG-FILCOTEN® by NDS® 200 Trench Drain End Outlet (NDS 19020216) installed on the female interlocking end of the deep 8 in. BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails
The galvanized steel BG-FILCOTEN® by NDS® 200 Trench Drain End Outlet (NDS 19020216) installed on the male interlocking end of the 8 in. BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails
The galvanized steel BG-FILCOTEN® by NDS® 200 Trench Drain End Outlet (NDS 19020216) installed on the male interlocking end of the deep 8 in. BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails
The inner side of the galvanized steel BG-FILCOTEN® by NDS® 200 Trench Drain End Outlet (NDS 19020216) which stops the flow of water at end of the channel drain
The galvanized steel BG-FILCOTEN® by NDS® 200 Trench Drain End Outlet (NDS 19020216) makes the transition from channel to 8 in. DWV pipe
The galvanized steel BG-FILCOTEN® by NDS® 200 Trench Drain End Outlet (NDS 19020216) installed on the female interlocking end of the 8 in. BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails

Add an outlet to the end of the BG-FILCOTEN® 200 trench drain with the End Outlet. The outlet connects the channel to 8 in. DWV pipe. Cut the end outlet to fit the desired depth using the reference cut guides and a pair of tinsnips. The component slides into the female end of the channel and is secured with silicone. It can also be adhered to the male end with silicone.

Where to Buy Find a Pro

Applications:

  • Add outlet to the end of the channel to convey water to 8 in. DWV pipe
  • Slides into the female end of the drain and is secured with silicone, can also adhere to the male end with silicone
  • As part of a complete drainage system, the BG-FILCOTEN 200 Trench Drain End Outlet makes the transition from channel to drain pipe

Features:

  • Makes the transition from channel to 8 in. DWV pipe
  • Cut to desired channel depth using the reference cut guides
  • Slides into female end of the channel
