BG-FILCOTEN® 200 Trench Drain Grate, 8.74 in. Wide X 19.69 in. Long, Bar Design, NDS Class D Load, Ductile Iron

SKU: 17020104

Top down closeup view of class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104)

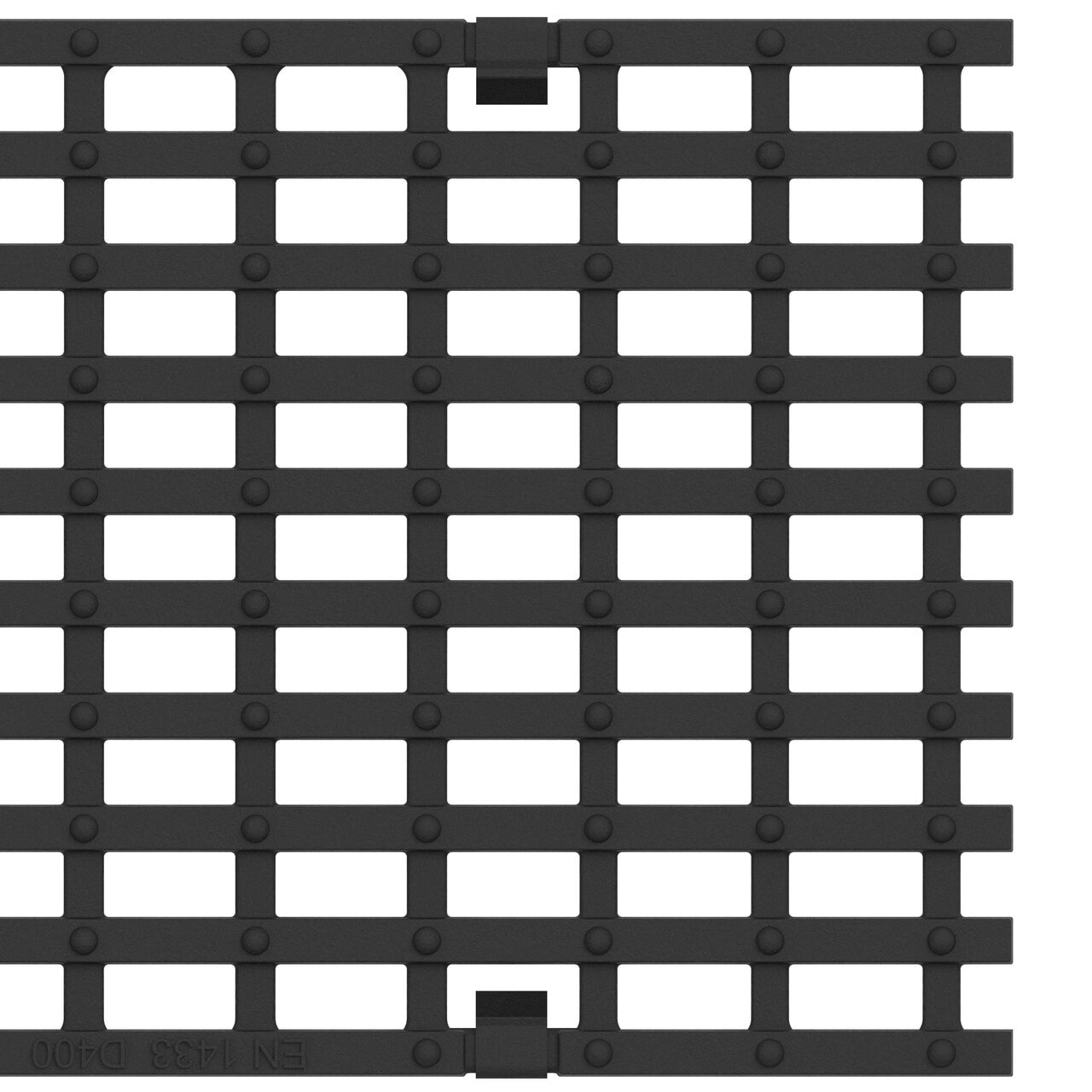

Closeup view of the end on the class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104) showing clips

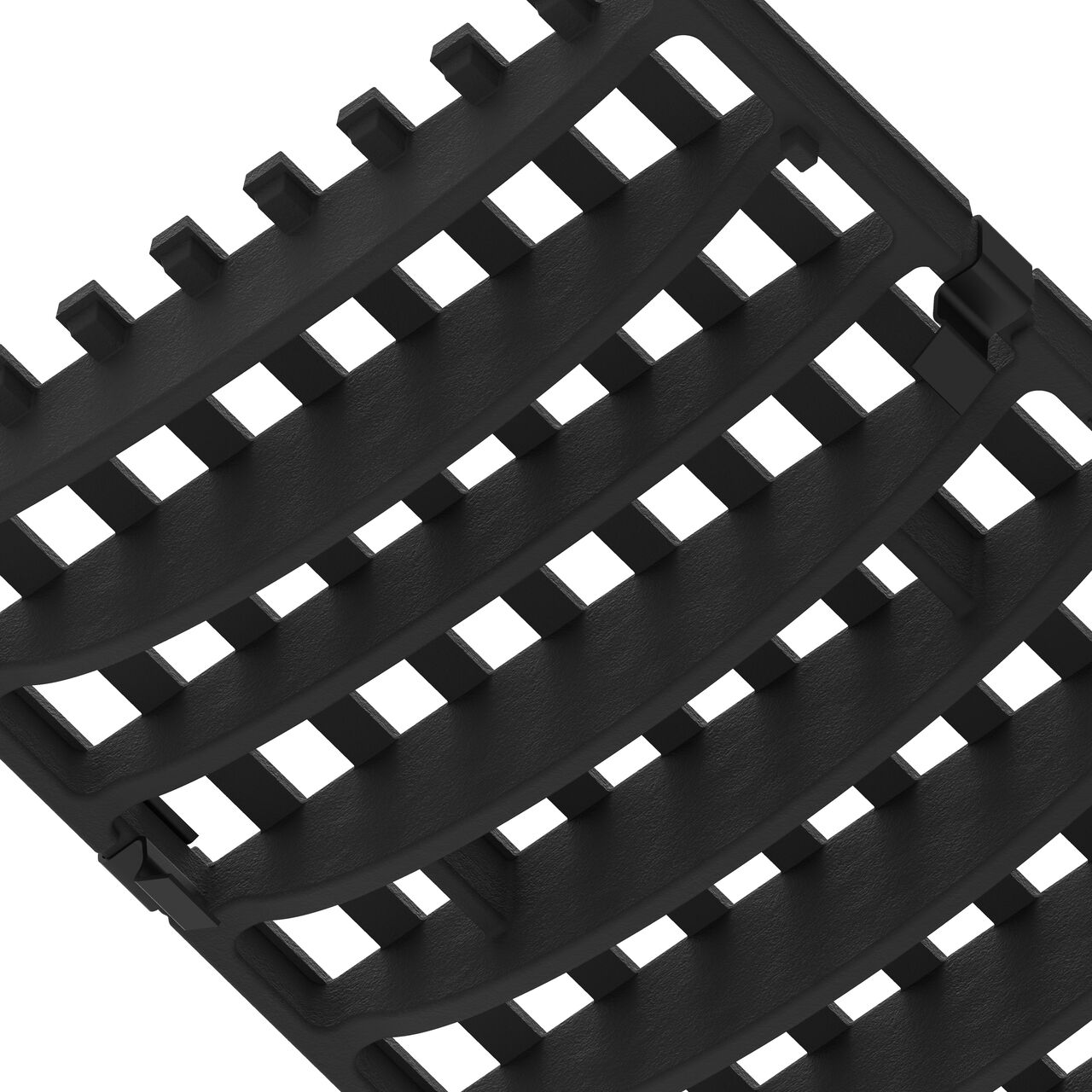

Underside view of the class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104) showing support legs

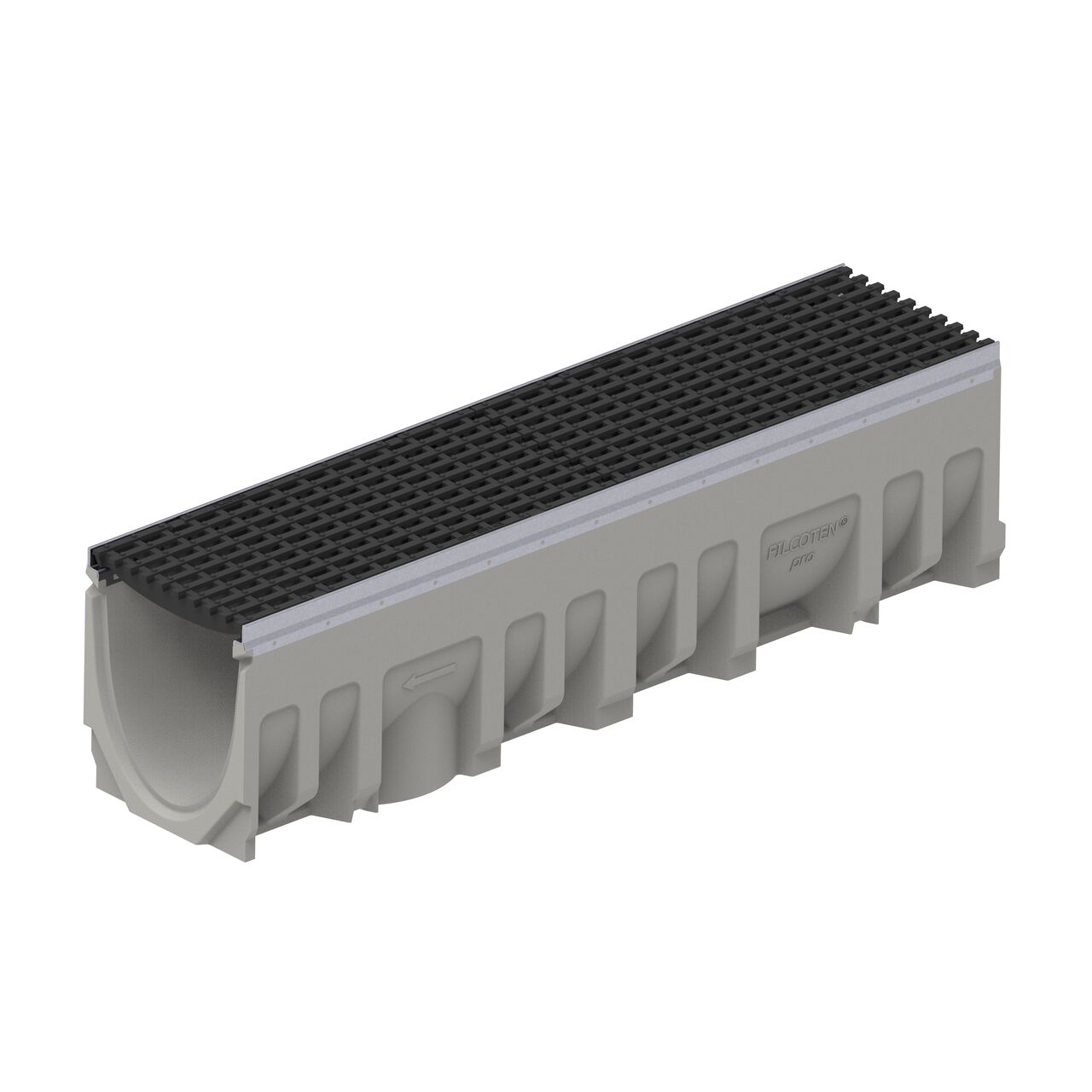

The class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104) installed on the Filcoten 200 Trench Drain with female end showing

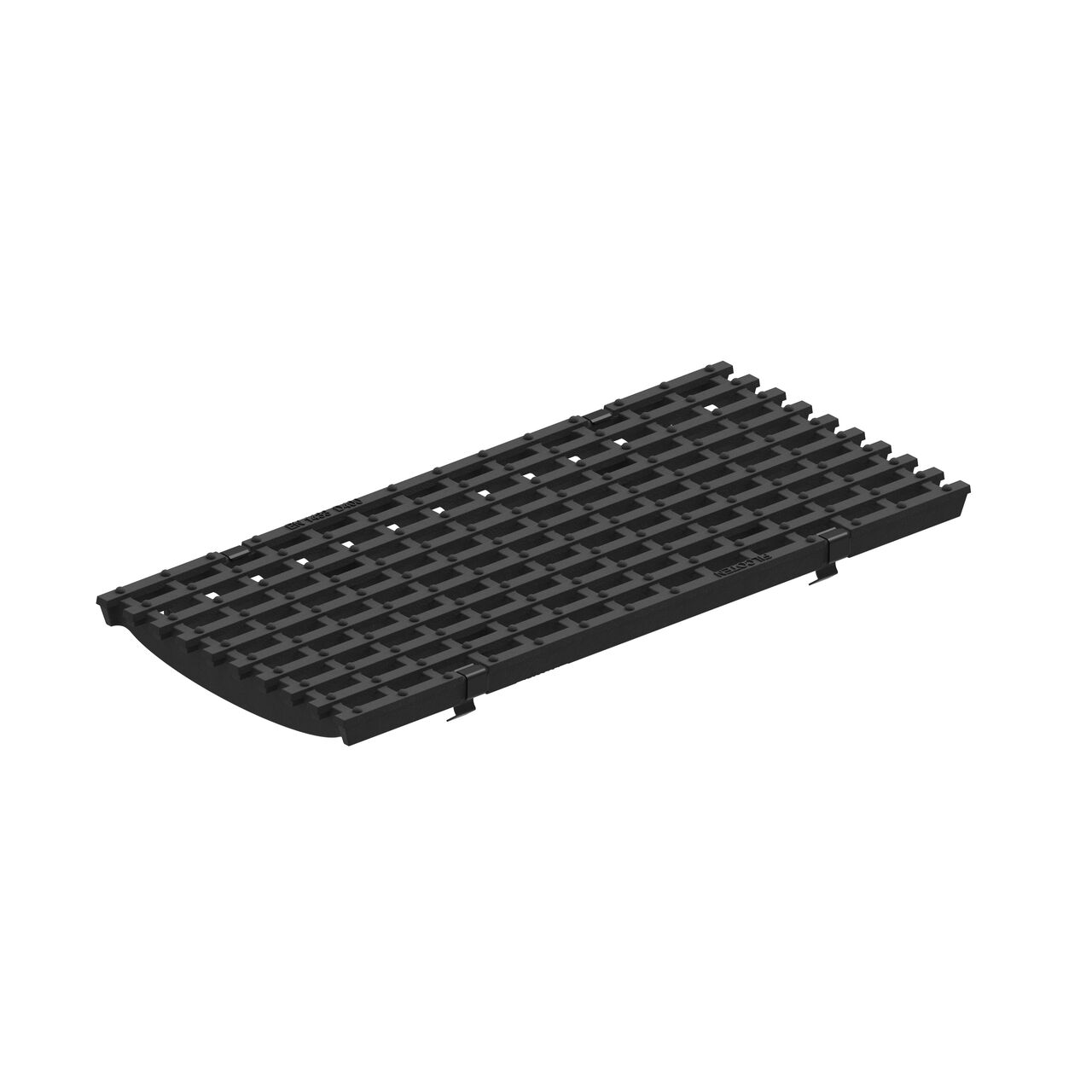

The class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104) fits the 8 in. NDS BG-FILCOTEN® pro V 200 Trench Drain

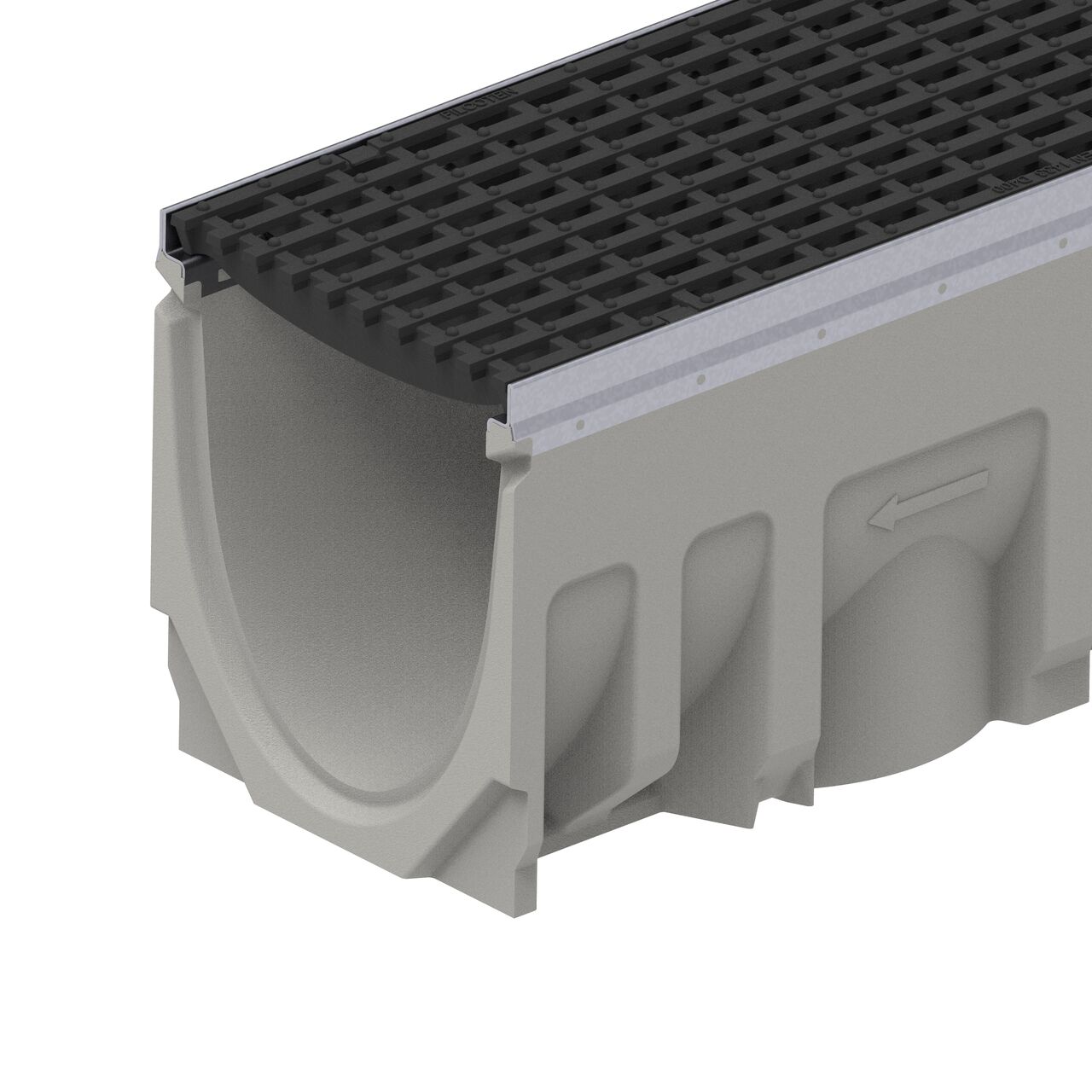

Closeup view of the class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104) installed on the Filcoten 200 Trench Drain with female end showing

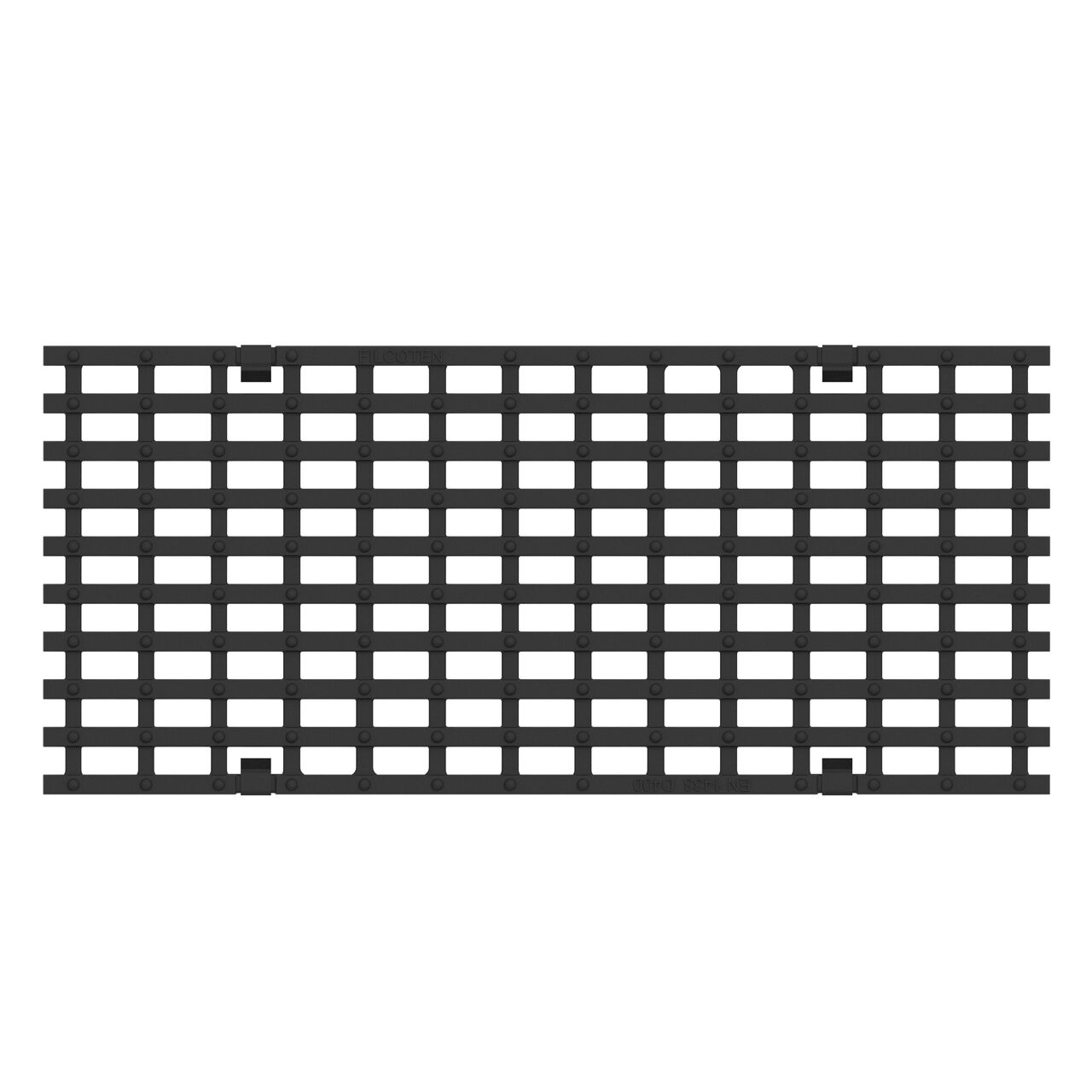

Top Down of entire design of the class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104)

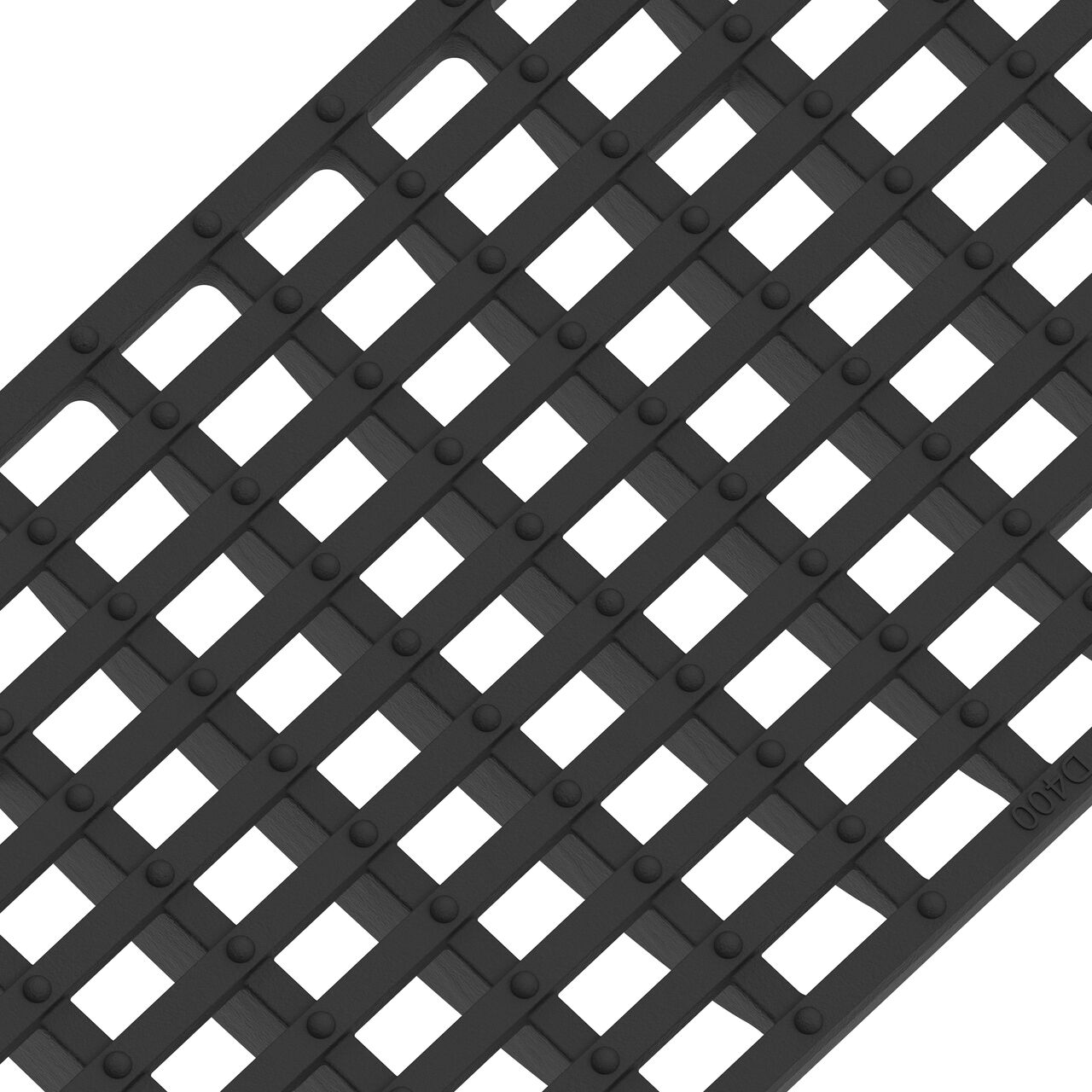

Angled view of class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104)
Top down closeup view of class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104)
Closeup view of the end on the class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104) showing clips
Underside view of the class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104) showing support legs
The class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104) installed on the Filcoten 200 Trench Drain with female end showing
The class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104) fits the 8 in. NDS BG-FILCOTEN® pro V 200 Trench Drain
Closeup view of the class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104) installed on the Filcoten 200 Trench Drain with female end showing
Top Down of entire design of the class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104)
Angled view of class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104)

Keep the drainage system free of debris with the trench drain grate. This ductile iron grate with longitudinal bar design is rated for NDS Class D loads when properly installed. The grate has an open surface area of 145.7 sq. in. per meter and impressive flow rate of 446.3 GPM. ADA compliant. Use two half-meter (19.69 in.) grates to cover one BG-FILCOTEN 200 8 in. trench drain. Iron grates are painted black to inhibit rust. Over time, it will form a protective iron-oxide patina.

Where to Buy Find a Pro

Applications:

  • Prevents leaves and debris from entering the drainage system
  • Ideal for factories, warehouses, garages, railway stations, municipal areas, and areas with similar surfaces
  • As part of a complete drainage system, the BG-FILCOTEN® trench drain grate works with the channel drain to capture stormwater runoff and convey it to drain pipe for proper release downstream

Features:

  • Grate is 8.74 in. wide and 19.69 in. long, works with BG-FILCOTEN pro V 200 channels
  • Rated for NDS Class D loads, handles up to 89,920 lbs.
  • Grate is secured to channel body with four-point snap-in locking system
  • Longitudinal bar design
  • ADA compliant
