BG-FILCOTEN® 200 Trench Drain Grate, 8.74 in. Wide X 19.69 in. Long, Bar Design, NDS Class E Load, Ductile Iron

SKU: 17020105

The class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105) installed on the Filcoten 200 Trench Drain with female end showing

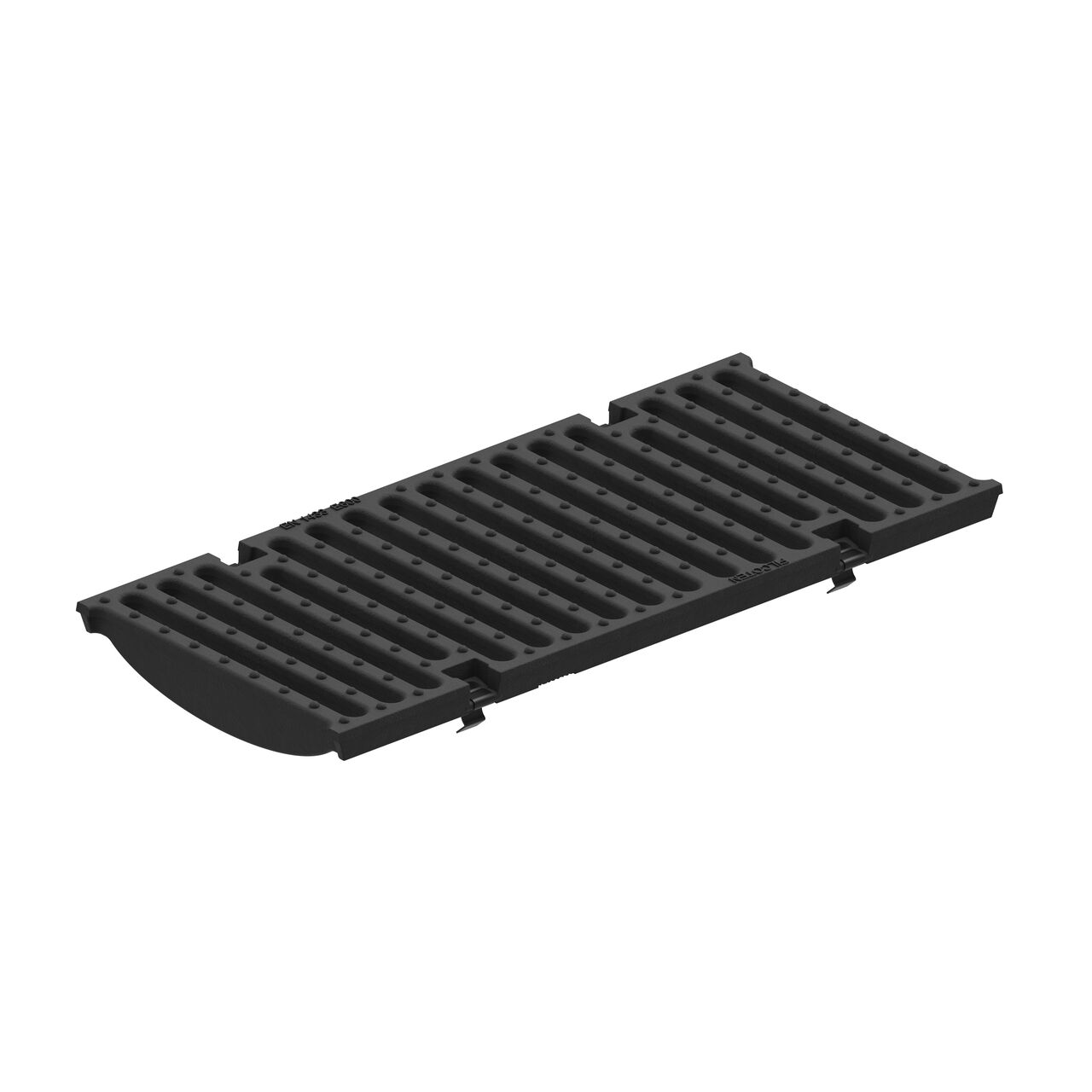

The class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105) fits the 8 in. NDS BG-FILCOTEN® pro V 200 Trench Drain
Angled view of the class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105)

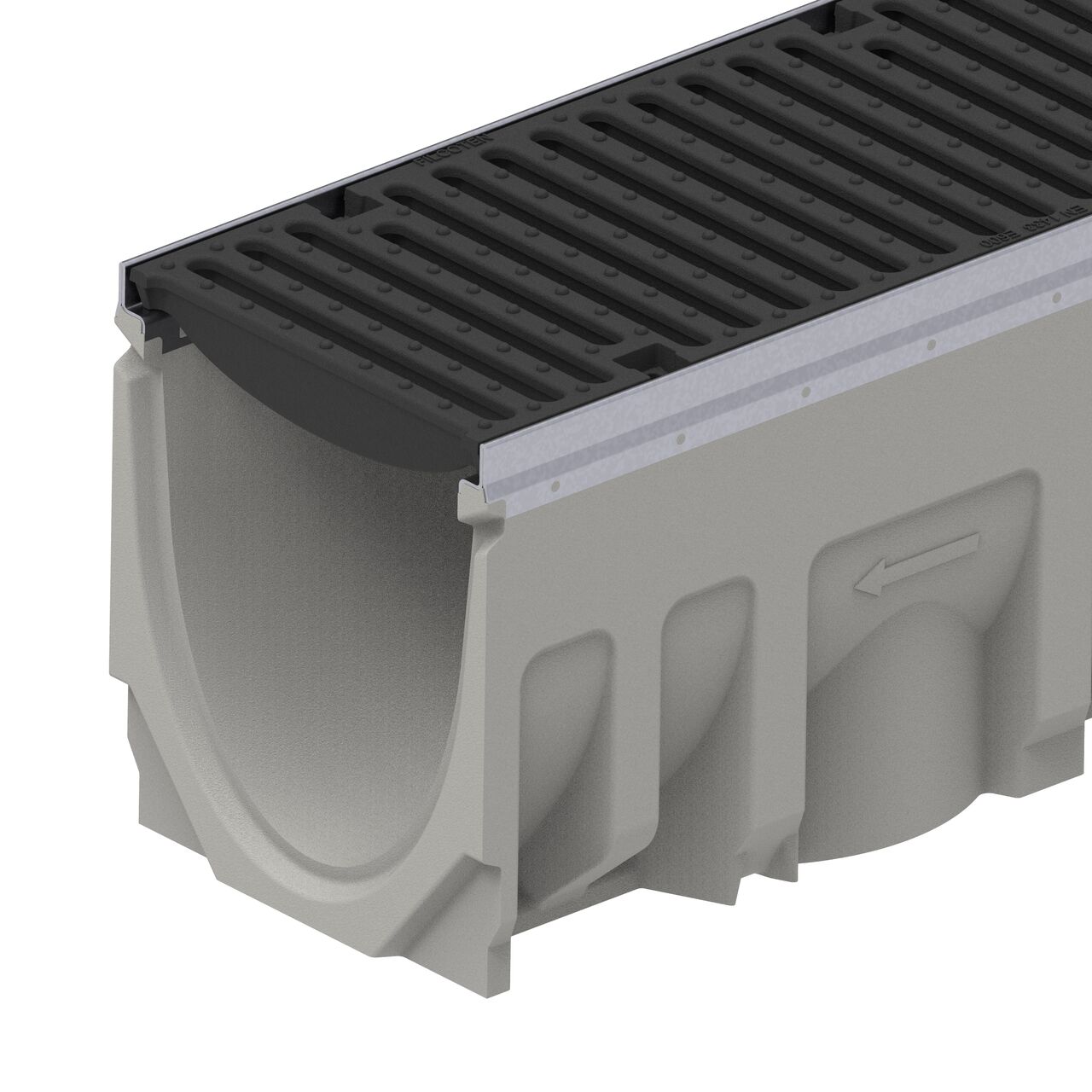

Closeup view of the class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105) installed on the Filcoten 200 Trench Drain with female end showing

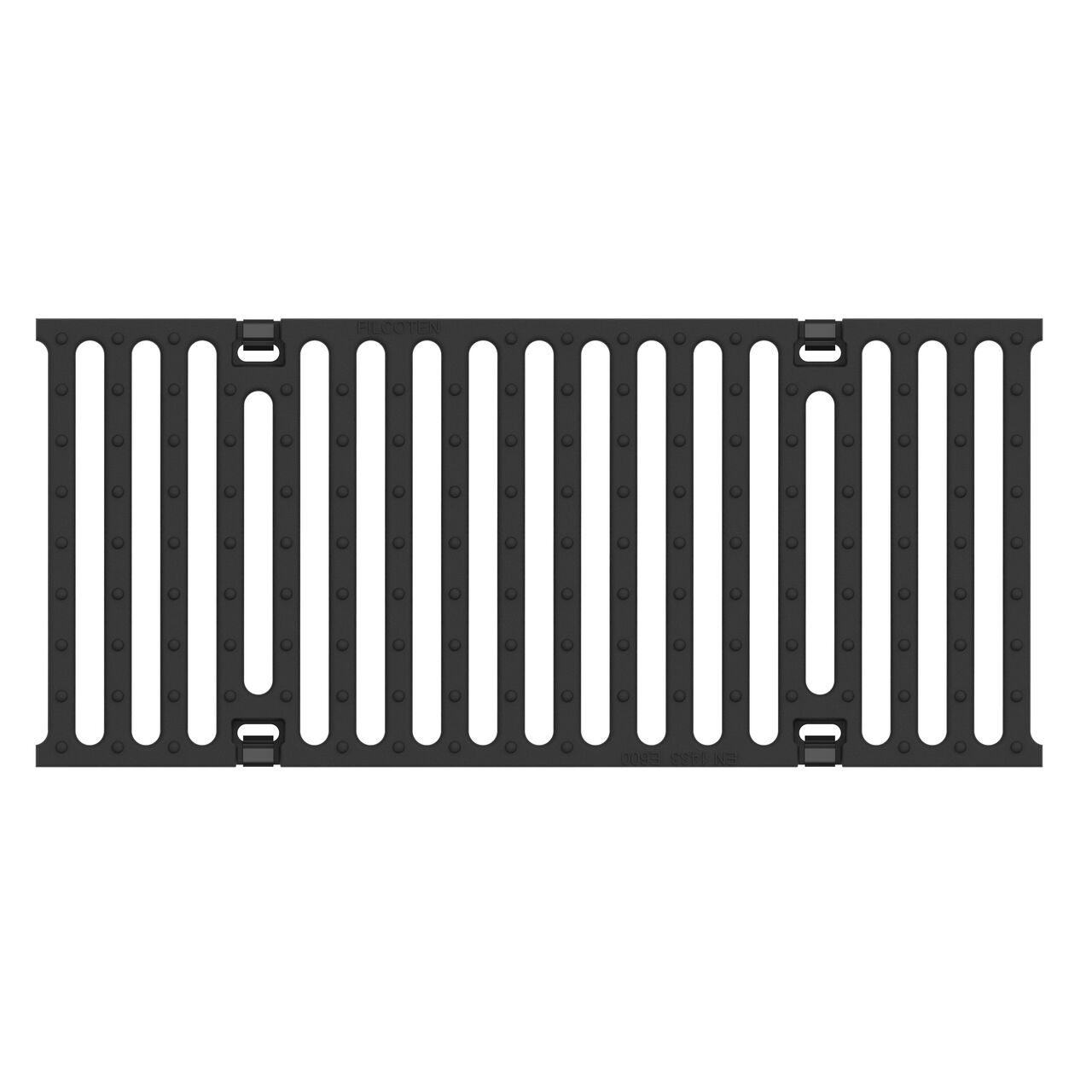

Top Down of entire design of the class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105)
Closeup view of the end on the class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105) showing clips

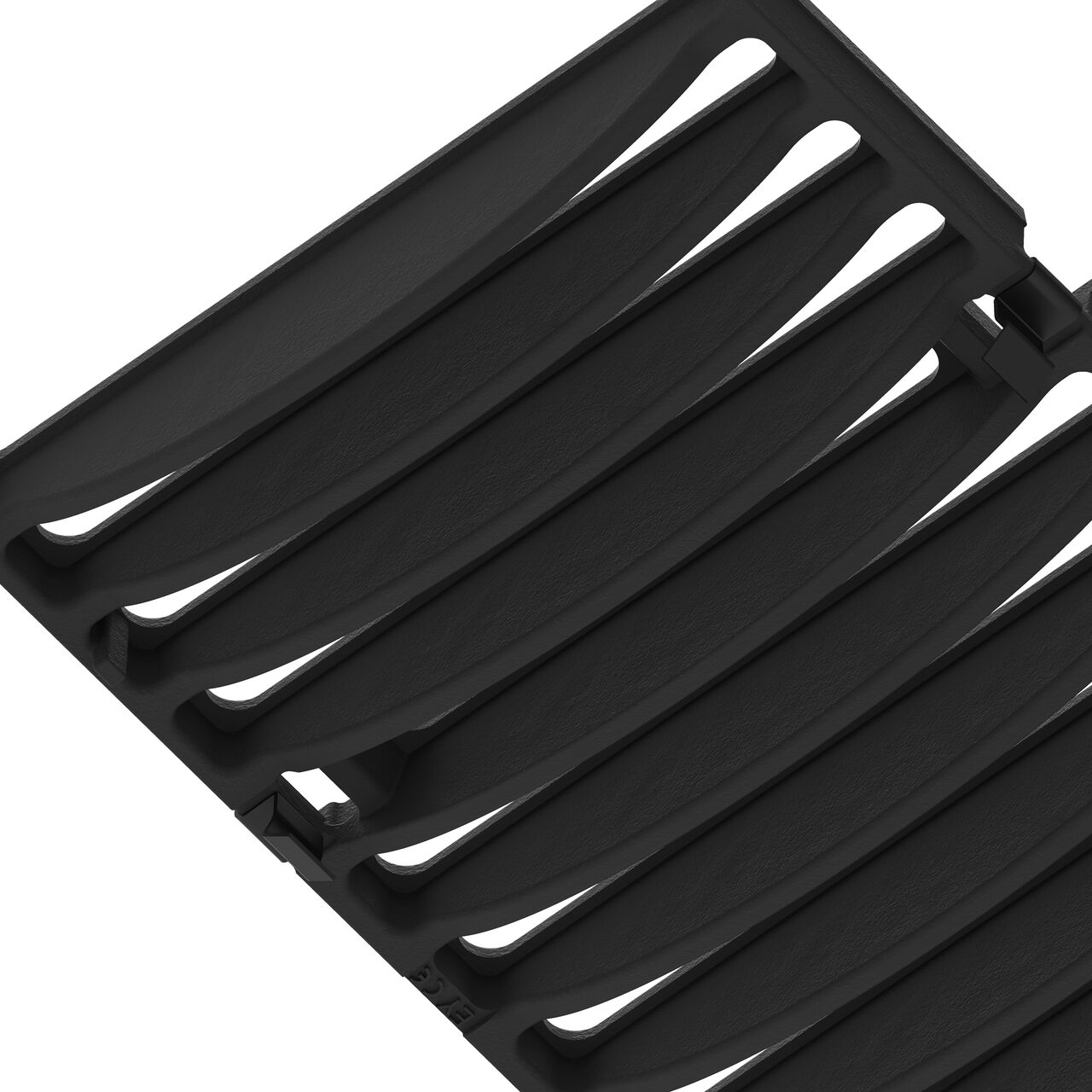

Underside view of the class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105) showing support legs

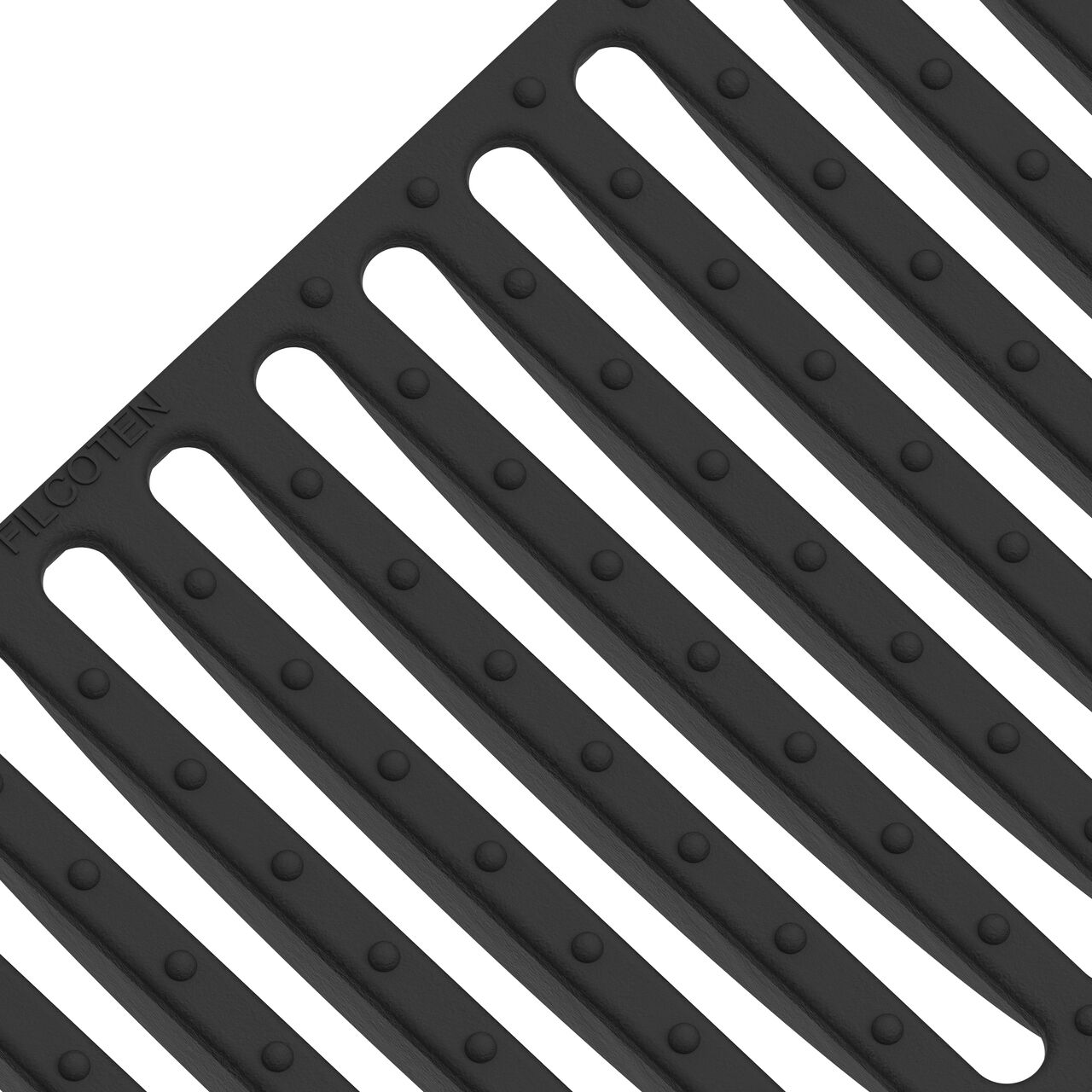

Top down closeup view of class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105)
The class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105) installed on the Filcoten 200 Trench Drain with female end showing
The class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105) fits the 8 in. NDS BG-FILCOTEN® pro V 200 Trench Drain
Angled view of the class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105)
Closeup view of the class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105) installed on the Filcoten 200 Trench Drain with female end showing
Top Down of entire design of the class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105)
Closeup view of the end on the class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105) showing clips
Underside view of the class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105) showing support legs
Top down closeup view of class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105)

Protect the drainage system from clogging with the heavy-duty trench drain grate. This drain cover with bar design is made of ductile iron and rated for NDS Class E loads when properly installed. This grate boasts an open surface area of 150.0 sq. in. per meter and flow rate of 459.5 GPM. Use two half-meter (19.69 in.) grates to cover one BG-FILCOTEN 200 8 in. trench drain. Iron grates are painted black to inhibit rust. Over time, it will form a protective iron-oxide patina.

Where to Buy Find a Pro

Applications:

  • Prevents leaves and debris from entering the drainage system
  • Ideal for factories, warehouses, garages, railway stations, municipal areas, and areas with similar surfaces
  • As part of a complete drainage system, the BG-FILCOTEN® trench drain grate works with the channel drain to capture stormwater runoff and convey it to drain pipe for proper release downstream

Features:

  • Grate is 8.74 in. wide and 19.69 in. long, works with BG-FILCOTEN pro V 200 channels
  • Rated for NDS Class E loads, handles up to 134,800 lbs.
  • Grate is secured to channel body with four-point snap-in locking system
  • Bar design
