BG-FILCOTEN® 300 Trench Drain Inline Catch Basin Kit with 1-Outlet Catch Basin and Trash Bucket

SKU: 10630292

The BG-FILCOTEN® 8 in. pipe connector (NDS 70154) for trench drain catch basins works with the BG-FILCOTEN® 300 Trench Drain Inline Catch Basin Kit (NDS 10630292)
The BG-FILCOTEN® by NDS® 300 Trench Drain Plastic Trash Bucket (NDS 22213) tapered design fits inside the BG-FILCOTEN 300 trench drain inline catch basin
The BG-FILCOTEN® 300 Trench Drain Catch Basin Extension Unit (NDS 19060020) works as a riser for the BG-FILCOTEN® 300 Trench Drain Catch Basin (NDS 10630292); use multiple units to achieve proper height
The BG-FILCOTEN® 8 in. pipe connector (NDS 70154) for trench drain catch basins works with the BG-FILCOTEN® 300 Trench Drain Inline Catch Basin Kit (NDS 10630292)

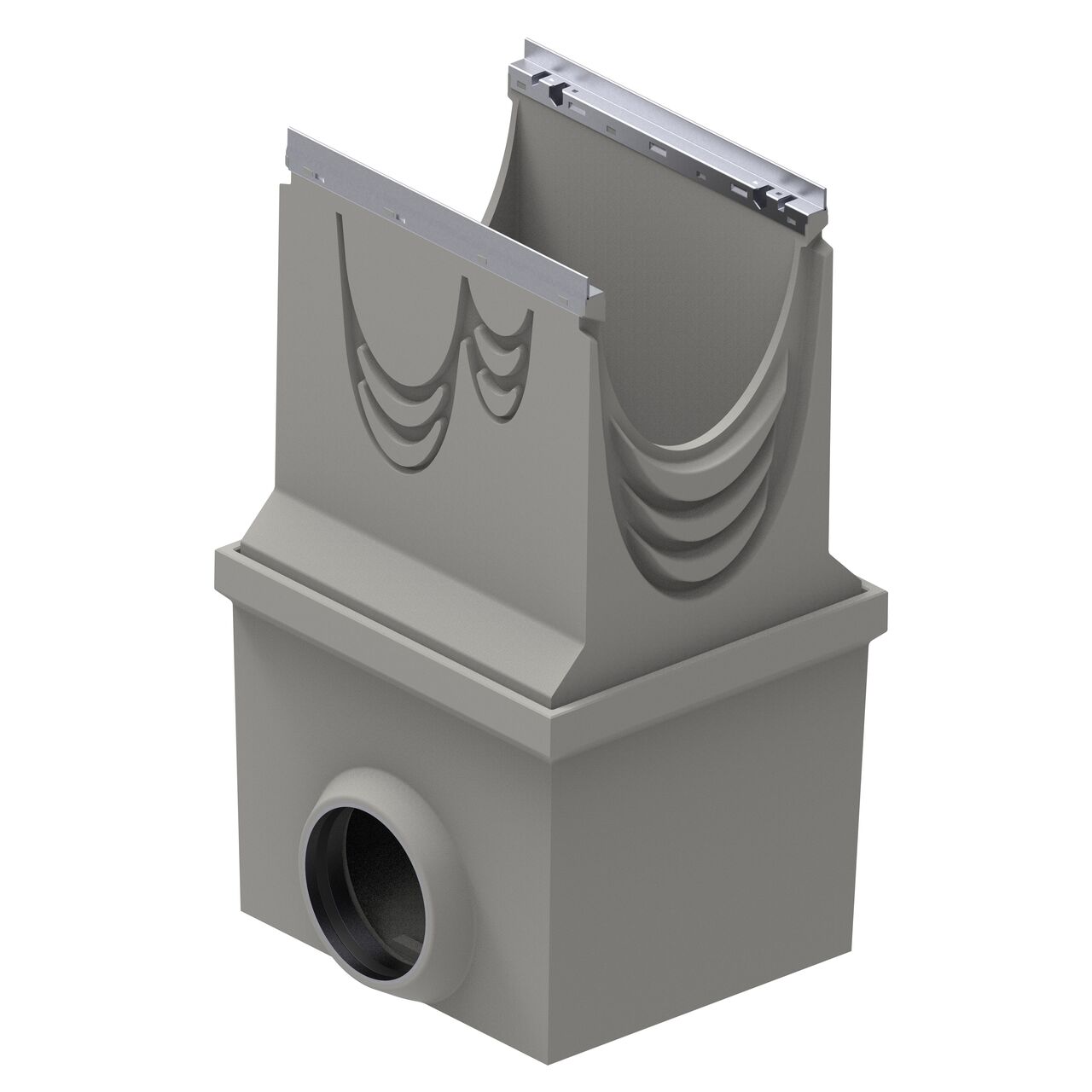

The BG-FILCOTEN® by NDS® 300 Trench Drain Inline Catch Basin Kit with 1-outlet and trash bucket fits all depths of BG-FILCOTEN 300 trench drain line

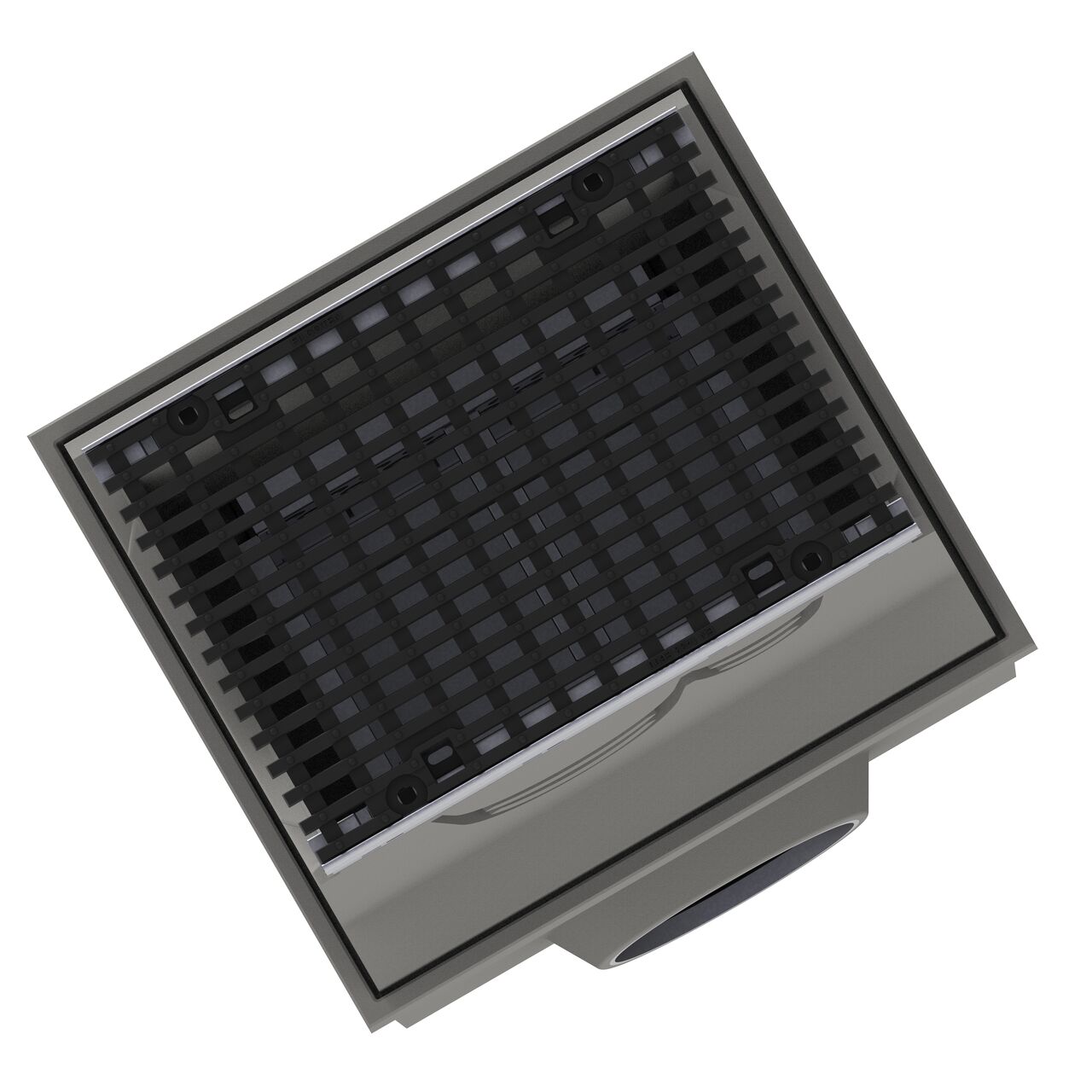

Top down view of the 12 in. BG-FILCOTEN® grate installed on the BG-FILCOTEN® by NDS® 300 Trench Drain Inline Catch Basin Kit

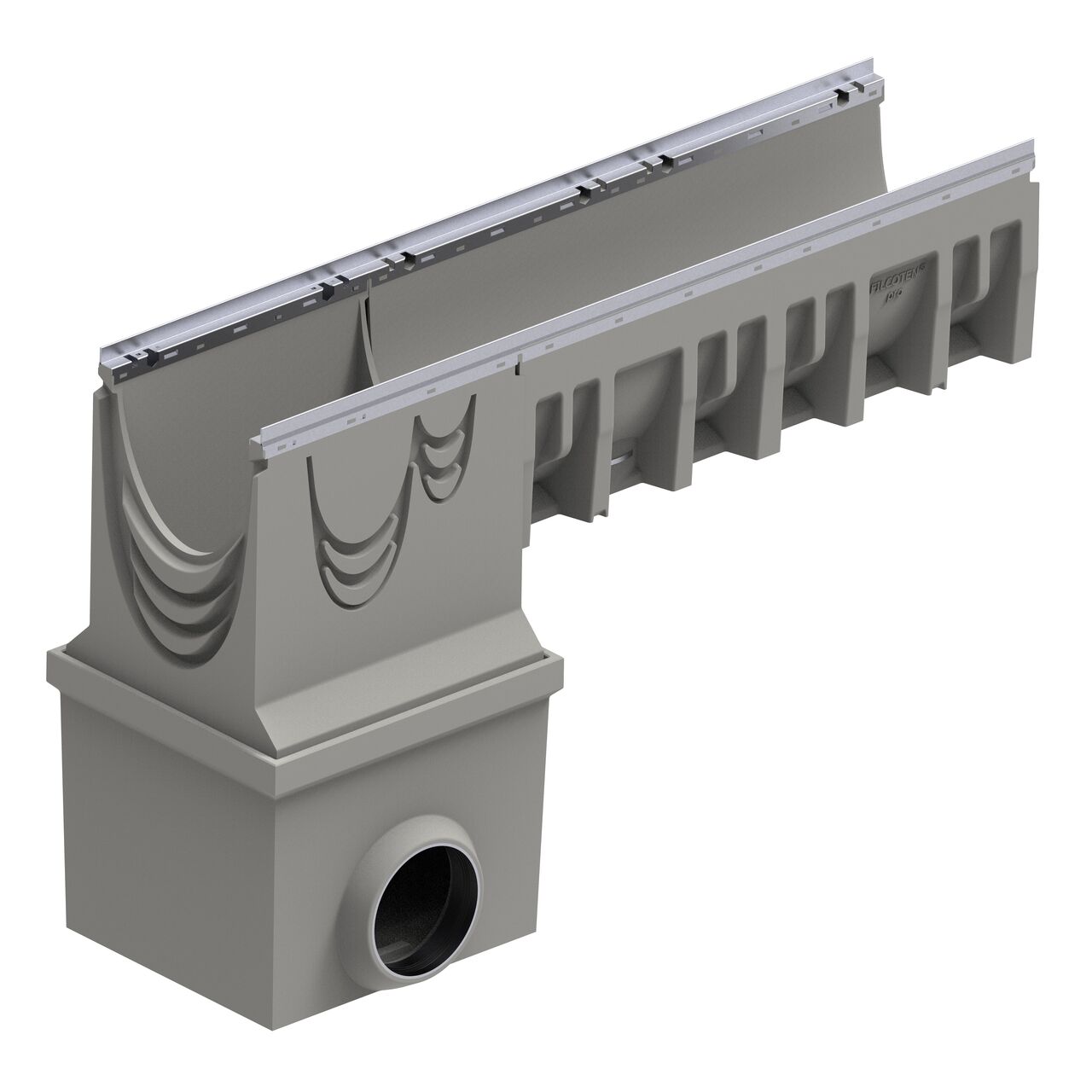

The BG-FILCOTEN® by NDS® 300 Trench Drain Inline Catch Basin Kit with 1-outlet and trash bucket connects alongside BG-FILCOTEN 300 channel

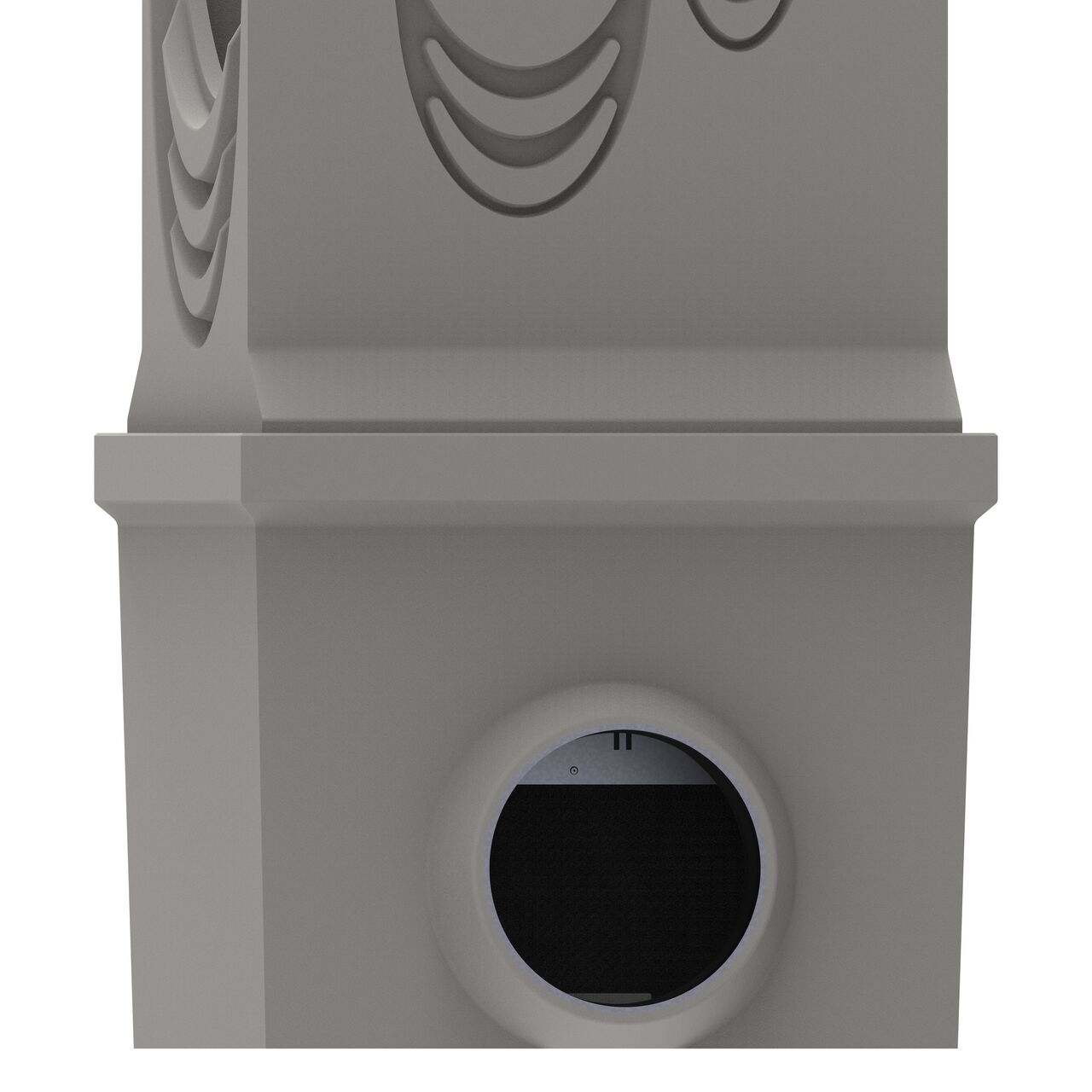

Close up view of the outlet with the trash bucket installed on the BG-FILCOTEN® by NDS® 300 Trench Drain Inline Catch Basin Kit

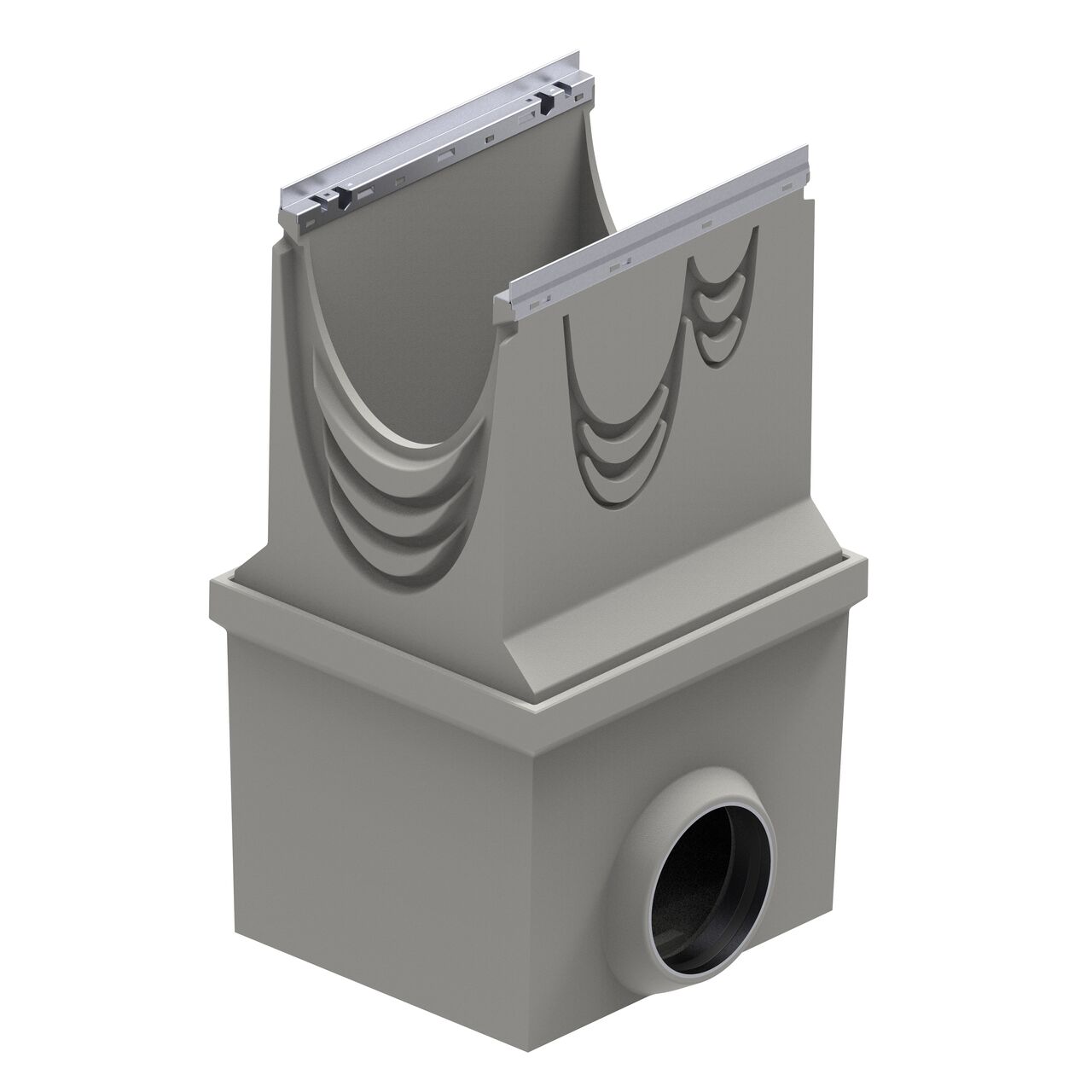

The BG-FILCOTEN® by NDS® 300 Trench Drain Inline Catch Basin Kit with 1-outlet and trash bucket collects debris
The BG-FILCOTEN® 8 in. pipe connector (NDS 70154) for trench drain catch basins works with the BG-FILCOTEN® 300 Trench Drain Inline Catch Basin Kit (NDS 10630292)
The BG-FILCOTEN® by NDS® 300 Trench Drain Plastic Trash Bucket (NDS 22213) tapered design fits inside the BG-FILCOTEN 300 trench drain inline catch basin
The BG-FILCOTEN® 300 Trench Drain Catch Basin Extension Unit (NDS 19060020) works as a riser for the BG-FILCOTEN® 300 Trench Drain Catch Basin (NDS 10630292); use multiple units to achieve proper height
The BG-FILCOTEN® 8 in. pipe connector (NDS 70154) for trench drain catch basins works with the BG-FILCOTEN® 300 Trench Drain Inline Catch Basin Kit (NDS 10630292)
The BG-FILCOTEN® by NDS® 300 Trench Drain Inline Catch Basin Kit with 1-outlet and trash bucket fits all depths of BG-FILCOTEN 300 trench drain line
Top down view of the 12 in. BG-FILCOTEN® grate installed on the BG-FILCOTEN® by NDS® 300 Trench Drain Inline Catch Basin Kit
The BG-FILCOTEN® by NDS® 300 Trench Drain Inline Catch Basin Kit with 1-outlet and trash bucket connects alongside BG-FILCOTEN 300 channel
Close up view of the outlet with the trash bucket installed on the BG-FILCOTEN® by NDS® 300 Trench Drain Inline Catch Basin Kit
The BG-FILCOTEN® by NDS® 300 Trench Drain Inline Catch Basin Kit with 1-outlet and trash bucket collects debris

Protect the drainage system from debris floating in draining water with the Inline Catch Basin Kit. This kit works with BG-FILCOTEN® 300 trench drains. It includes a one-outlet catch basin with galvanized steel rails and trash bucket. Place the catch basin between channels or at the end of the channel run. Removable trash bucket collects debris and is easy to clean. Basin has an 8 in. outlet. Use the 8 in. pipe connector (70154, sold separately) to connect to 8 in. DWV pipe.

Where to Buy Find a Pro

Applications:

  • Captures debris in collected water that can enter and potentially clog the drain system
  • Use between channels or at the end of the channel drain run to outlet to drain pipe
  • As part of a complete drainage system, the BG-FILCOTEN 300 Trench Drain Inline Catch Basin captures debris that can potentially clog the drain system, outlet requires pipe connector to connect to drain pipe

Features:

  • Fits all depth ranges of the BG-FILCOTEN 300 trench drain line
  • Removable trash bucket makes it easy to clean out debris
  • 8 in. outlet requires 8 in. Pipe Connector to connect to 8 in. DWV pipe
  • Made to fit 19.69 in. long trench drain grate
