BG-FILCOTEN® pro V 300 Trench Drains

The BG-FILCOTEN® pro V  300 high-performance concrete trench drain is a modular drainage system that consists of constant depth and sloped channel sections. Features 12 in. wide channels with galvanized steel rails.

Where to Buy

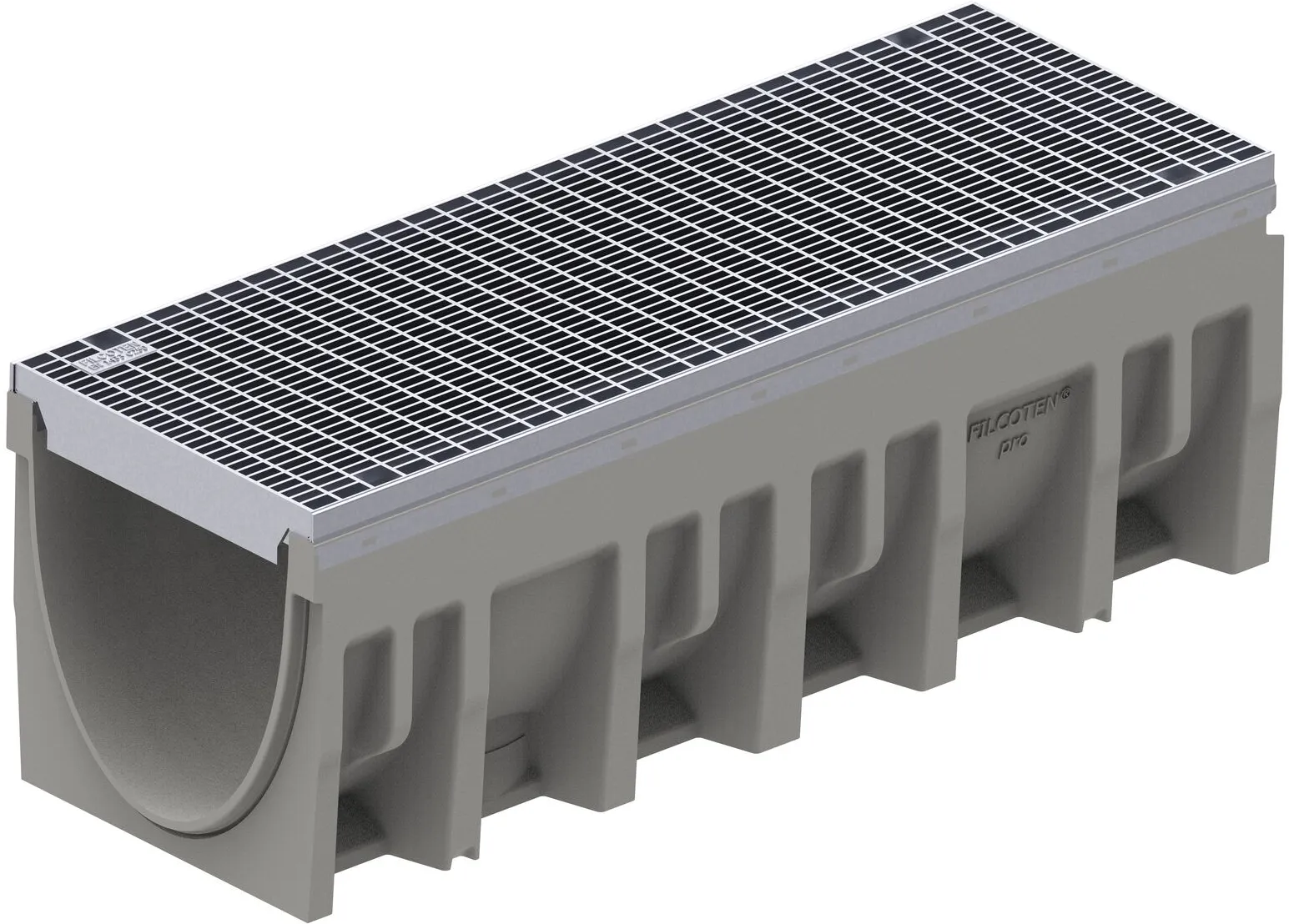

The BG-FILCOTEN® by NDS® pro V 300 Trench Channel Drain with Galvanized Steel Rails with a one 1 miter galvanized steel grate with mesh design installed (NDS 10630200, NDS 17030222)
Where to Buy

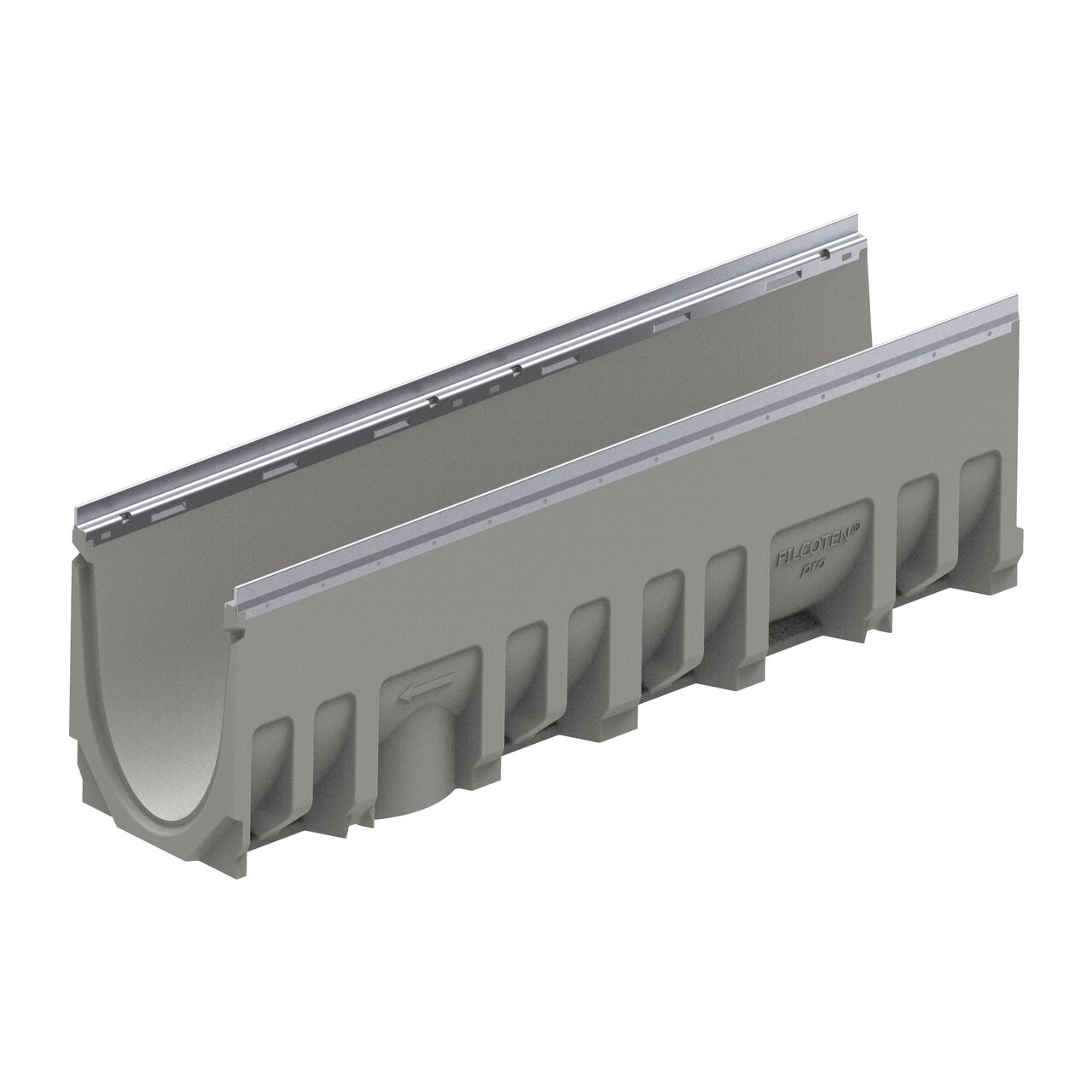

The female interlocking end of the constant depth channel 10-0 BG-FILCOTEN® by NDS® pro V 200 Trench Channel Drain with Galvanized Steel Rails, an 8 in. wide trench drain with high-load capacity made of high-performance concrete (HPC)

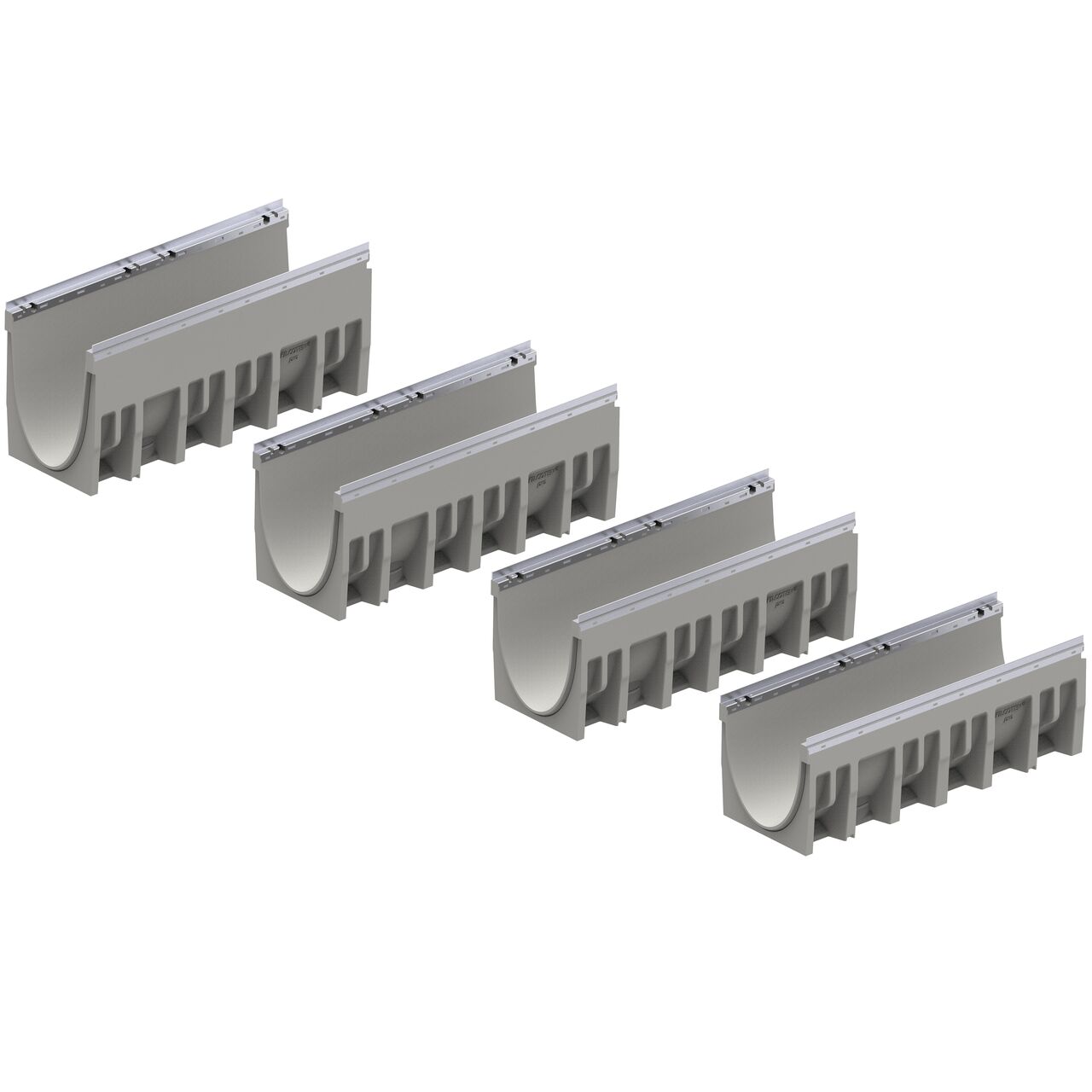

The 12 in. wide BG-FILCOTEN® by NDS® pro V 300 Trench Channel Drain with Galvanized Steel Rails comes in multiple channel depths in both constant depth and sloped channel sections (NDS 10630200)

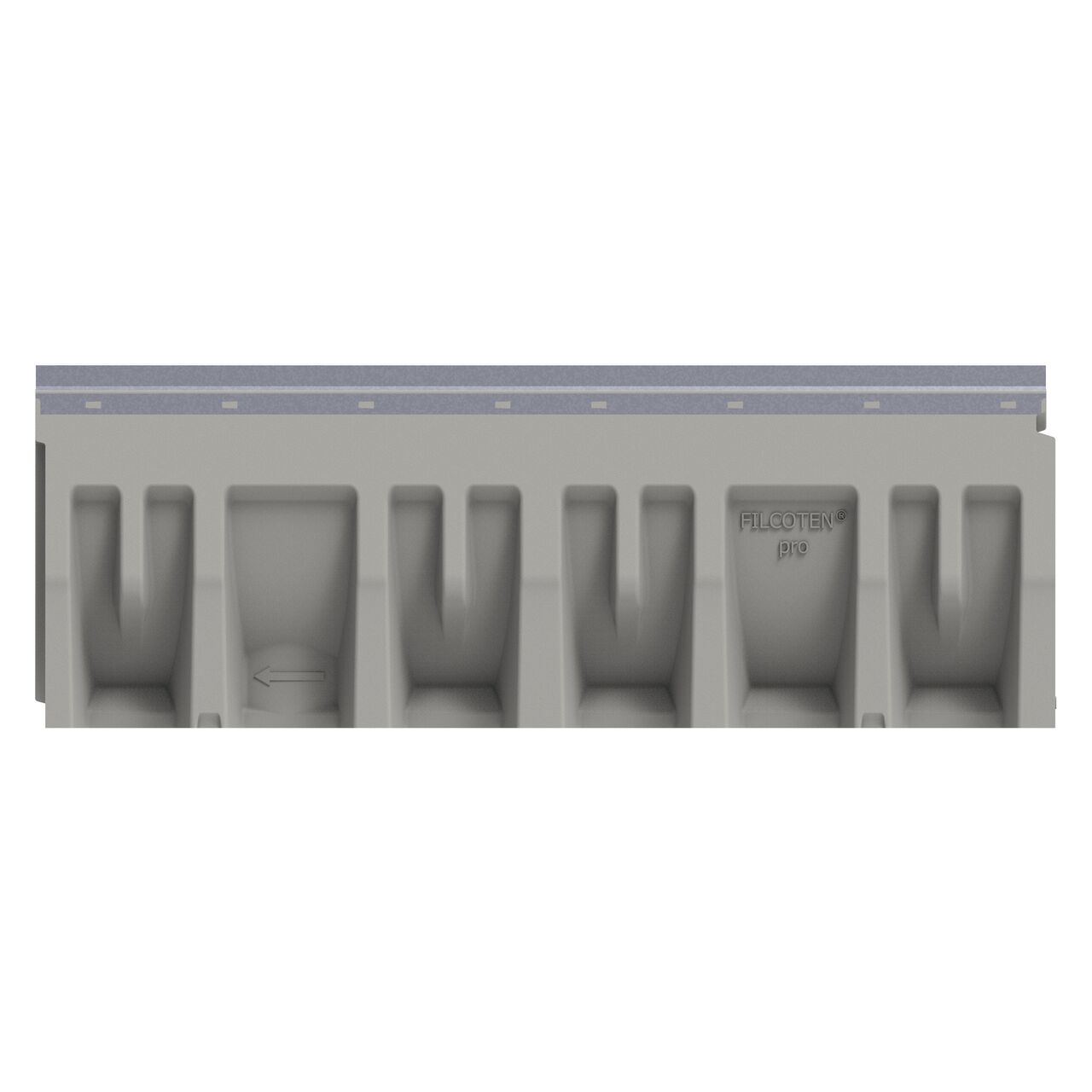

Side view of the 12 in. BG-FILCOTEN® by NDS® pro V 300 Trench Channel Drain with Galvanized Steel Rails

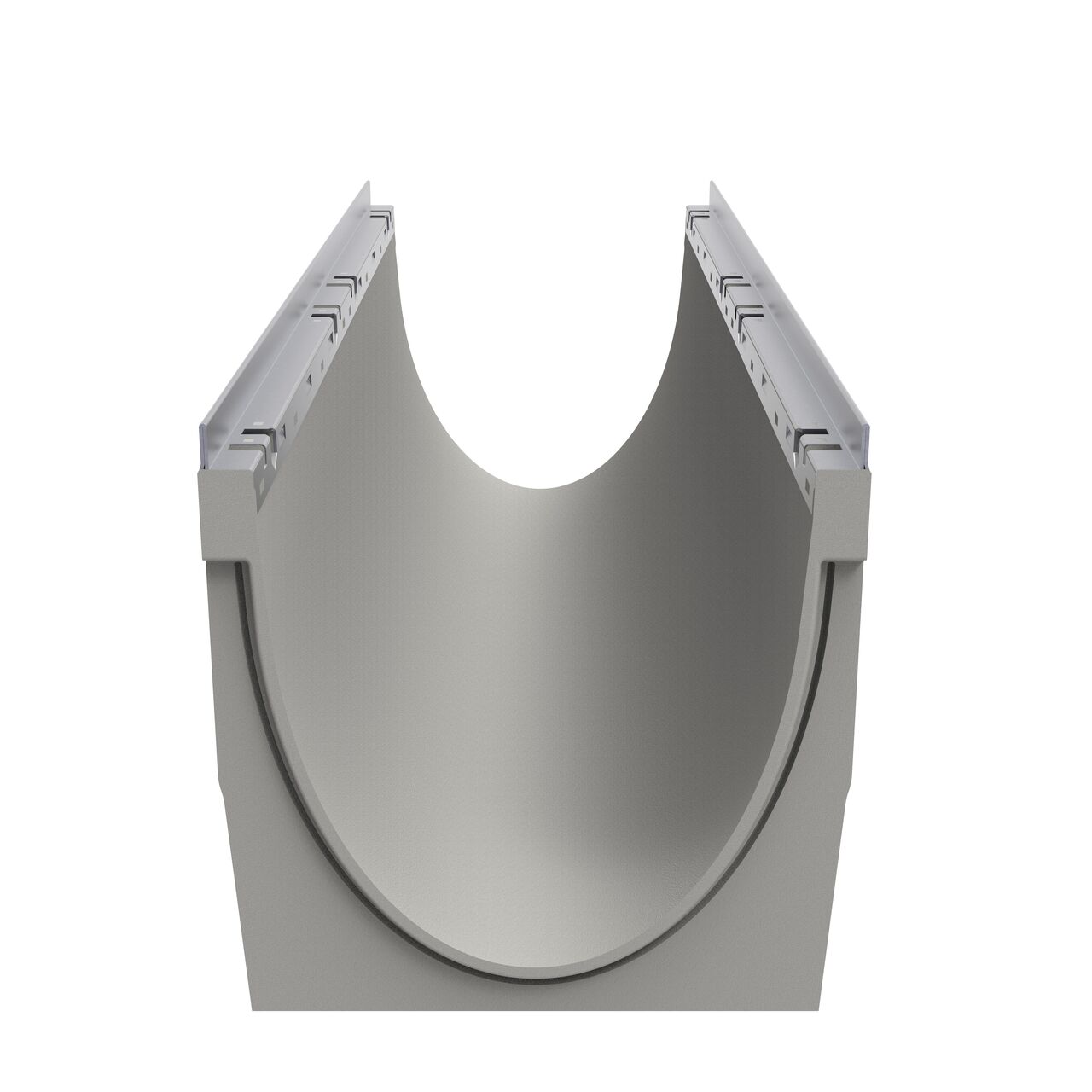

The smooth interior channel reduces turbulence and enables a self-cleaning effect on the BG-FILCOTEN® by NDS® pro V 300 Trench Channel Drain with Galvanized Steel Rails shown from the female interlocking end
The female interlocking end of the constant depth channel 10-0 BG-FILCOTEN® by NDS® pro V 200 Trench Channel Drain with Galvanized Steel Rails, an 8 in. wide trench drain with high-load capacity made of high-performance concrete (HPC)
The 12 in. wide BG-FILCOTEN® by NDS® pro V 300 Trench Channel Drain with Galvanized Steel Rails comes in multiple channel depths in both constant depth and sloped channel sections (NDS 10630200)
Side view of the 12 in. BG-FILCOTEN® by NDS® pro V 300 Trench Channel Drain with Galvanized Steel Rails
The smooth interior channel reduces turbulence and enables a self-cleaning effect on the BG-FILCOTEN® by NDS® pro V 300 Trench Channel Drain with Galvanized Steel Rails shown from the female interlocking end

Key Features

  • Built with world-class craftsmanship, the BG-FILCOTEN drain combines the reliability of stable concrete with the strength and durability of high-performance concrete
  • Channel is lighter than most conventional concrete channels for lower transport costs, easier handling, and faster installation; handles high-load capacity
  • Channels are available with constant or sloped depth; smooth interior channel reduces turbulence and enables a self-cleaning effect
  • Customize with grates available in a variety of materials and styles such as perforated, bar, and decorative designs
  • Optimize the drainage system with accessories such as the inline catch basin kit, trash bucket, bottom outlet, end cap, and end outlet

Applications

  • Ideal for factories, warehouses, garages, railway stations, municipal areas, and areas with similar surfaces
  • Channel drains and trench drains are ideal for hardscapes to prevent mildew growth, concrete staining, and costly damage by capturing and conveying excess water for proper release downstream
  • As part of a complete drainage system, the BG-FILCOTEN® trench drain works with drain grates and accessories to capture stormwater runoff and convey it to drain pipe for proper release downstream

Installation & Maintenance

  • Sections connect together with interlocking tongue and groove joints
  • Crafted with flat sides for flush installations against buildings
  • Anti-sliding lugs provide stability against longitudinal sliding
  • Anchoring ribs support the channel and increase the surface area for better adhesion to surrounding concrete
  1. Check the drain grate and clear debris from grate openings
  2. Remove grate to inspect inside the trench drain
  3. Check drain pipes connected to the trench drain and clear any obstructions

Materials & Sustainability

  • Channel is made of high-performance concrete
  • Country of origin: Austria

Product Models

Filter results
Family
Color
Shape

42 products

    Part Number
    (click for more info)    		 Description
    70154 BG-FILCOTEN® 200 and 300 Trench Drain 8 in. Pipe Connector for Catch Basin, PVC
    19021208 BG-FILCOTEN® 200 and 300 Trench Drain Bottom Outlet, Galvanized Steel
    19060020 BG-FILCOTEN® 300 Trench Drain Catch Basin Extension Unit, High-Performance Concrete
    19030290 BG-FILCOTEN® 300 Trench Drain End Cap Connector for Inline Catch Basin, Galvanized Steel
    19030213 BG-FILCOTEN® 300 Trench Drain End Cap, Galvanized Steel
    19030214 BG-FILCOTEN® 300 Trench Drain End Outlet, Galvanized Steel
    17030103 BG-FILCOTEN® 300 Trench Drain Grate, 13.66 in. Wide X 19.69 in. Long, Bar Design, NDS Class E Load, Ductile Iron
    17030183 BG-FILCOTEN® 300 Trench Drain Grate, 13.66 in. Wide X 19.69 in. Long, Decorative Kiaro Slot Design, NDS Class D Load, Ductile Iron
    17030184 BG-FILCOTEN® 300 Trench Drain Grate, 13.66 in. Wide X 19.69 in. Long, Decorative Via Slot Design, NDS Class D Load, Ductile Iron
    17030180 BG-FILCOTEN® 300 Trench Drain Grate, 13.66 in. Wide X 19.69 in. Long, Decorative Ville Slot Design, NDS Class E Load, Ductile Iron
    17030223 BG-FILCOTEN® 300 Trench Drain Grate, 13.66 in. Wide X 19.69 in. Long, Mesh Design, NDS Class C Load, Galvanized Steel
    17030222 BG-FILCOTEN® 300 Trench Drain Grate, 13.66 in. Wide X 39.37 in. Long, Mesh Design, NDS Class C Load, Galvanized Steel
    10630292 BG-FILCOTEN® 300 Trench Drain Inline Catch Basin Kit with 1-Outlet Catch Basin and Trash Bucket
    19030929 BG-FILCOTEN® 300 Trench Drain Rebar Support, Galvanized Steel
    19030295 BG-FILCOTEN® 300 Trench Drain Step Connector Plate, Galvanized Steel
    22213 BG-FILCOTEN® 300 Trench Drain Trash Bucket, Plastic
    10630200 BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 12.79 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 14.17 in. Deep, Constant Depth Channel 0
    10630201 BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 12.79 in. to 12.99 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 14.37 in. Deep, Sloped Channel 1
    10630202 BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 12.99 in. to 13.19 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 14.57 in. Deep, Sloped Channel 2
    10630203 BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 13.19 in. to 13.38 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 14.76 in. Deep, Sloped Channel 3
    10630204 BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 13.38 in. to 13.58 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 14.96 in. Deep, Sloped Channel 4
    10630205 BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 13.58 in. to 13.78 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 15.15 in. Deep, Sloped Channel 5
    10630261 BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 13.78 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 15.15 in. Deep, Constant Depth Channel 5-0
    10630206 BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 13.78 in. to 13.98 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 15.35 in. Deep, Sloped Channel 6
    10630207 BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 13.98 in. to 14.17 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 15.55 in. Deep, Sloped Channel 7
    10630208 BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 14.17 in. to 14.37 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 15.75 in. Deep, Sloped Channel 8
    10630209 BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 14.37 in. to 14.57 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 15.94 in. Deep, Sloped Channel 9
    10630210 BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 14.57 in. to 14.76 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 16.14 in. Deep, Sloped Channel 10
    10630262 BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 14.76 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 16.14 in. Deep, Constant Depth Channel 10-0
    10630211 BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 14.76 in. to 14.96 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 16.34 in. Deep, Sloped Channel 11
    10630212 BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 14.96 in. to 15.16 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 16.54 in. Deep, Sloped Channel 12
    10630213 BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 15.16 in. to 15.35 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 16.73 in. Deep, Sloped Channel 13
    10630214 BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 15.35 in. to 15.55 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 16.93 in. Deep, Sloped Channel 14
    10630215 BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 15.55 in. to 15.75 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 17.13 in. Deep, Sloped Channel 15
    10630216 BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 15.75 in. to 15.94 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 17.32 in. Deep, Sloped Channel 16
    10630217 BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 15.94 in. to 16.14 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 17.52 in. Deep, Sloped Channel 17
    10630218 BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 16.14 in. to 16.34 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 17.72 in. Deep, Sloped Channel 18
    10630219 BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 16.34 in. to 16.54 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 17.91 in. Deep, Sloped Channel 19
    10630220 BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 16.54 in. to 16.73 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 18.11 in. Deep, Sloped Channel 20
    10630264 BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 16.73 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 18.11 in. Deep, Constant Depth Channel 20-0
    32110 Bolt and Nut for Locking BG-FILCOTEN® 300 12 in. Trench Drain Ductile Iron Grate
    32112 Bolt and Nut for Locking BG-FILCOTEN® 300 12 in. Trench Drain Galvanized Steel Grate with Mesh Design
