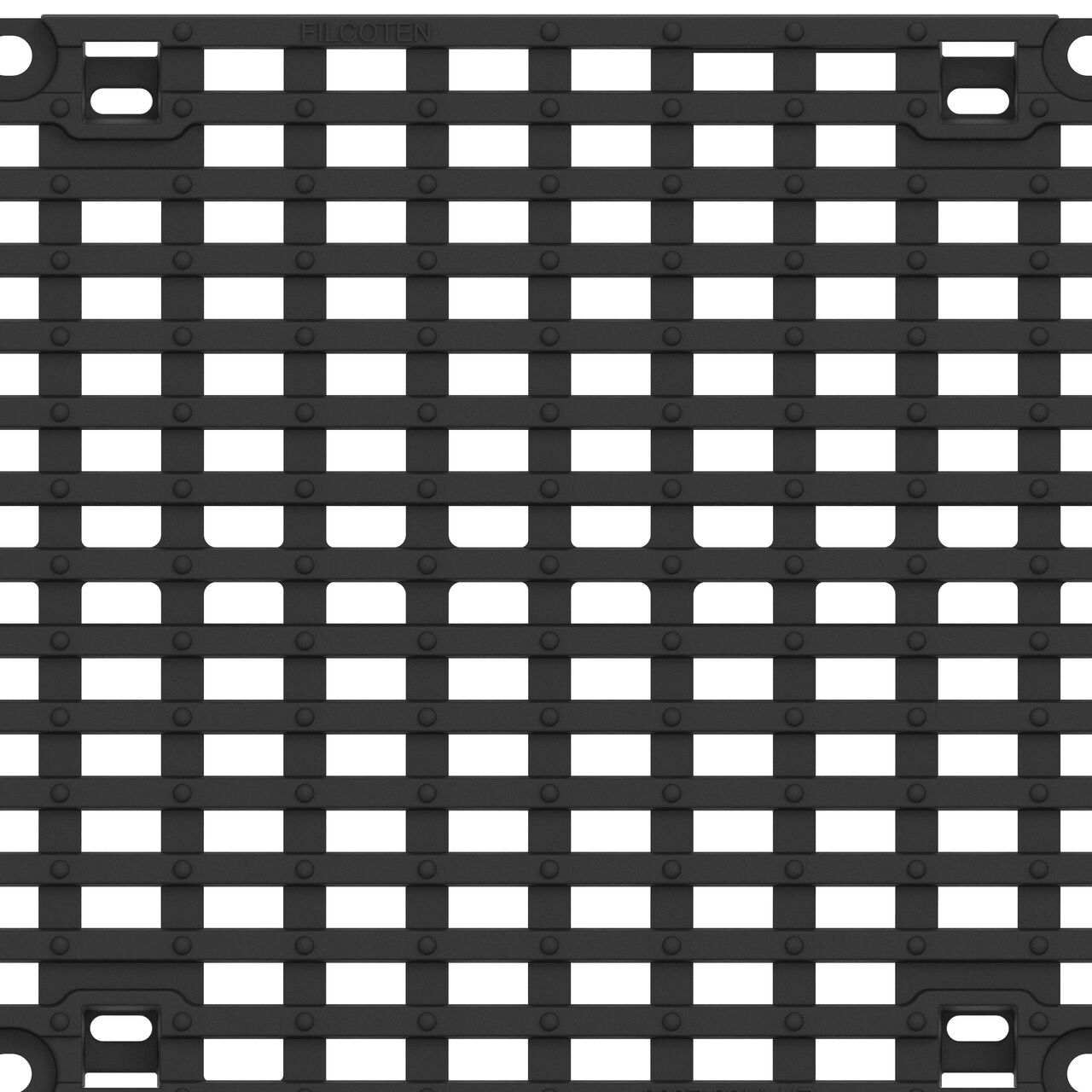

BG-FILCOTEN® 300 Trench Drain Grate, 13.66 in. Wide X 19.69 in. Long, Bar Design, NDS Class E Load, Ductile Iron
SKU: 17030103
Block pipe-clogging leaves and debris from entering the drainage system with the trench drain grate. This ductile iron grate features a bar design and is rated for NDS Class E loads when properly installed. The ductile iron drain cover has an open surface area of 227.0 sq. in. per meter and flow rate of 695.6 GPM per meter. Two half-meter (19.69 in.) grates will cover one BG-FILCOTEN 300 12 in. trench drain. Iron grates are painted black to inhibit rust. Over time, it will form a protective iron-oxide patina.
Applications:
- Prevents leaves and debris from entering the drainage system
- Ideal for factories, warehouses, garages, railway stations, municipal areas, and areas with similar surfaces
- As part of a complete drainage system, the BG-FILCOTEN® trench drain grate works with the channel drain to capture stormwater runoff and convey it to drain pipe for proper release downstream
Features:

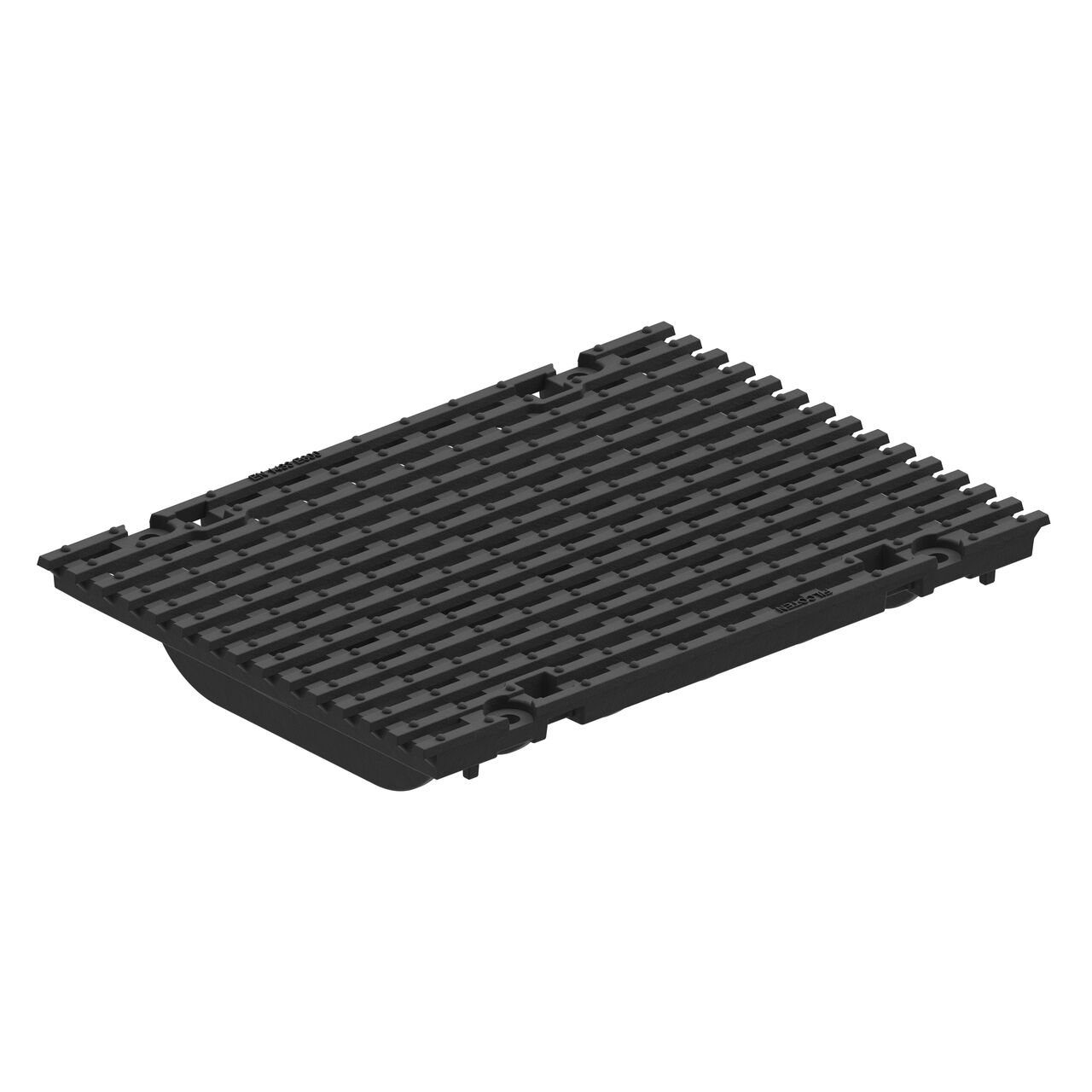

- Grate is 13.66 in. wide and 19.69 in. long, works with BG-FILCOTEN pro V 300 channels
- Rated for NDS Class E loads, handles up to 134,800 lbs.
- Grate is secured to channel body with four-point snap-in locking system
- Bar design
