BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 4.72 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 5.31 in. Deep, Constant Depth Channel 0

SKU: 10410200

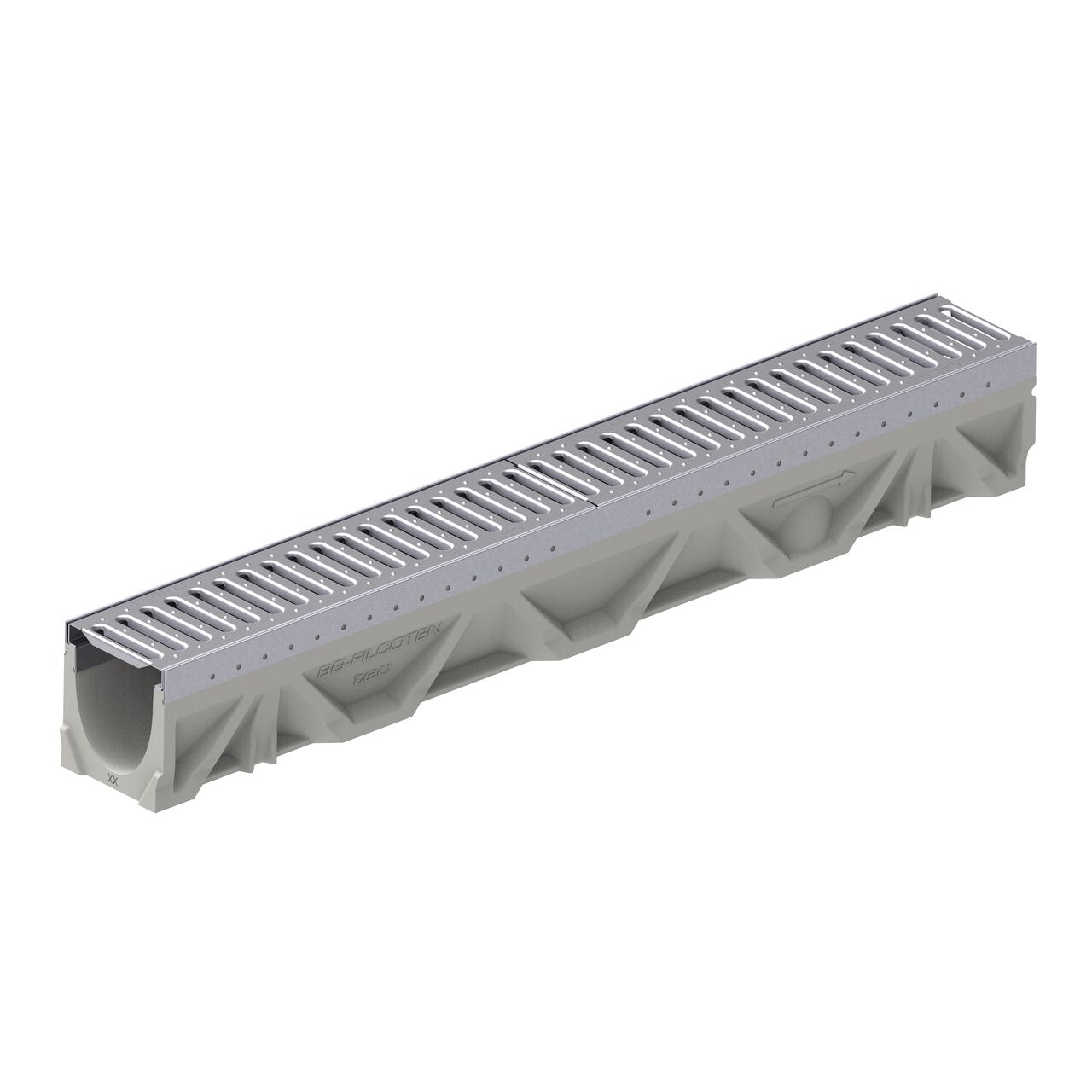

The male interlocking end of the BG-FILCOTEN® by NDS® tec V or E 100 Trench Channel Drain with two 1/2 miter metal grates with slotted design installed (NDS 10410200, NDS 17010207)

Closeup view of the male interlocking end of the BG-FILCOTEN® by NDS® tec V/E 100 Trench Channel Drain

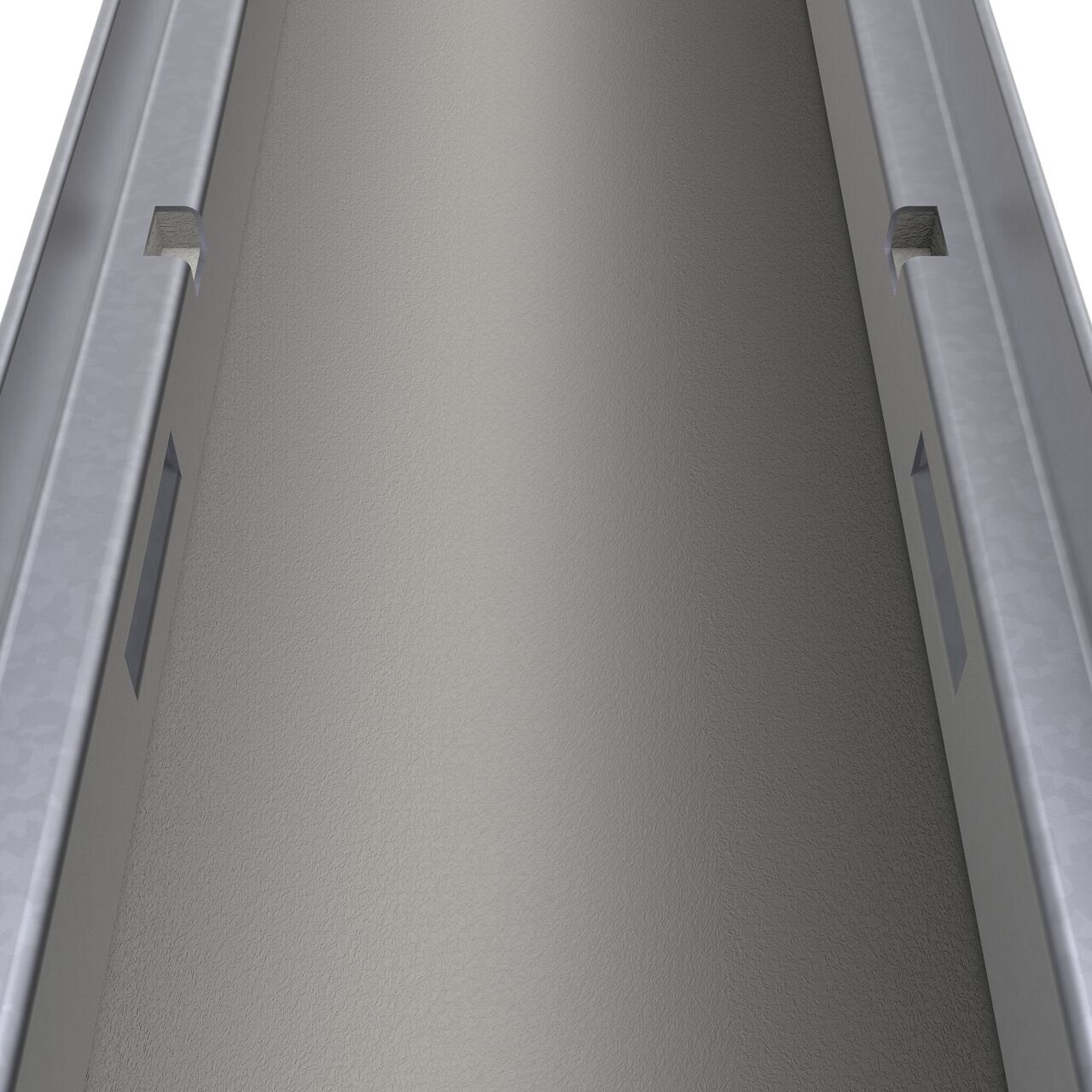

Closeup view of the rails and grate locking system on the BG-FILCOTEN® by NDS® tec V and tec E Trench Drains

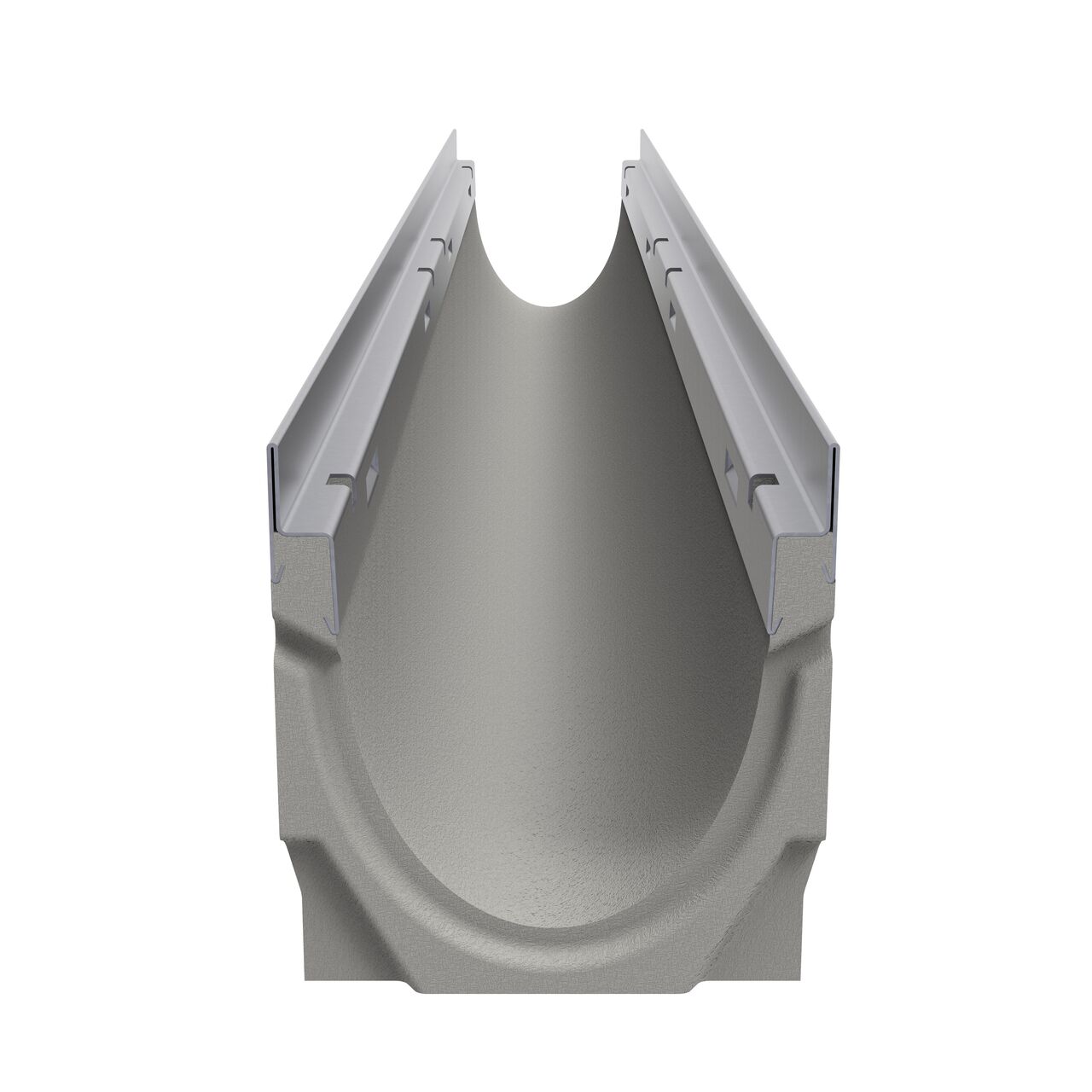

The smooth interior channel reduces turbulence and enables a self-cleaning effect on the BG-FILCOTEN® by NDS® tec V/E 100 Trench Drain shown from the female interlocking end

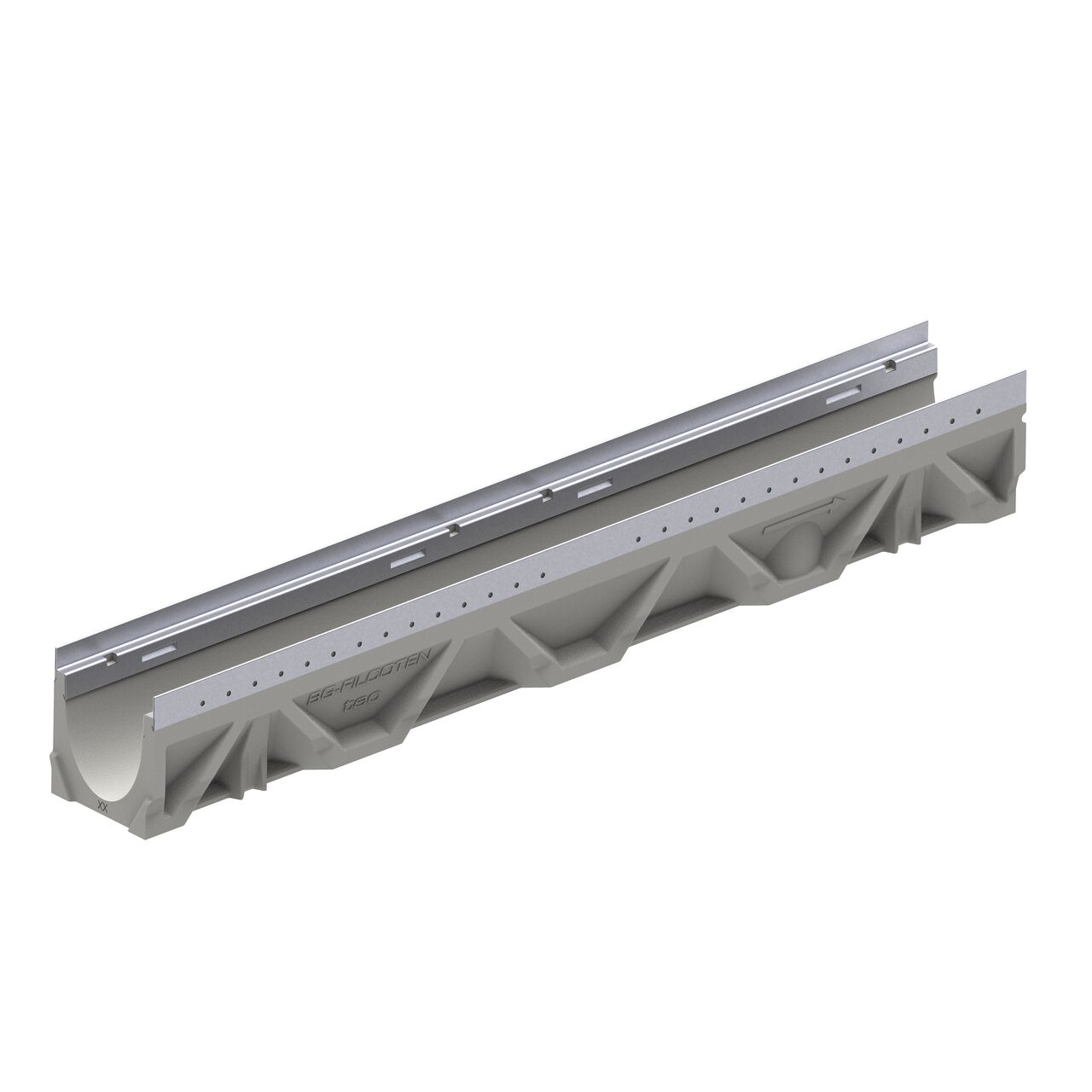

BG-FILCOTEN® by NDS® tec V/E 100 Trench Channel Drain with steel rails (NDS 10410200) is made of high-performance concrete (HPC) which is lighter than most conventional concrete channels for lower transport costs, easier handling, and faster installation shown here with the male interlocking end in front

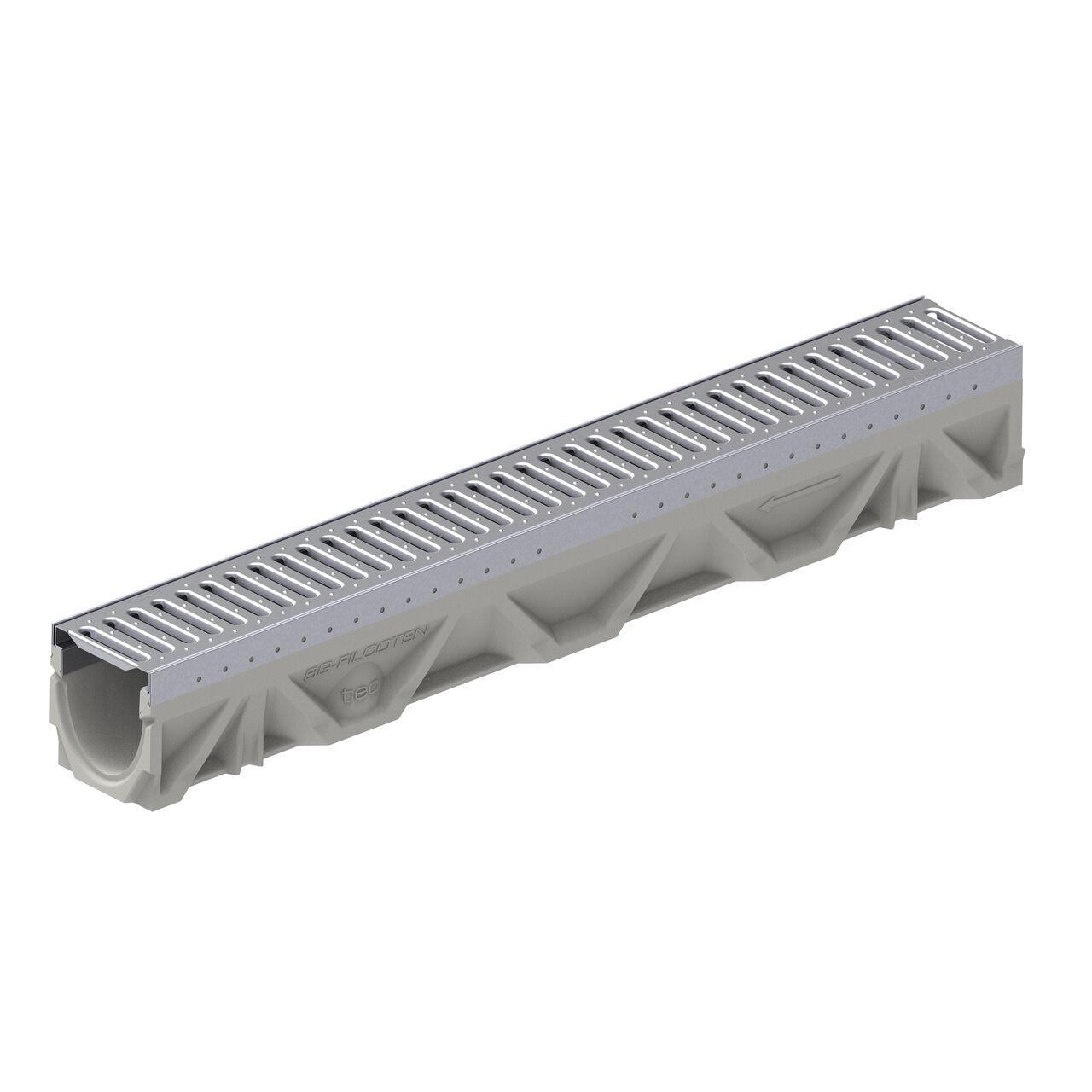

The BG-FILCOTEN® by NDS® tec V or E 100 Trench Channel Drain with a one 1 miter metal grate with slotted design installed (NDS 10410200, NDS 17010206)

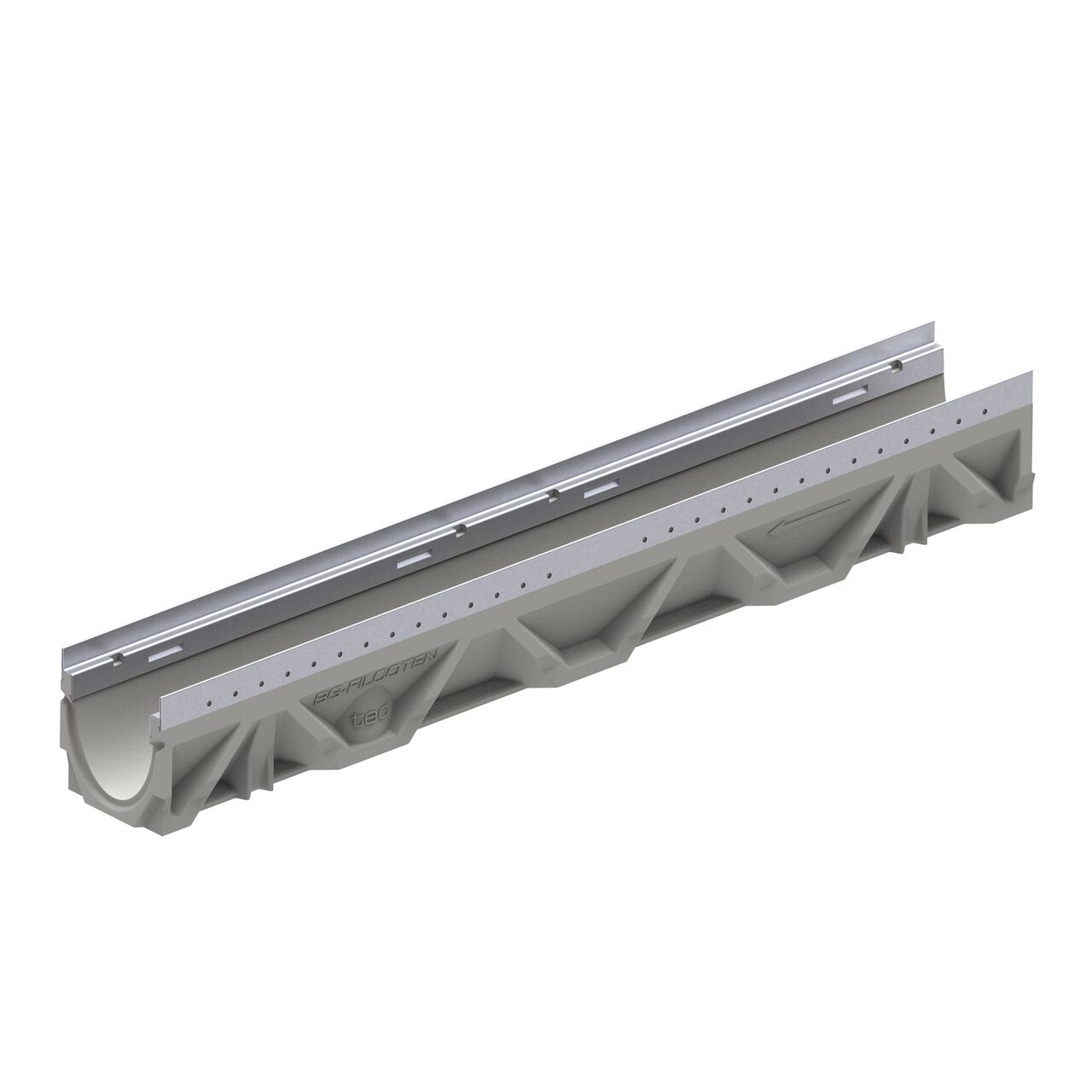

The female interlocking end of the BG-FILCOTEN® by NDS® tec V 100 Trench Drain with Galvanized Steel Rails, a 4 in. wide trench drain with high-load capacity made of high-performance concrete (HPC)

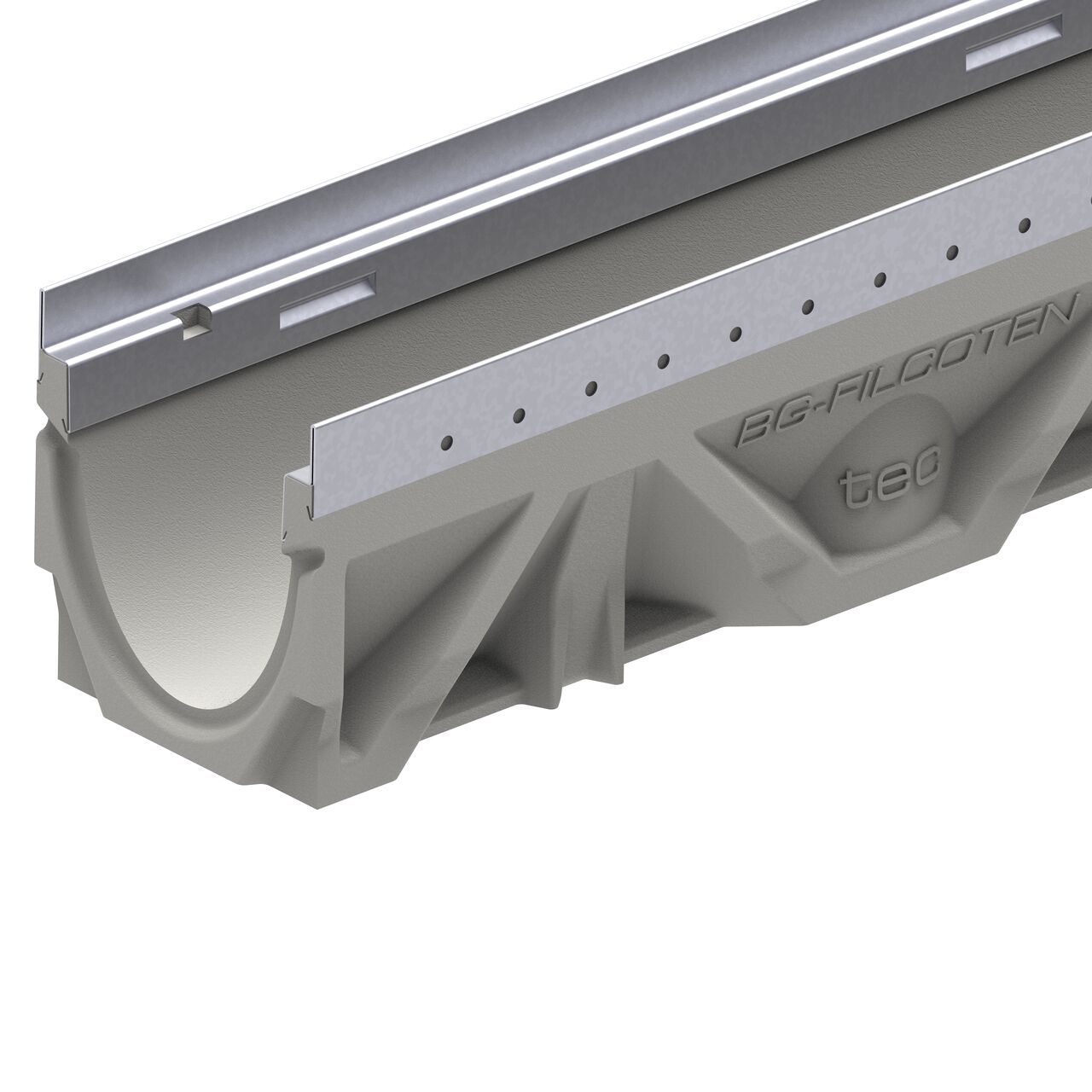

Closeup view of the female interlocking end of the BG-FILCOTEN® by NDS® tec V/E 100 Trench Channel Drain

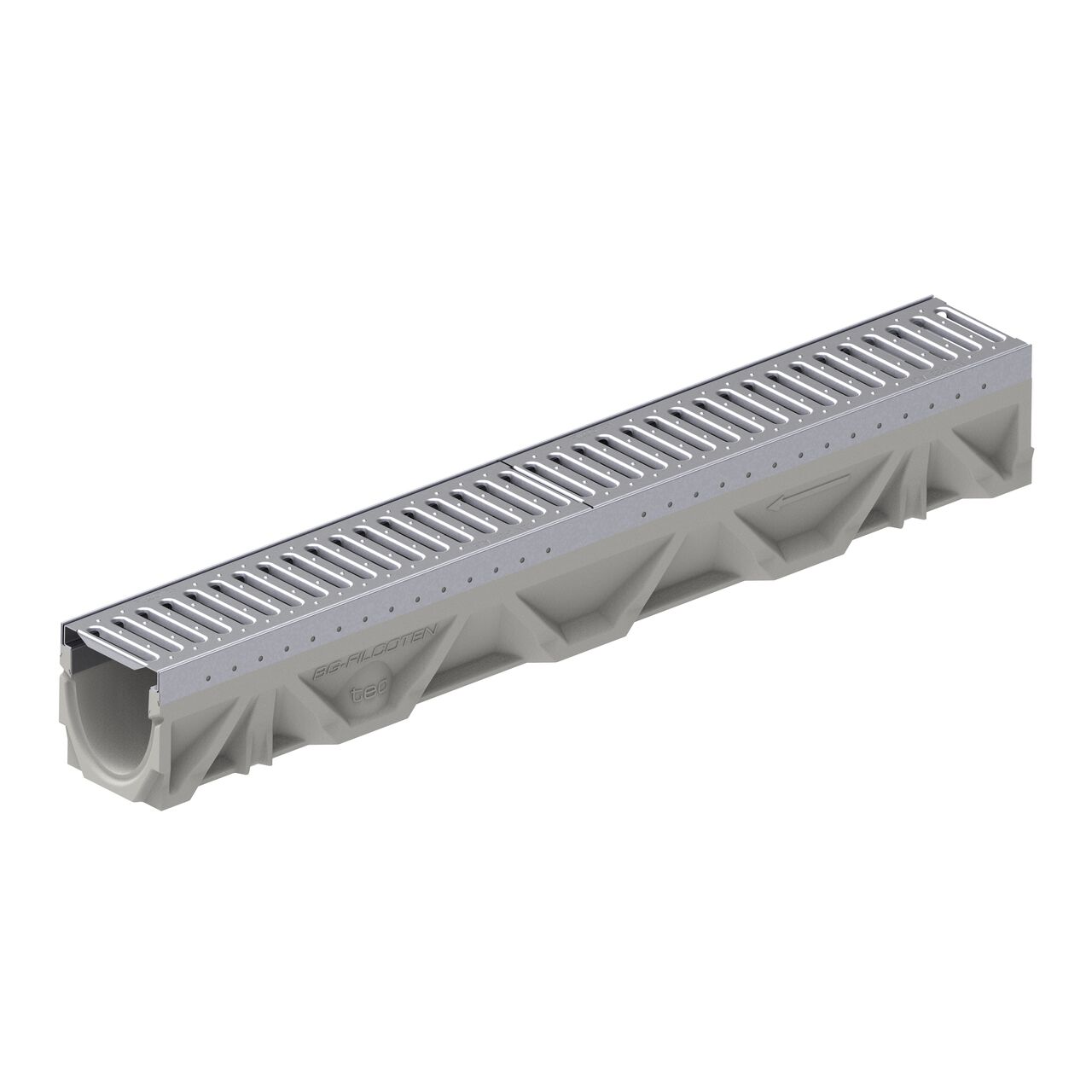

The female interlocking end of the BG-FILCOTEN® by NDS® tec V or E 100 Trench Channel Drain with two 1/2 miter metal grates with slotted design installed (NDS 10410200, NDS 17010207)

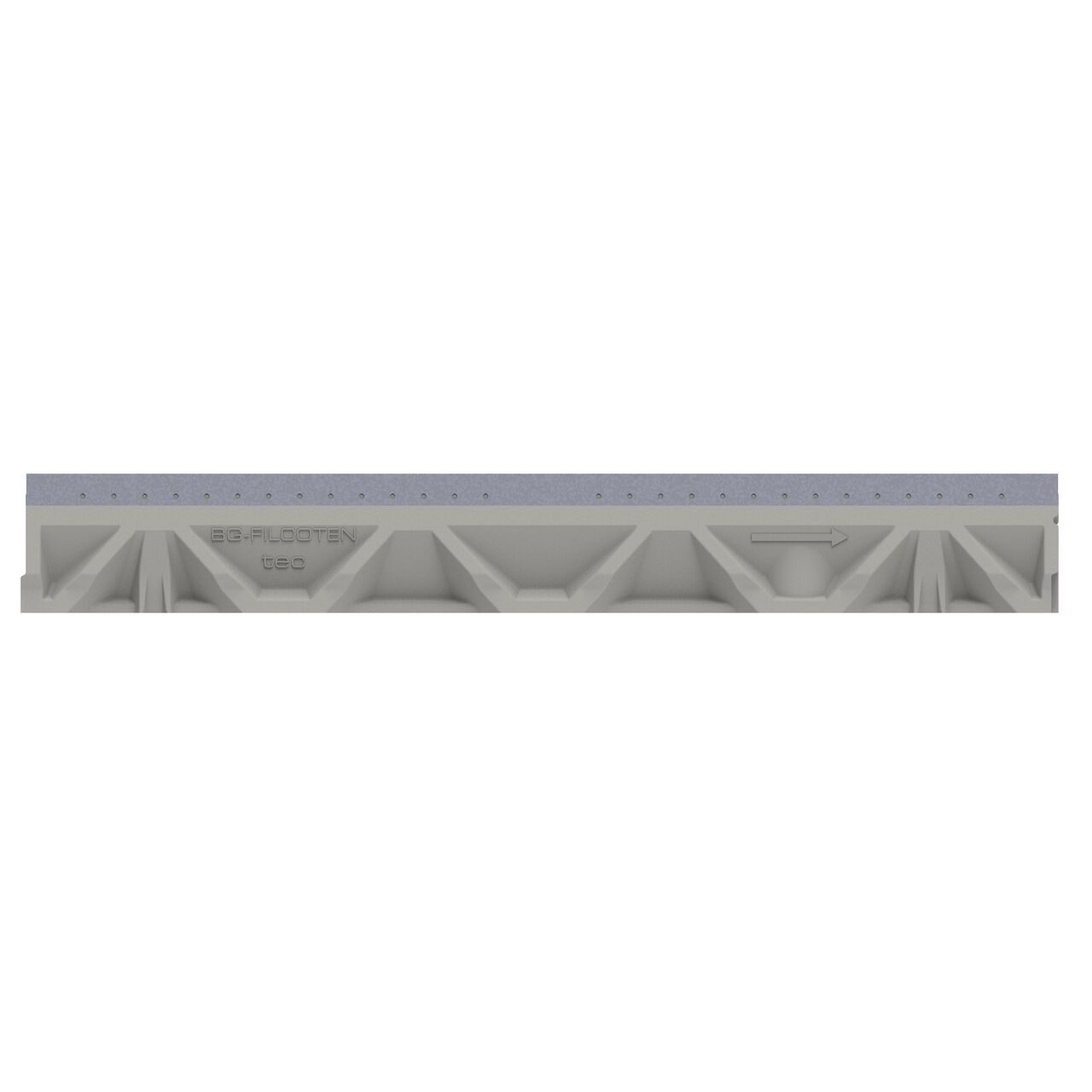

Side view of the BG-FILCOTEN® by NDS® tec V/E 100 Trench Drain 0 Channel (NDS 10410200)

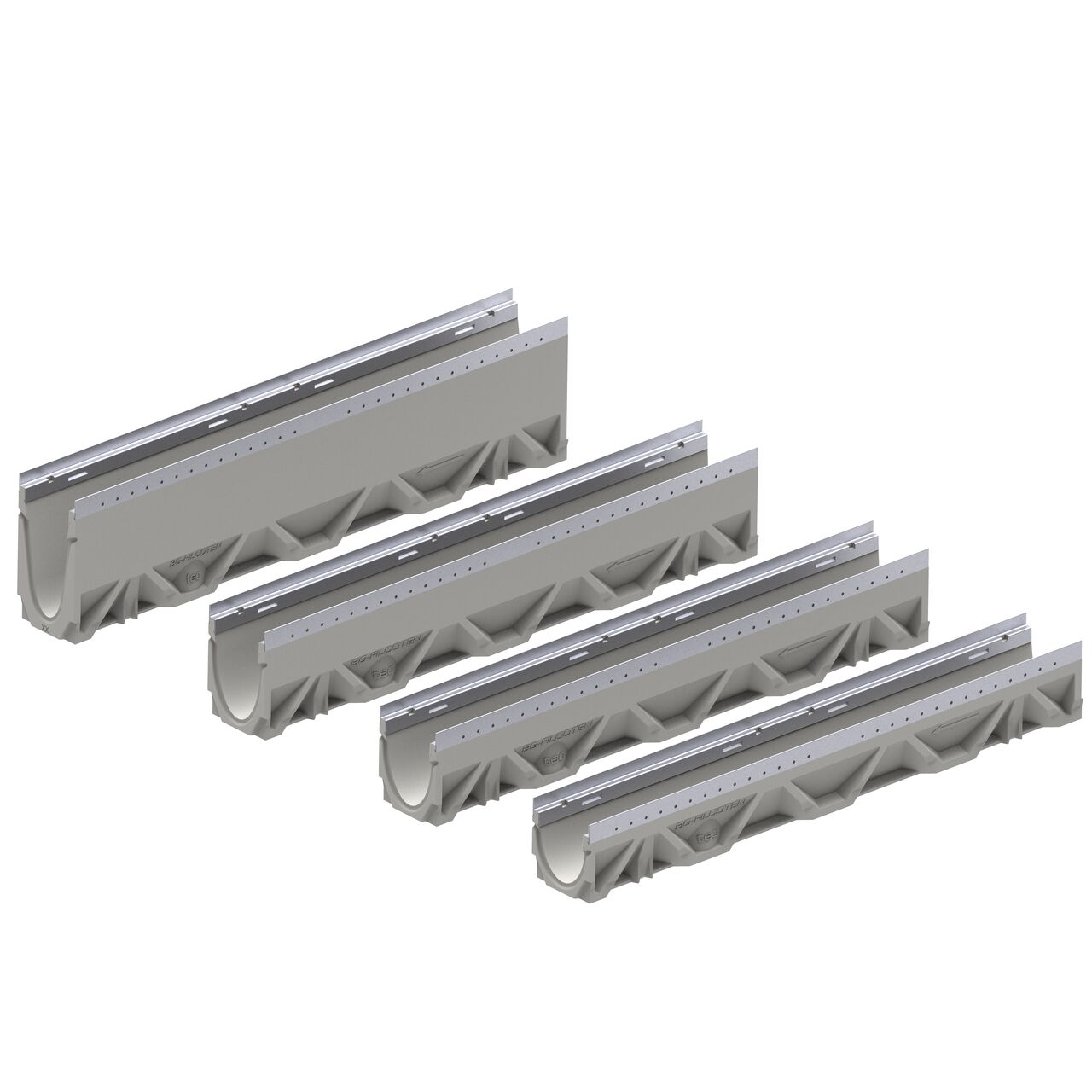

The BG-FILCOTEN® by NDS® tec V 100 Trench Drain comes in multiple channel depths in both contant depth and sloped channel sections

The BG-FILCOTEN® high-performance concrete trench drain is a modular drainage system that consists of constant depth and sloped channel sections. The tec V 100 series features 4 in. wide channels with galvanized steel rails. Channel 0 has a constant invert depth of 4.72 in. Indomitable compared to conventional concrete trench drains due to its unique engineering and materials, BG-FILCOTEN drains combine the features of a stable concrete channel with the strength and durability of high-performance concrete and engineered for high-load capacity. Ideal for commercial, industrial, and municipal applications.

Where to Buy Find a Pro

Applications:

Captures surface runoff from impervious surfaces and conveys to connected drain pipe to prevent costly property damage and mildew growth which can lead to slip hazards and concrete staining
Ideal for pedestrian or residential areas, parks, recreational facilities, garages, and similar surfaces
As part of a complete drainage system, the BG-FILCOTEN® trench drain works with drain grates to capture stormwater runoff and convey it to drain pipe for proper release downstream

Features:

Made of high-performance concrete (HPC), the channel is lighter than most conventional concrete channels for lower transport costs, easier handling, and faster installation, handles high-load capacity
This channel has a constant depth, smooth interior channel reduces turbulence and enables a self-cleaning effect
Flat sides for flush installations against buildings, anchoring ribs support the channel and increase the surface area for better adhesion to surrounding concrete, anti-sliding lugs provide stability against longitudinal sliding
Outlets can be configured at bottom, end, or with catch basin
Temperature, frost, and UV resistant
