BG-FILCOTEN® tec E 100 & tec V 100 Trench Drains

The BG-FILCOTEN® tec 100 high-performance concrete trench drain is a modular drainage system that consists of constant depth and sloped channel sections. Features 4 in. wide channels; tec v with galvanized steel rails and tec e with stainless steel rails.

Where to Buy

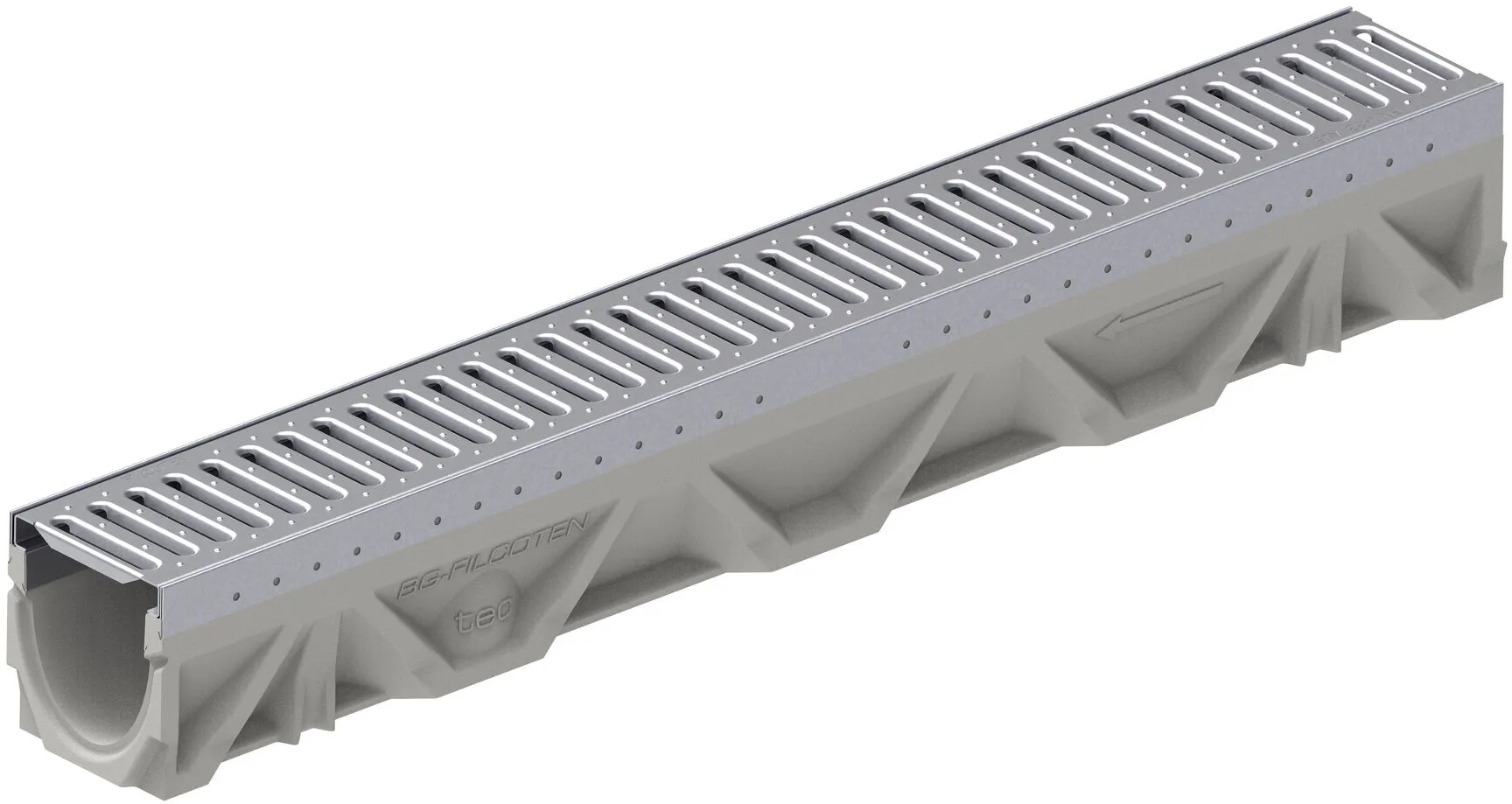

The BG-FILCOTEN® by NDS® tec V or E 100 Trench Channel Drain with a one 1 miter metal grate with slotted design installed (NDS 10410200, NDS 17010206)
Where to Buy

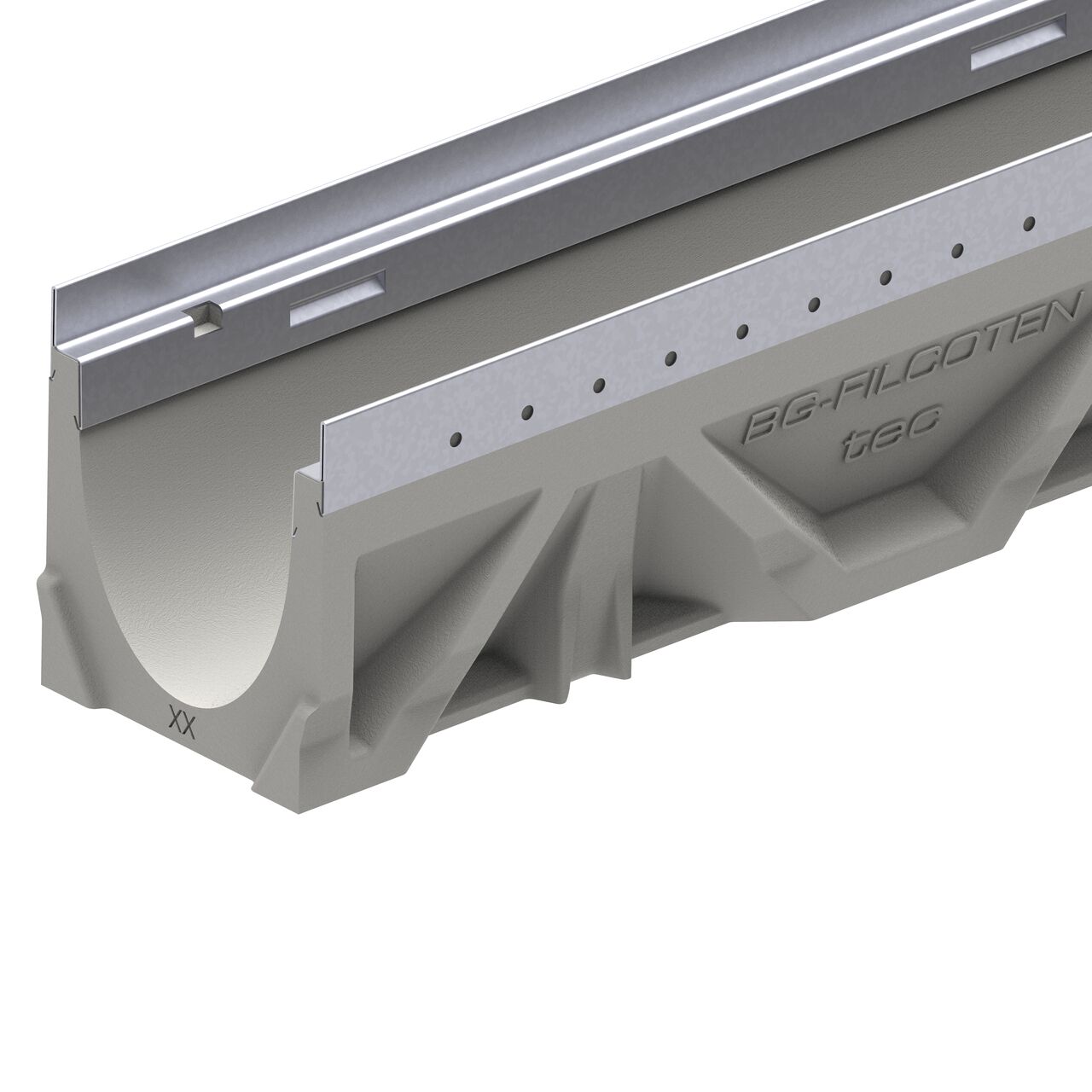

Closeup view of the male interlocking end of the BG-FILCOTEN® by NDS® tec V/E 100 Trench Channel Drain
The smooth interior channel reduces turbulence and enables a self-cleaning effect on the BG-FILCOTEN® by NDS® pro V 300 Trench Channel Drain with Galvanized Steel Rails shown from the female interlocking end
Top down View of ductile iron bar design BG-FILCOTEN® 300 Trench Drain Grate (NDS 17030103)

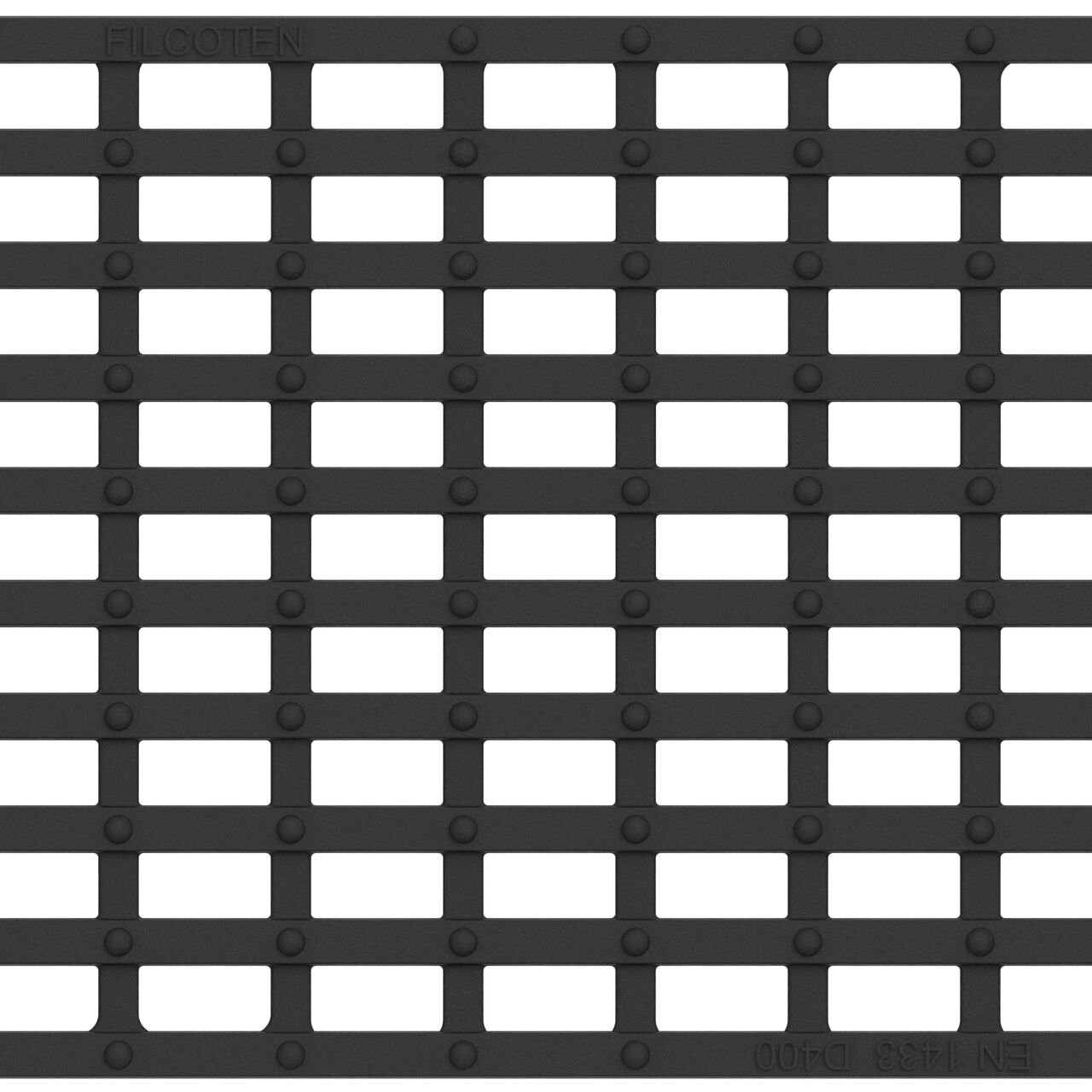

Top down closeup view of class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104)

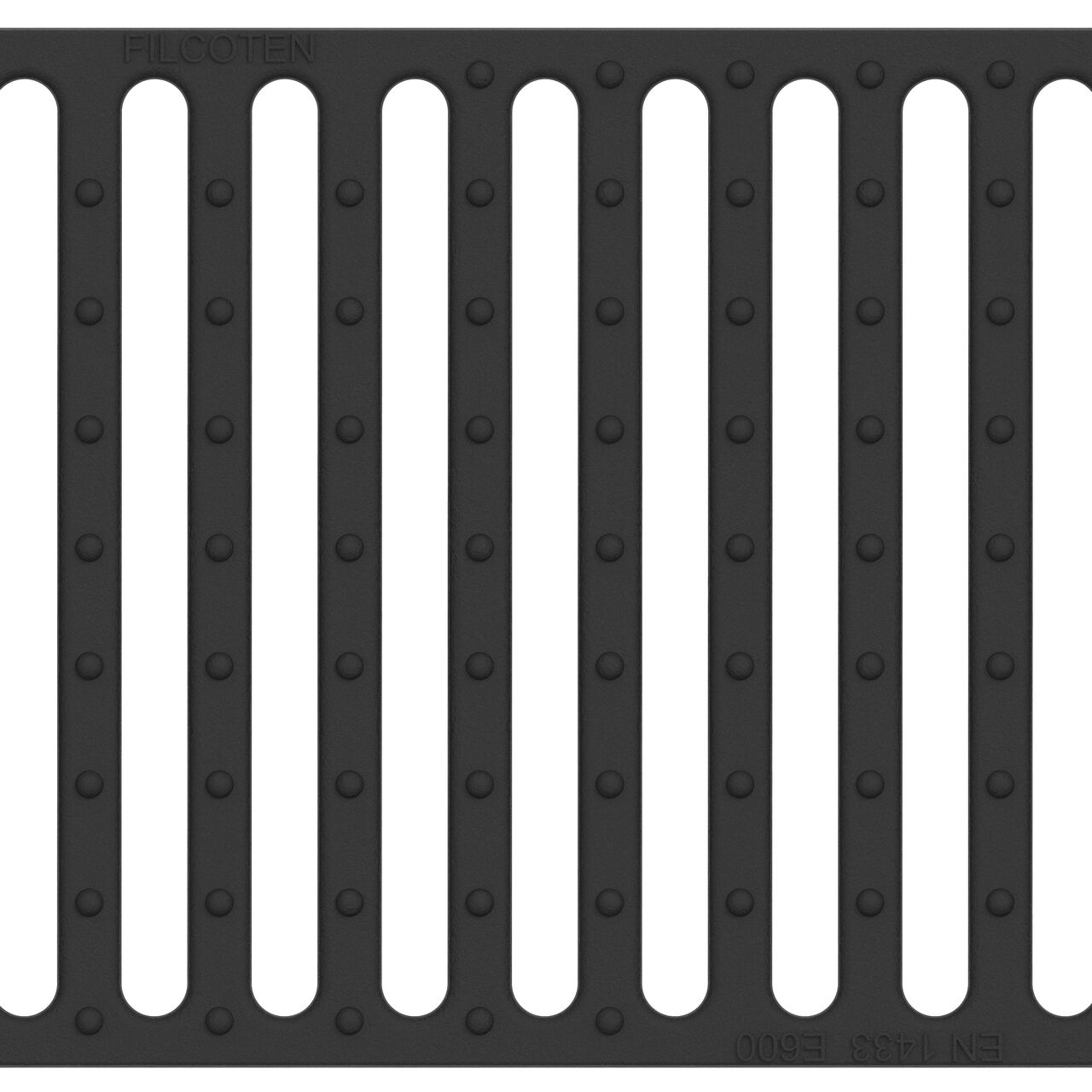

Top down closeup view of class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105)

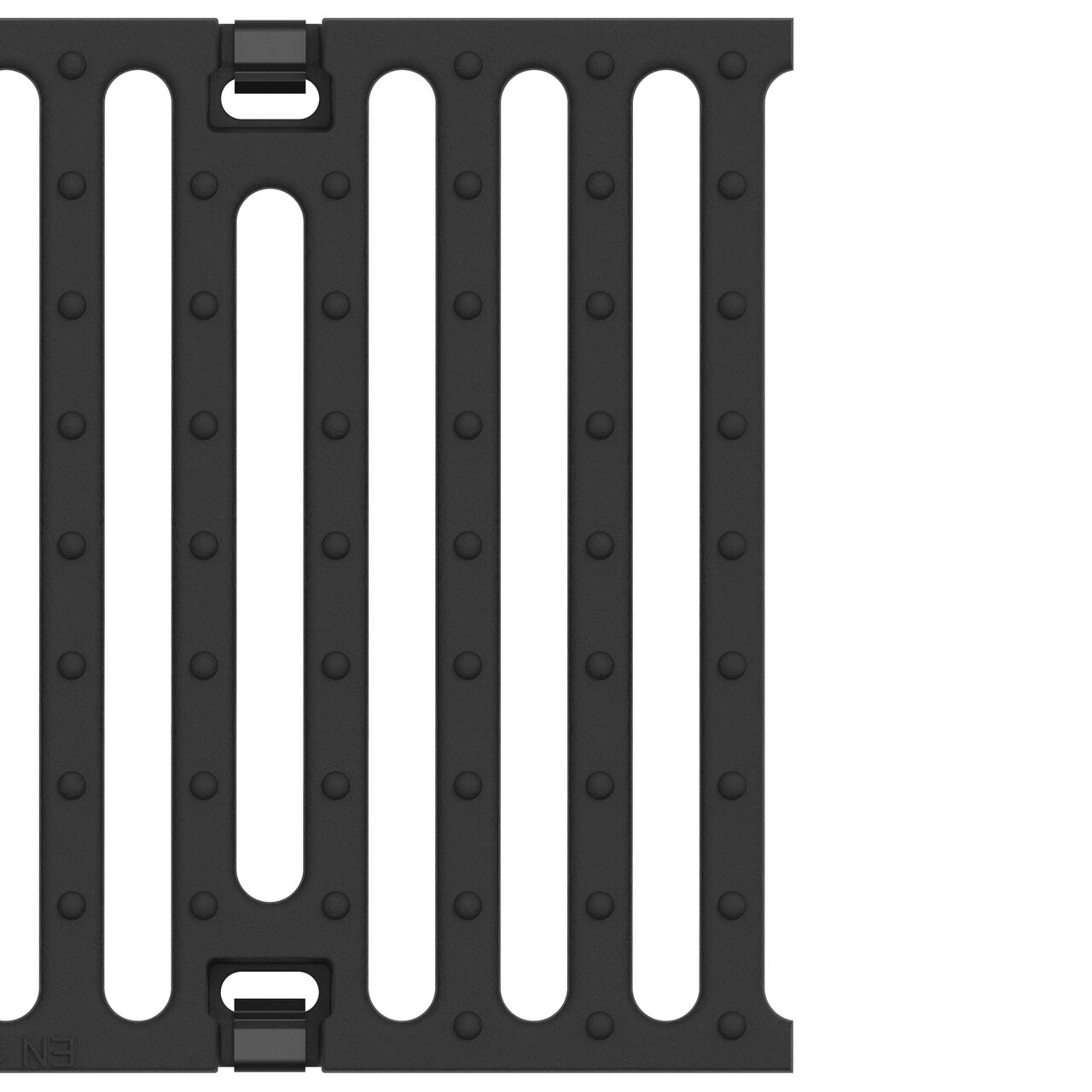

Closeup view of the end on the class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105) showing clips
Closeup view of the male interlocking end of the BG-FILCOTEN® by NDS® tec V/E 100 Trench Channel Drain
The smooth interior channel reduces turbulence and enables a self-cleaning effect on the BG-FILCOTEN® by NDS® pro V 300 Trench Channel Drain with Galvanized Steel Rails shown from the female interlocking end
Top down View of ductile iron bar design BG-FILCOTEN® 300 Trench Drain Grate (NDS 17030103)
Top down closeup view of class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104)
Top down closeup view of class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105)
Closeup view of the end on the class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105) showing clips

Key Features

  • Built with world-class craftsmanship, the BG-FILCOTEN drain combines the reliability of stable concrete with the strength and durability of high-performance concrete
  • Channel is lighter than most conventional concrete channels for lower transport costs, easier handling, and faster installation; handles high-load capacity
  • Channels are available with constant or sloped depth; smooth interior channel reduces turbulence and enables a self-cleaning effect
  • Customize with grates available in a variety of materials and styles such as slot tops, perforated, COMBee, mesh, slotted, and decorative designs
  • Optimize the drainage system with accessories such as the inline catch basin kit, trash bucket, bottom outlet, end cap, and end outlet

Applications

  • Ideal for pedestrian or residential areas, parks, recreational facilities, garages, and similar surfaces
  • Channel drains and trench drains are ideal for hardscapes to prevent mildew growth, concrete staining, and costly damage by capturing and conveying excess water for proper release downstream
  • As part of a complete drainage system, the BG-FILCOTEN® trench drain works with drain grates and accessories to capture stormwater runoff and convey it to drain pipe for proper release downstream

Installation & Maintenance

  • Sections have interlocking ends with sealant grooves
  • Flat sides for flush installations against buildings
  • Anti-sliding lugs for stability
  • Anchoring ribs to support channel and increase surface area for better adhesion to surrounding concrete
  1. Check the drain grate and clear debris from grate openings
  2. Remove grate to inspect inside the trench drain
  3. Check drain pipes connected to the trench drain and clear any obstructions

Materials & Sustainability

  • Channel is made of high-performance concrete
  • Country of origin: Austria

Product Models

Filter results
Family
Color
Shape

82 products

    Part Number
    (click for more info)    		 Description
    19011204 BG-FILCOTEN® 100 Trench Drain Bottom Outlet, Galvanized Steel
    19010400 BG-FILCOTEN® 100 Trench Drain End Cap/Outlet, Galvanized Steel
    32087 BG-FILCOTEN® 100 Trench Drain Grate Locking Device, Stainless Steel
    17010331 BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Bar Design, NDS Class B Load, Stainless Steel
    17010106 BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Bar Design, NDS Class C Load, Ductile Iron
    17010110 BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Bar Design, NDS Class D Load, Ductile Iron
    17010401 BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, COMBee Design, NDS Class B Load, Plastic
    17010402 BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, COMBee Design, NDS Class C Load, Plastic
    17010183 BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Decorative Kiaro Slot Design, NDS Class D Load, Ductile Iron
    17010184 BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Decorative Via Slot Design, NDS Class D Load, Ductile Iron
    17010180 BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Decorative Ville Slot Design, NDS Class E Load, Ductile Iron
    17010221 BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Mesh Design, NDS Class B Load, Galvanized Steel
    17010205 BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Perforated Design, NDS Class A Load, Galvanized Steel
    17010229 BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Perforated Design, NDS Class C Load, Galvanized Steel
    17010329 BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Perforated Design, NDS Class C Load, Stainless Steel
    17111205 BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Slot Top Design, Asymmetric, NDS Class C Load, Galvanized Steel
    17111305 BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Slot Top Design, Asymmetric, NDS Class C Load, Stainless Steel
    17010203 BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Slotted Design, NDS Class A Load, Galvanized Steel
    17010207 BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Slotted Design, NDS Class C Load, Galvanized Steel
    17010105 BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Slotted Design, NDS Class E Load, Ductile Iron
    17010330 BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 39.37 in. Long, Bar Design, NDS Class B Load, Stainless Steel
    17010220 BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 39.37 in. Long, Mesh Design, NDS Class B Load, Galvanized Steel
    17010204 BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 39.37 in. Long, Perforated Design, NDS Class A Load, Galvanized Steel
    17010228 BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 39.37 in. Long, Perforated Design, NDS Class C Load, Galvanized Steel
    17010328 BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 39.37 in. Long, Perforated Design, NDS Class C Load, Stainless Steel
    17111204 BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 39.37 in. Long, Slot Top Design, Asymmetric, NDS Class C Load, Galvanized Steel
    17111304 BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 39.37 in. Long, Slot Top Design, Asymmetric, NDS Class C Load, Stainless Steel
    17010202 BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 39.37 in. Long, Slotted Design, NDS Class A Load, Galvanized Steel
    17010206 BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 39.37 in. Long, Slotted Design, NDS Class C Load, Galvanized Steel
    10410294 BG-FILCOTEN® 100 Trench Drain Inline Catch Basin Kit, Galvanized Steel Rails, with 1-Outlet Catch Basin and Trash Bucket
    13399 BG-FILCOTEN® 100 Trench Drain Opening Tool for Maintenance Unit
    19010902 BG-FILCOTEN® 100 Trench Drain Rebar Support, Galvanized Steel
    17111306 BG-FILCOTEN® 100 Trench Drain Slot Top Maintenance Unit, 4.84 in. Wide 19.69 in. Long, Asymmetric, Stainless Steel
    17111206 BG-FILCOTEN® 100 Trench Drain Slot Top Maintenance Unit, 4.84 in. Wide X 19.69 in. Long, Asymmetric, Galvanized Steel
    22515 BG-FILCOTEN® 100 Trench Drain Trash Bucket for Catch Basin, Plastic
    10410300 BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 4.72 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 5.31 in. Deep, Constant Depth Channel 0
    10410301 BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 4.72 in. to 4.92 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 5.51 in. Deep, Sloped Channel 1
    10410302 BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 4.92 in. to 5.12 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 5.71 in. Deep, Sloped Channel 2
    10410303 BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 5.12 in. to 5.31 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 5.91 in. Deep, Sloped Channel
    10410304 BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 5.31 in. to 5.51 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 6.10 in. Deep, Sloped Channel 4
    10410305 BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 5.51 in. to 5.71 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 6.30 in. Deep, Sloped Channel 5
    10410361 BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 5.71 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 6.30 in. Deep, Constant Depth Channel 5-0
    10410306 BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 5.71 in. to 5.91 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 6.50 in. Deep, Sloped Channel 6
    10410307 BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 5.91 in. to 6.10 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 6.69 in. Deep, Sloped Channel 7
    10410308 BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 6.10 in. to 6.30 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 6.89 in. Deep, Sloped Channel 8
    10410309 BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 6.30 in. to 6.50 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 7.09 in. Deep, Sloped Channel 9
    10410310 BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 6.50 in. to 6.69 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 7.28 in. Deep, Sloped Channel 10
    10410362 BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 6.69 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 7.28 in. Deep, Constant Depth Channel 10-0
    10410311 BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 6.69 in. to 6.89 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 7.87 in. Deep, Sloped Channel 11
    10410312 BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 6.89 in. to 7.09 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 8.07 in. Deep, Sloped Channel 12
    10410313 BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 7.09 in. to 7.28 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 8.27 in. Deep, Sloped Channel 13
    10410314 BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 7.28 in. to 7.48 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 8.46 in. Deep, Sloped Channel 14
    10410315 BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 7.48 in. to 7.68 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 8.66 in. Deep, Sloped Channel 15
    10410316 BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 7.68 in. to 7.87 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 8.86 in. Deep, Sloped Channel 16
    10410317 BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 7.87 in. to 8.07 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 9.05 in. Deep, Sloped Channel 17
    10410318 BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 8.07 in. to 8.27 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 9.25 in. Deep, Sloped Channel 18
    10410319 BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 8.27 in. to 8.46 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 9.45 in. Deep, Sloped Channel 19
    10410320 BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 8.46 in. to 8.66 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 9.65 in. Deep, Sloped Channel 20
    10410200 BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 4.72 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 5.31 in. Deep, Constant Depth Channel 0
    10410201 BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 4.72 in. to 4.92 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 5.51 in. Deep, Sloped Channel 1
    10410202 BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 4.92 in. to 5.12 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 5.71 in. Deep, Sloped Channel 2
    10410203 BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 5.12 in. to 5.31 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 5.91 in. Deep, Sloped Channel 3
    10410204 BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 5.31 in. to 5.51 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 6.10 in. Deep, Sloped Channel 4
    10410205 BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 5.51 in. to 5.71 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 6.30 in. Deep, Sloped Channel 5
    10410261 BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 5.71 in. Invert Depth, Neutral, 4.84 in. Wide X 39.37 in. Long X 6.30 in. Deep, Constant Depth Channel 5-0
    10410206 BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 5.71 in. to 5.91 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 6.50 in. Deep, Sloped Channel 6
    10410207 BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 5.91 in. to 6.10 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 6.69 in. Deep, Sloped Channel 7
    10410208 BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 6.10 in. to 6.30 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 6.89 in. Deep, Sloped Channel 8
    10410209 BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 6.30 in. to 6.50 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 7.09 in. Deep, Sloped Channel 9
    10410210 BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 6.50 in. to 6.69 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 7.28 in. Deep, Sloped Channel 10
    10410262 BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 6.69 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 7.28 in. Deep, Constant Depth Channel 10-0
    10410211 BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 6.69 in. to 6.89 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 7.87 in. Deep, Sloped Channel 11
    10410212 BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 6.89 in. to 7.09 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 8.07 in. Deep, Sloped Channel 12
    10410213 BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 7.09 in. to 7.28 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 8.27 in. Deep, Sloped Channel 13
    10410214 BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 7.28 in. to 7.48 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 8.46 in. Deep, Sloped Channel 14
    10410215 BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 7.48 in. to 7.68 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 8.66 in. Deep, Sloped Channel 15
    10410216 BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 7.68 in. to 7.87 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 8.86 in. Deep, Sloped Channel 16
    10410217 BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 7.87 in. to 8.07 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 9.05 in. Deep, Sloped Channel 17
    10410218 BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 8.07 in. to 8.27 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 9.25 in. Deep, Sloped Channel 18
    10410219 BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 8.27 in. to 8.46 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 9.45 in. Deep, Sloped Channel 19
    10410220 BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 8.46 to 8.66 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 9.65 in. Deep, Sloped Channel 20
    10410264 BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 8.66 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 9.65 in. Deep, Constant Depth Channel 20-0
