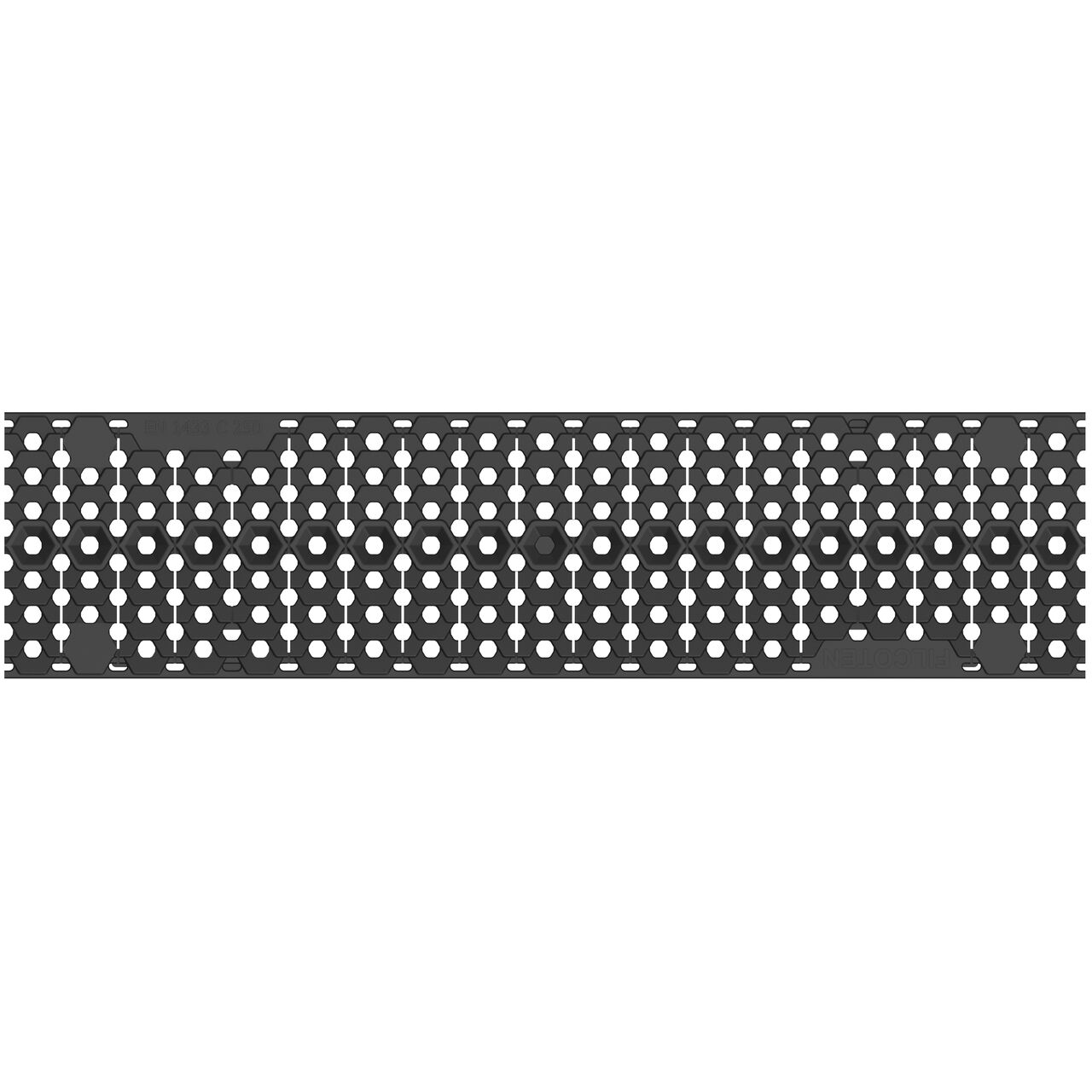

BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, COMBee Design, NDS Class C Load, Plastic
SKU: 17010402

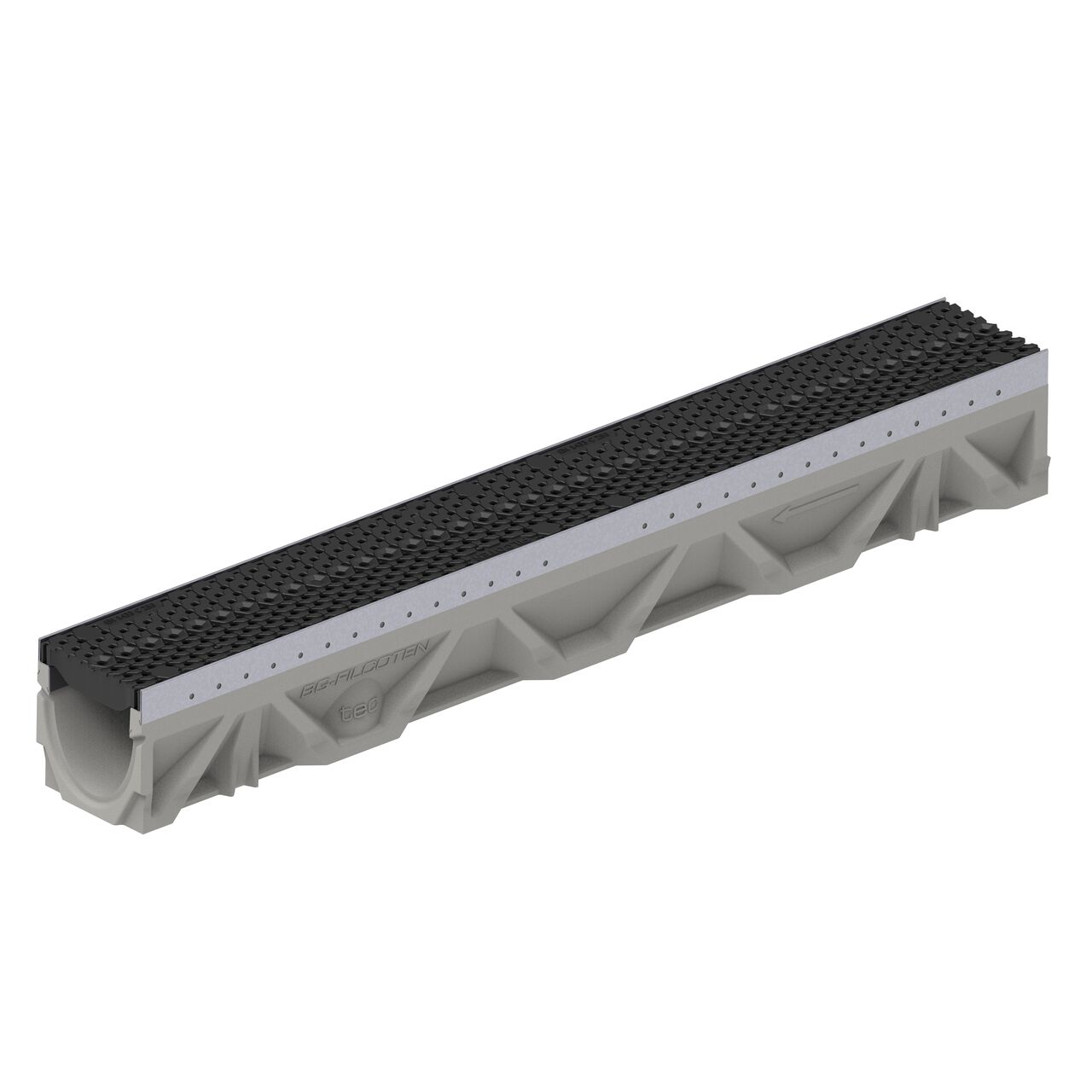

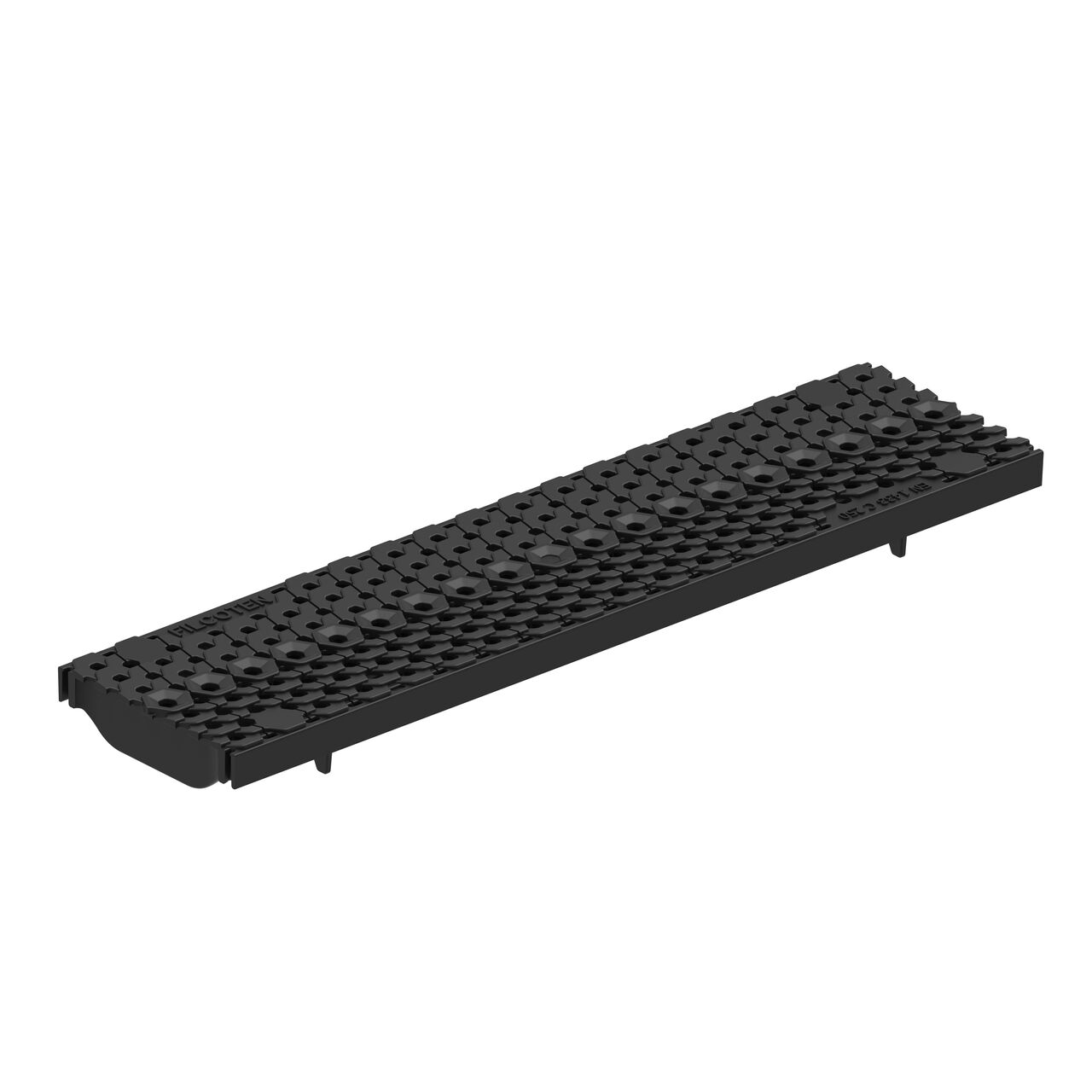

Prevent leaves and debris from being swept into the drain system with a trench drain grate. This grate made of polyamide plastic has a unique COMBee design, much like a honeycomb. The grate, also known as a drain cover, has an open surface area of 44.95 sq. in. per meter and flow rate of 138 GPM. The grad has an NDS Class C load rating and is ADA compliant and heel proof. To cover one BG-FILCOTEN 100 4 in. trench drain, use two 1/2 meter (19.69 in.) grates.
Applications:
- Prevents leaves and debris from entering the drainage system
- Ideal for pedestrian or residential areas, parks, recreational facilities, garages, and similar surfaces
- As part of a complete drainage system, the BG-FILCOTEN® trench drain grate works with the channel drain to capture stormwater runoff and convey it to drain pipe for proper release downstream
Features:
- Grate is 4.80 in. wide and 19.69 in. long, works with BG-FILCOTEN tec V and tec E channels
- Rated for NDS Class C loads, handles up to 56,200 lbs.

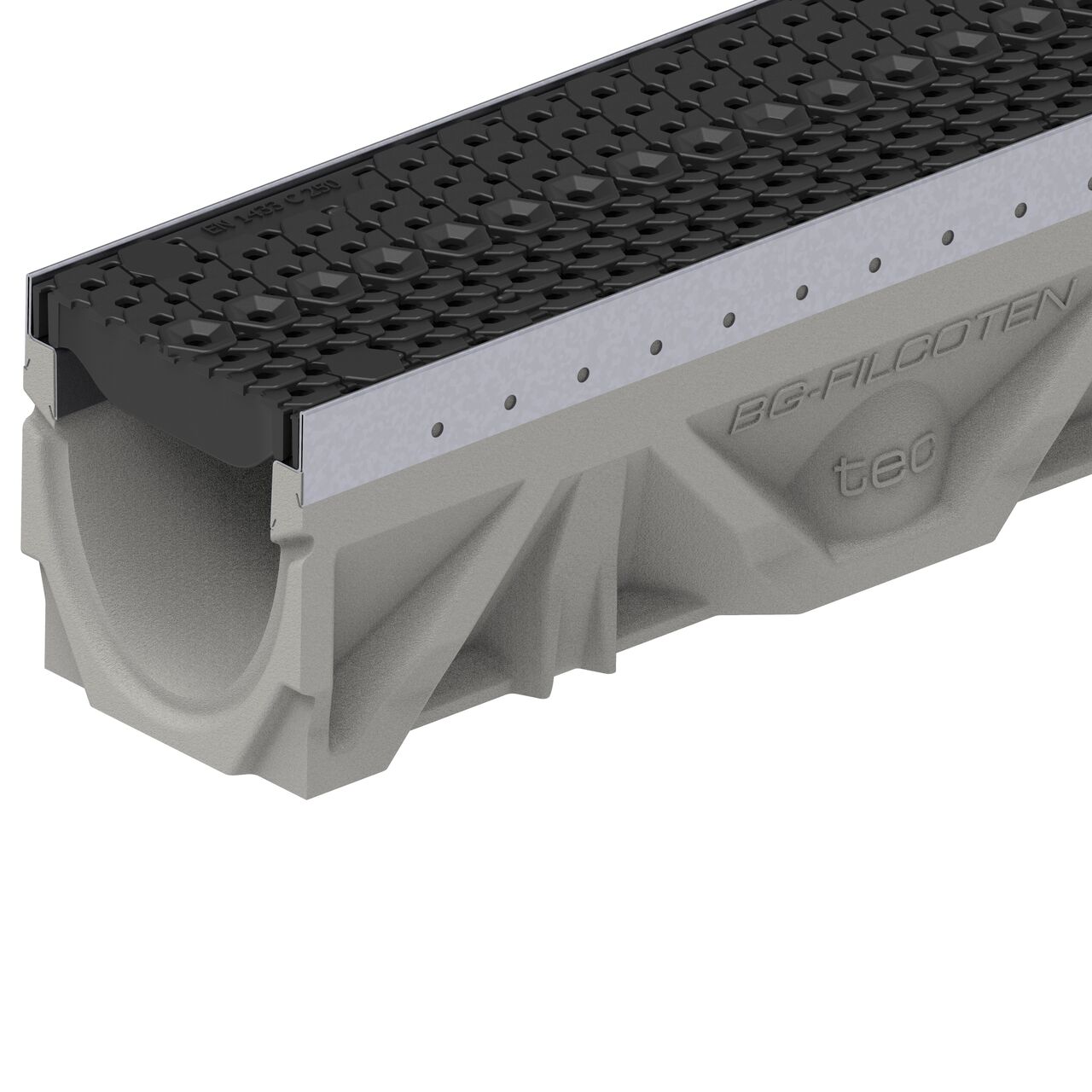

- Grate is secured to channel body with four-point snap-in locking system

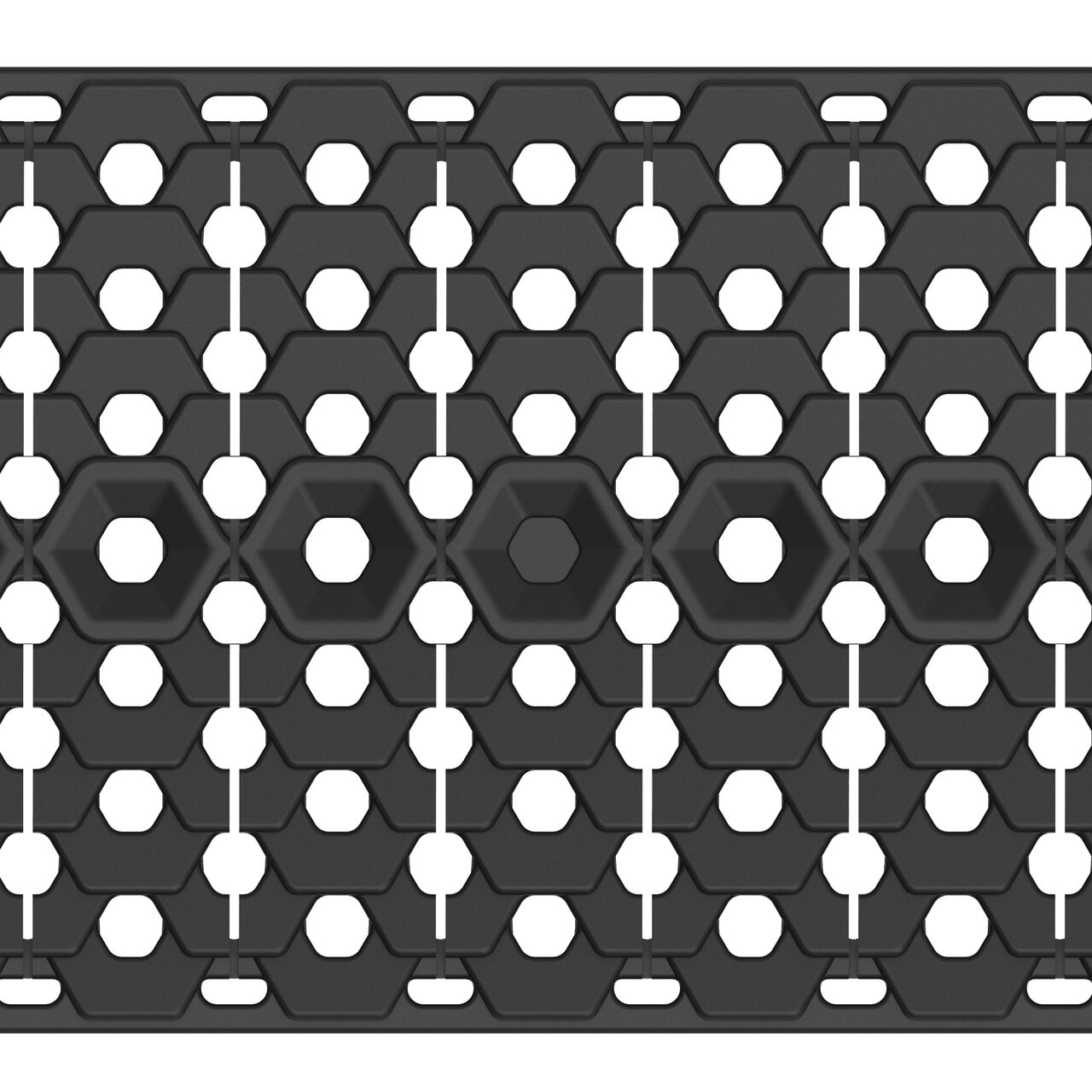

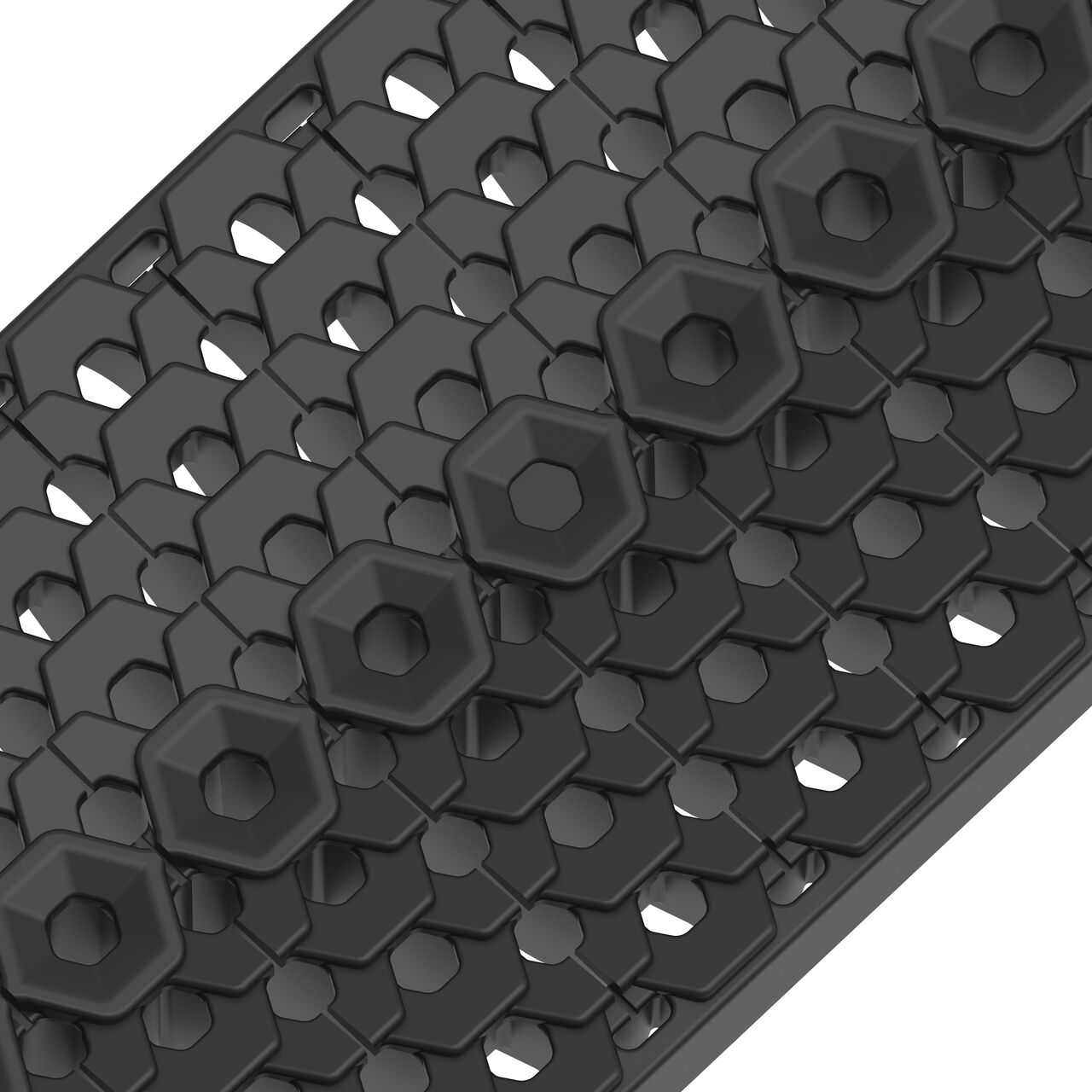

- COMBee honeycomb design
- ADA compliant and heel proof
