BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 39.37 in. Long, Slotted Design, NDS Class C Load, Galvanized Steel
SKU: 17010206

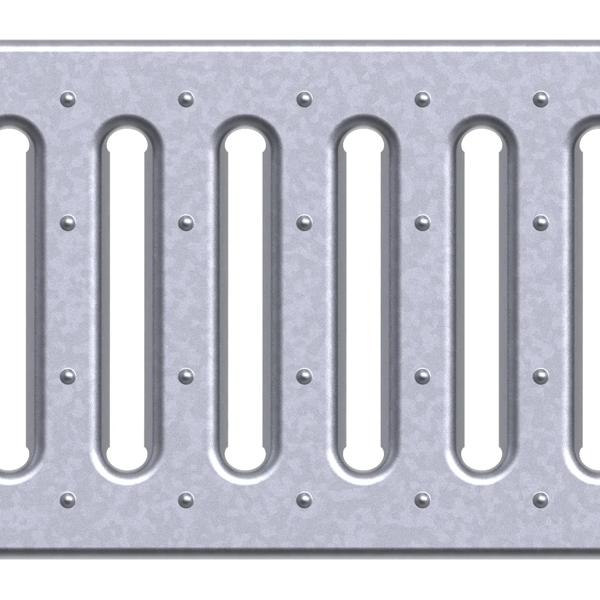

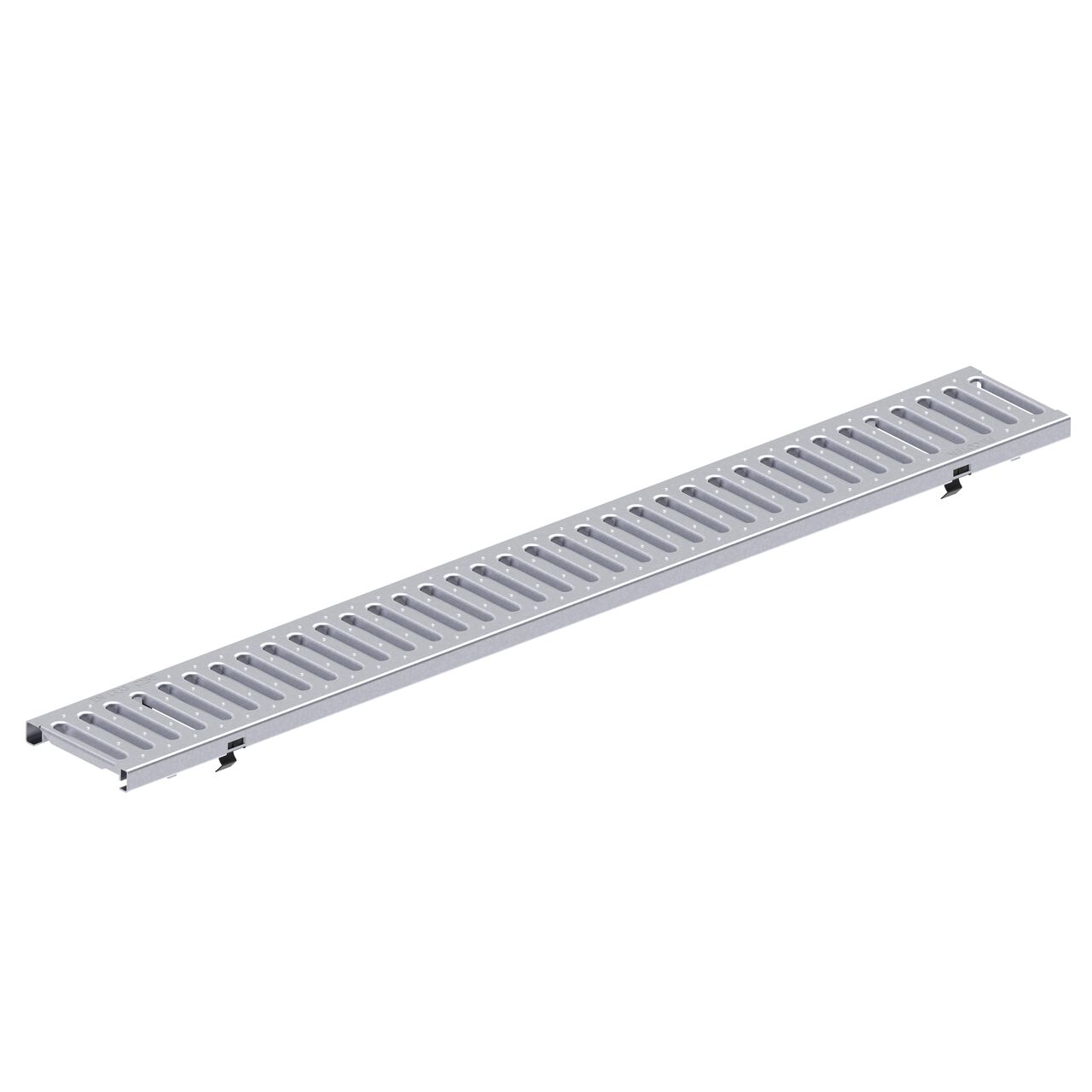

Protect your drainage system by preventing harmful leaves and debris from entering the drain with the trench drain grate. The definitive design features rounded slots that encompass the grate from end to end. This galvanized steel drain cover has an NDS Class C load rating when properly installed and is ADA compliant. Grate has a surface area of 42.6 sq. in. per meter and 131 GPM flow rate. One 1-meter (39.37 in.) grate covers one BG-FILCOTEN 100 4 in. trench drain, also available in a 1/2 meter (19.69 in.) size.
Applications:
- Prevents leaves and debris from entering the drainage system
- Ideal for pedestrian or residential areas, parks, recreational facilities, garages, and similar surfaces
- As part of a complete drainage system, the BG-FILCOTEN® trench drain grate works with the channel drain to capture stormwater runoff and convey it to drain pipe for proper release downstream
Features:

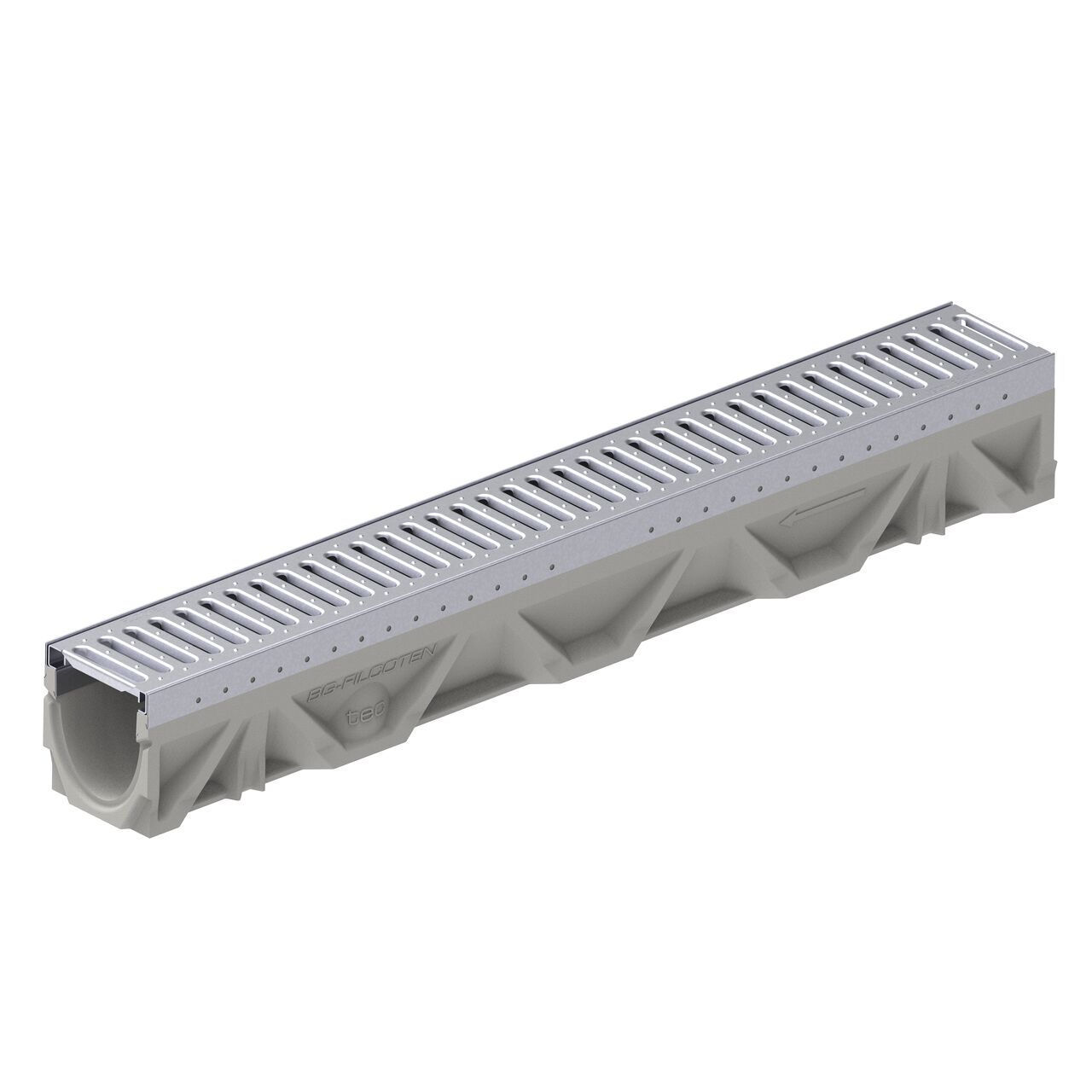

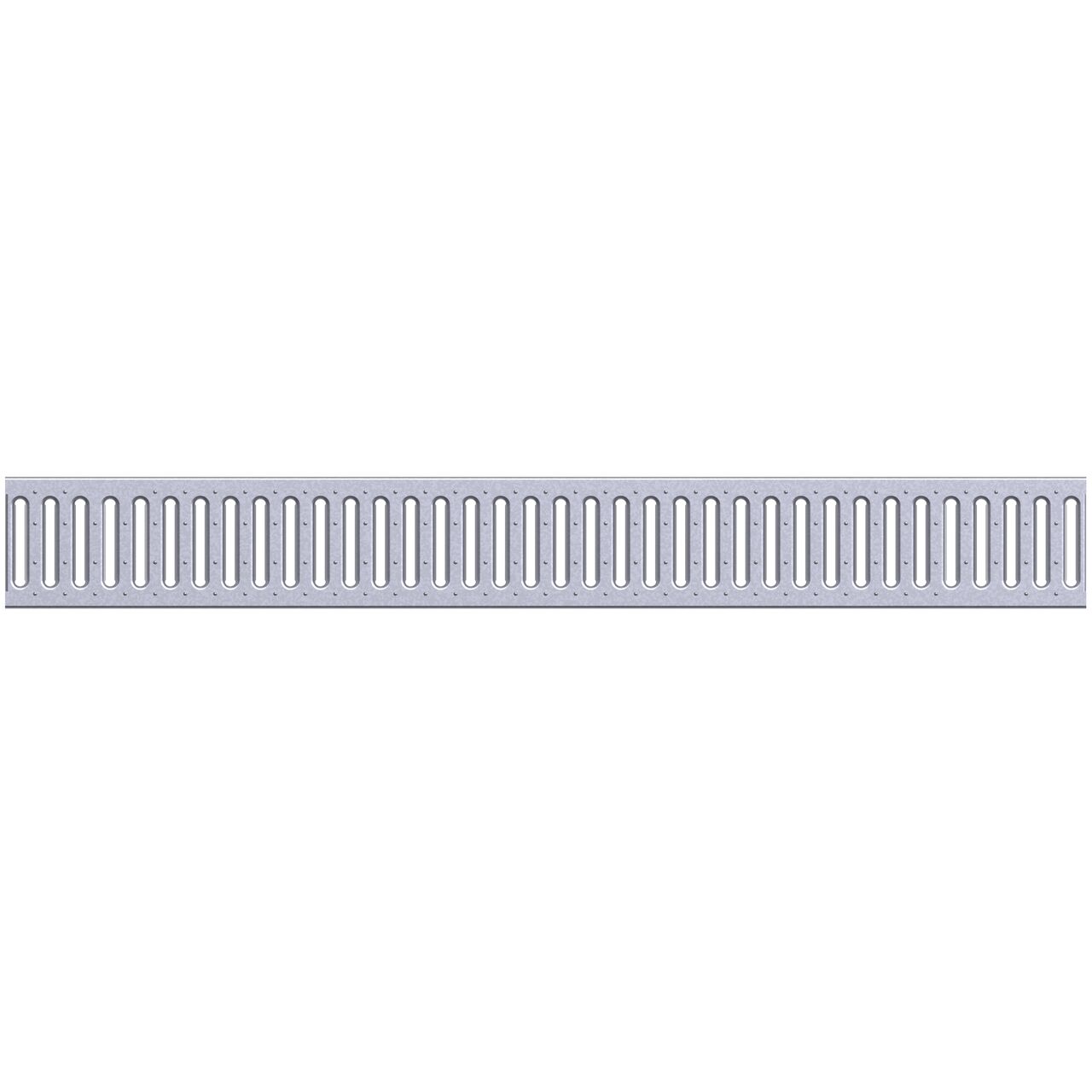

- Grate is 4.80 in. wide and 39.37 in. long, works with BG-FILCOTEN tec V and tec E channels
- Rated for NDS Class C loads, handles up to 56,200 lbs.

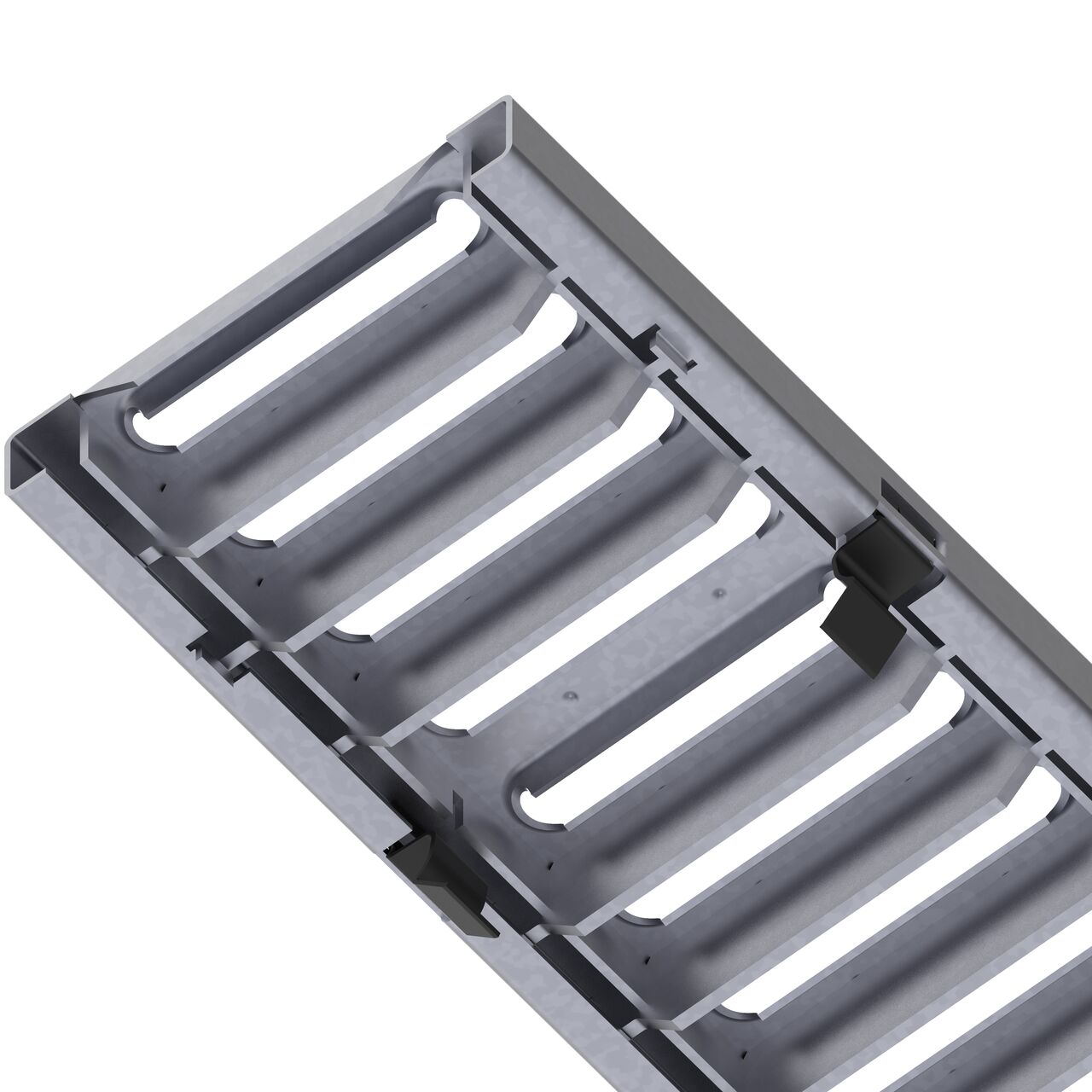

- Grate is secured to channel body with four-point snap-in locking system
- Perforated design
- ADA compliant
