BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Bar Design, NDS Class D Load, Ductile Iron
SKU: 17010110

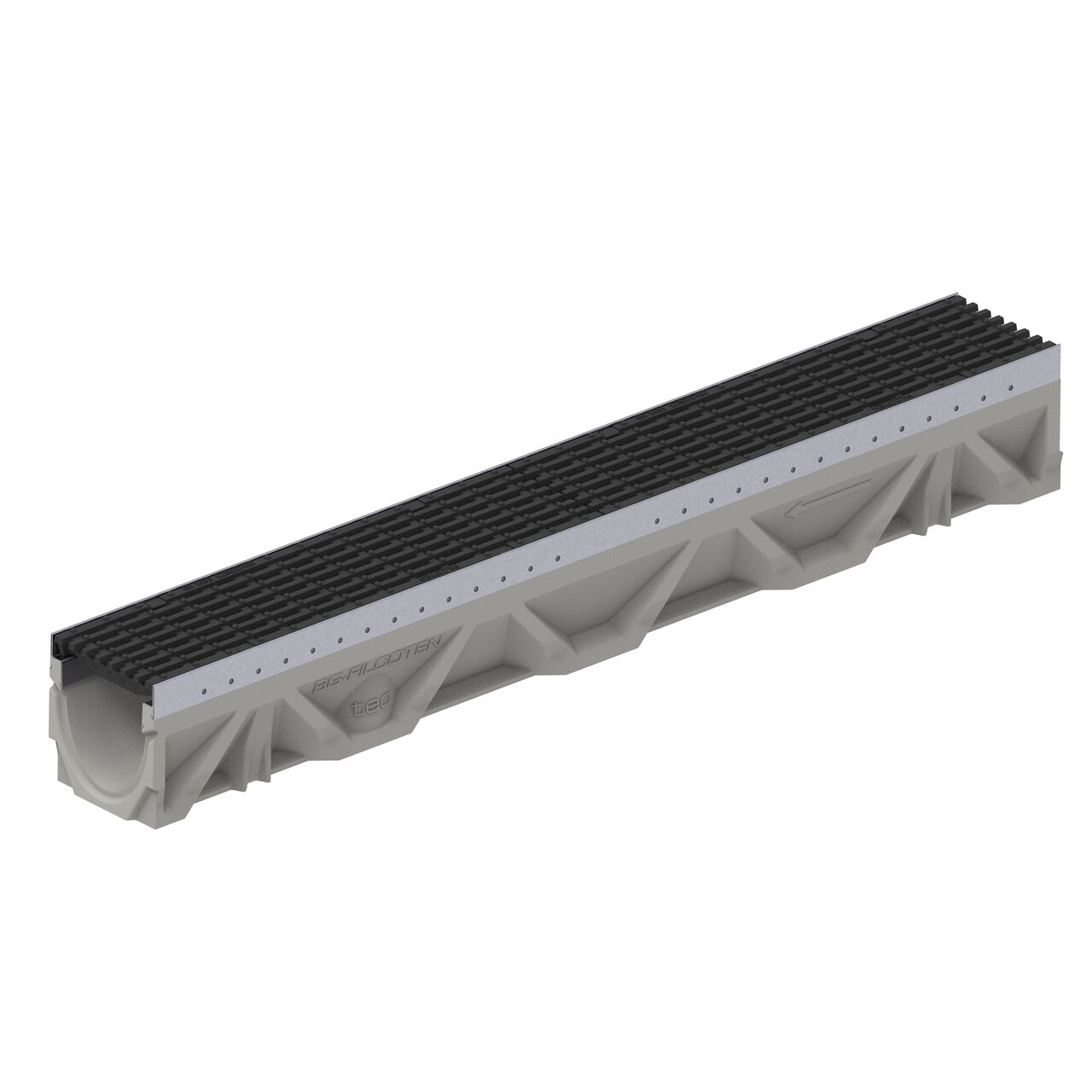

Protect the drainage system from clogging due to leaves and debris with the trench drain grate. This ductile iron grate with longitudinal bar design boasts an NDS Class D load rating when properly installed. The drain cover has an open surface area of 73.63 sq. in. per meter and flow rate of 226 GPM. ADA compliant channel grate. Two half-meter (19.69 in.) grates will cover one BG-FILCOTEN 100 4 in. trench drain. Iron grates are painted black to inhibit rust, over time, it will form a protective iron-oxide patina.
Applications:
- Prevents leaves and debris from entering the drainage system
- Ideal for pedestrian or residential areas, parks, recreational facilities, garages, and similar surfaces
- As part of a complete drainage system, the BG-FILCOTEN® trench drain grate works with the channel drain to capture stormwater runoff and convey it to drain pipe for proper release downstream
Features:

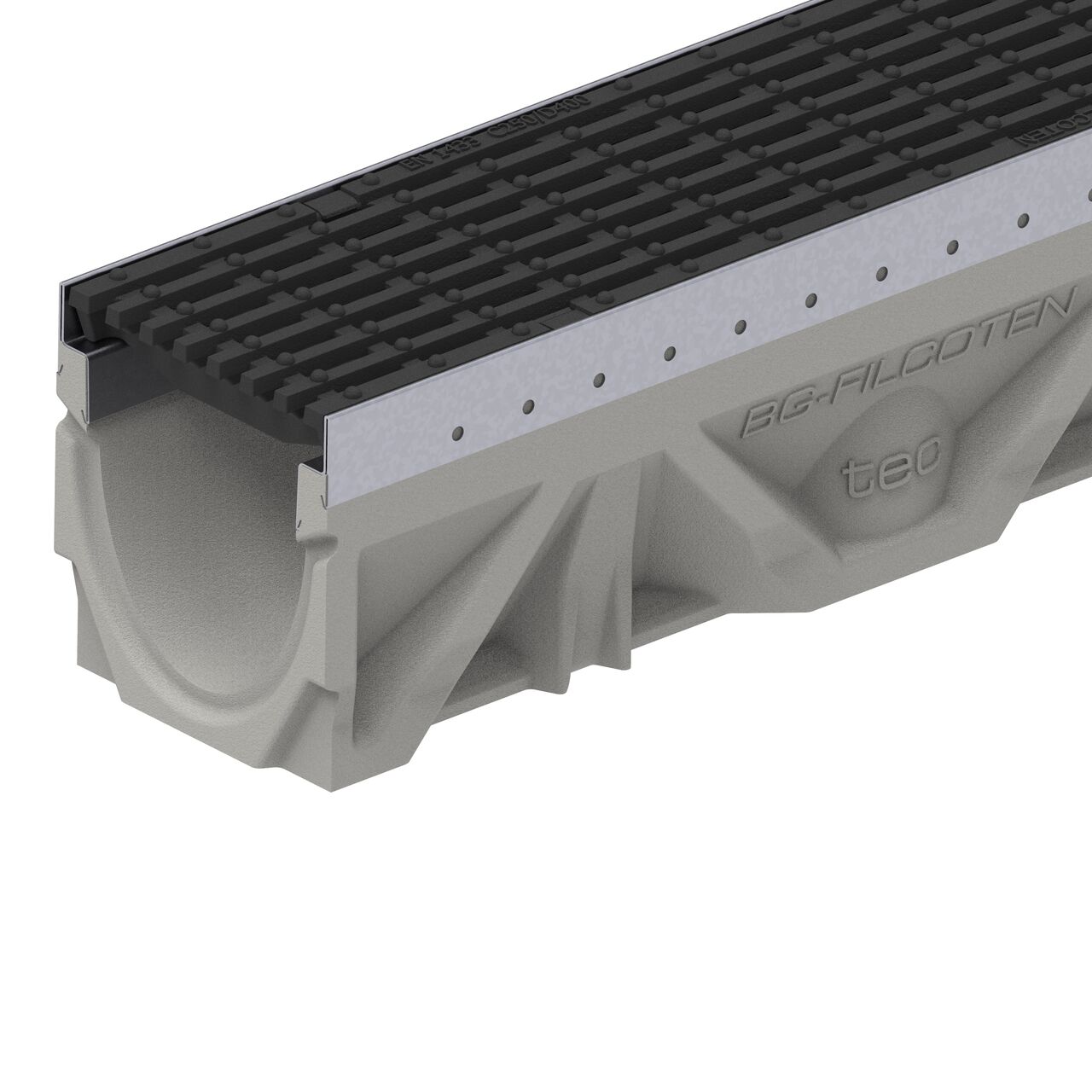

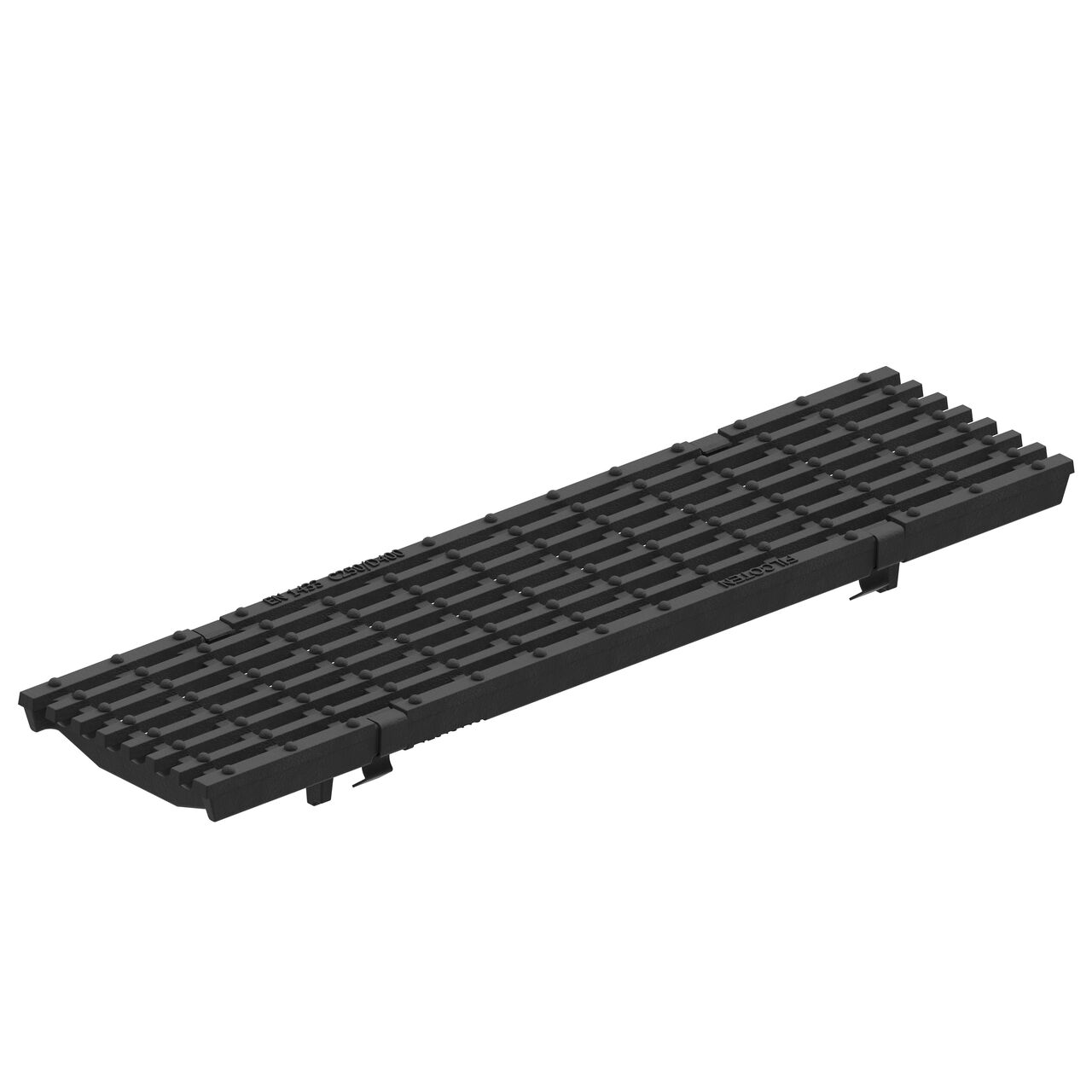

- Grate is 4.80 in. wide and 19.69 in. long, works with BG-FILCOTEN tec V and tec E channels
- Rated for NDS Class D loads, handles up to 89,920 lbs.

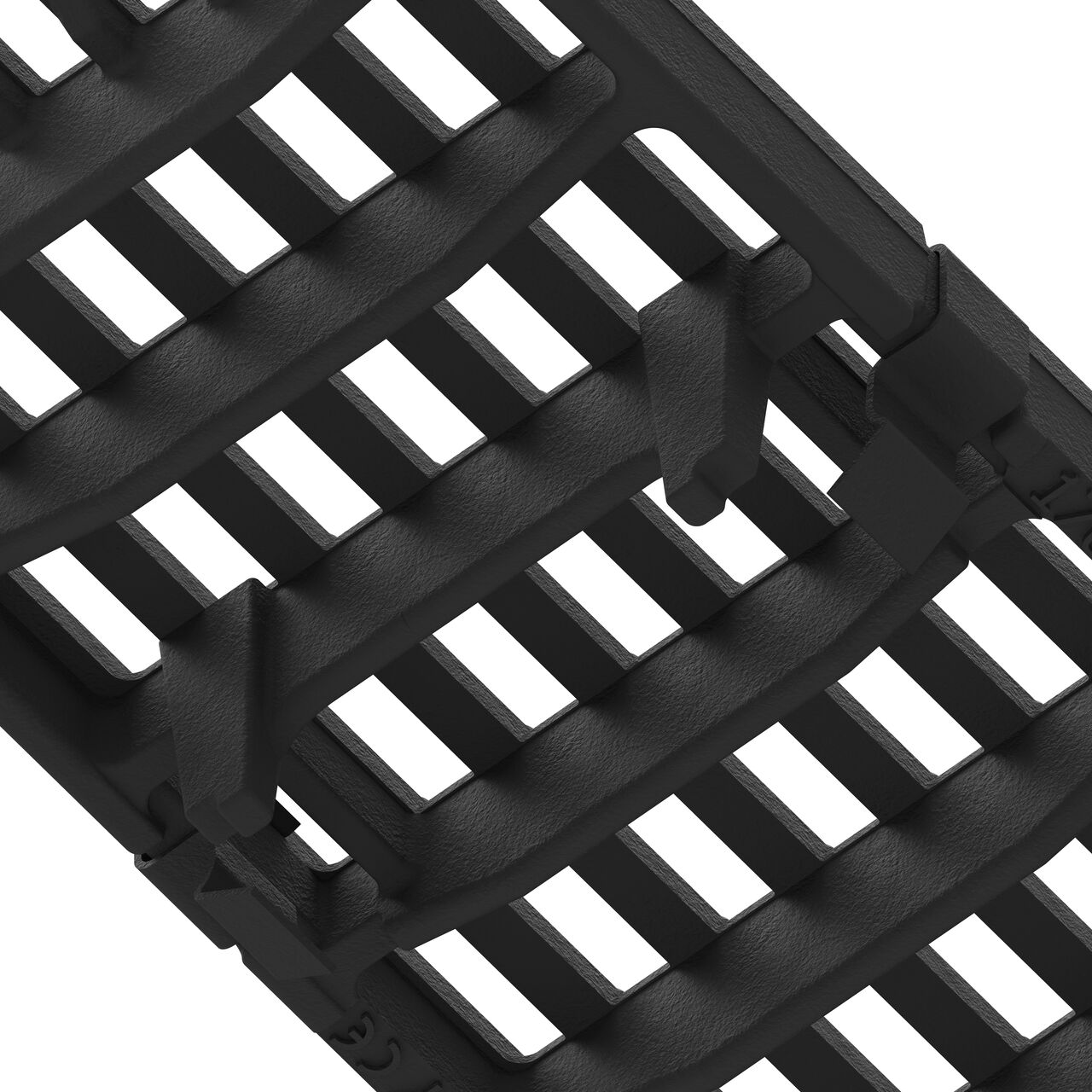

- Grate is secured to channel body with four-point snap-in locking system

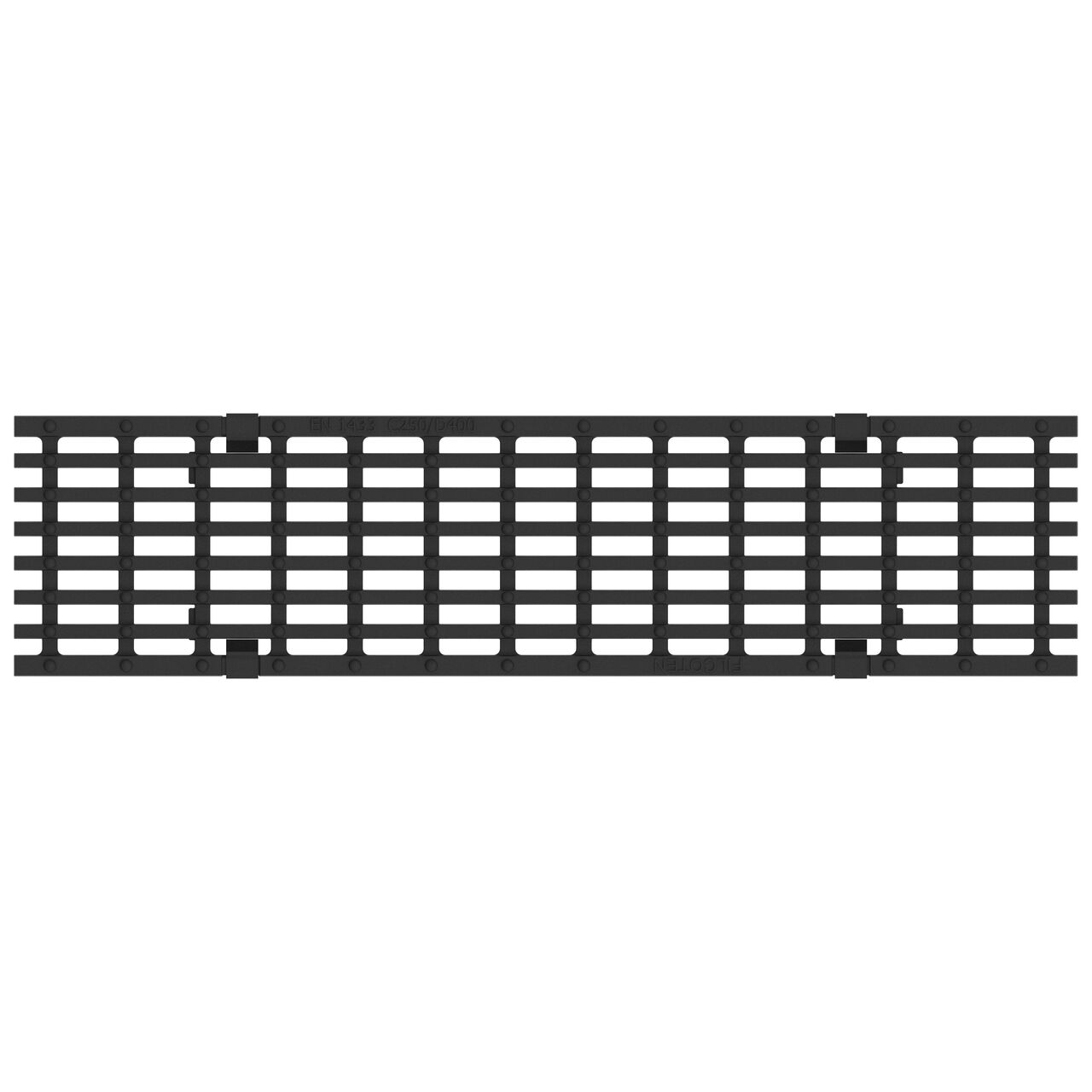

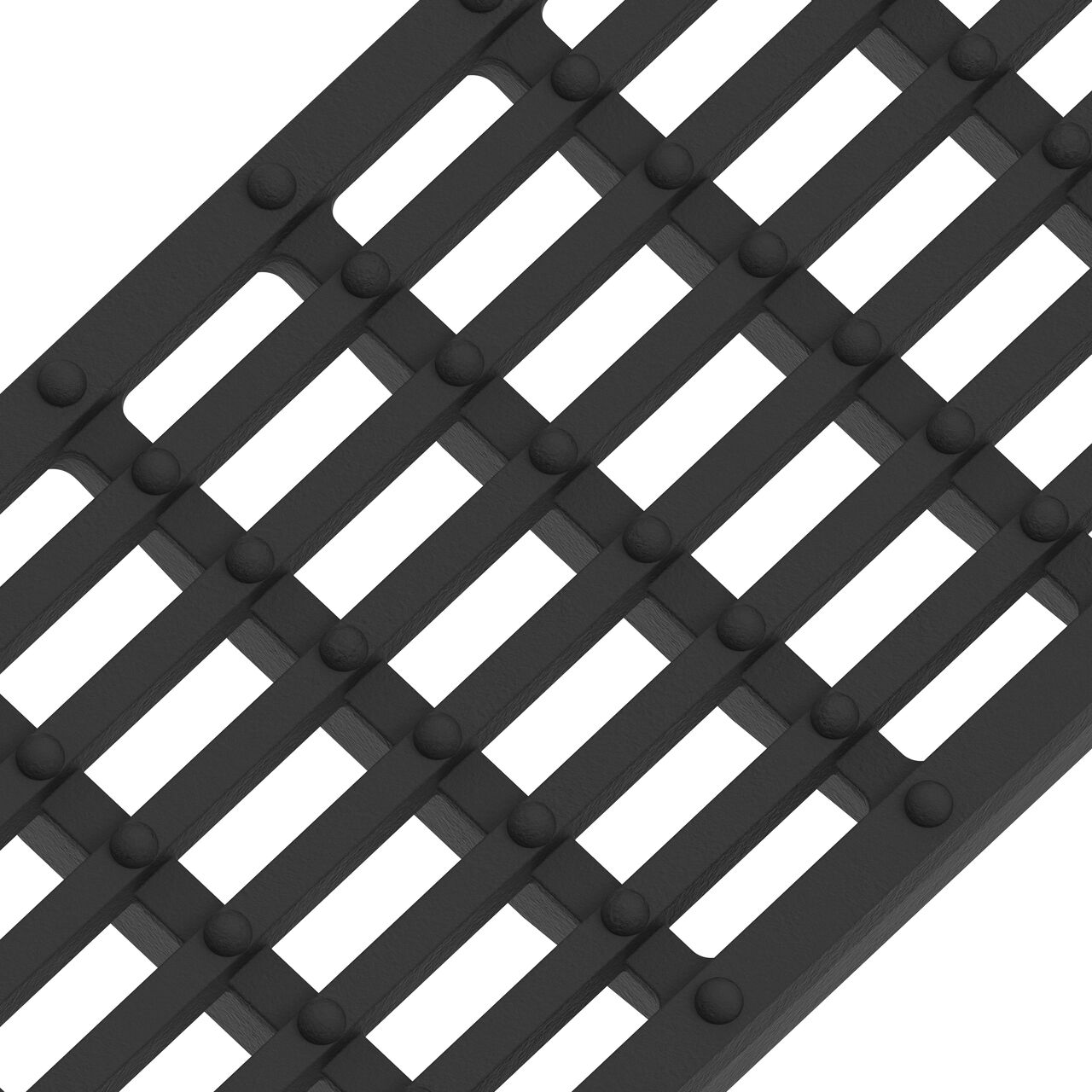

- Longitudinal bar design
- ADA compliant
