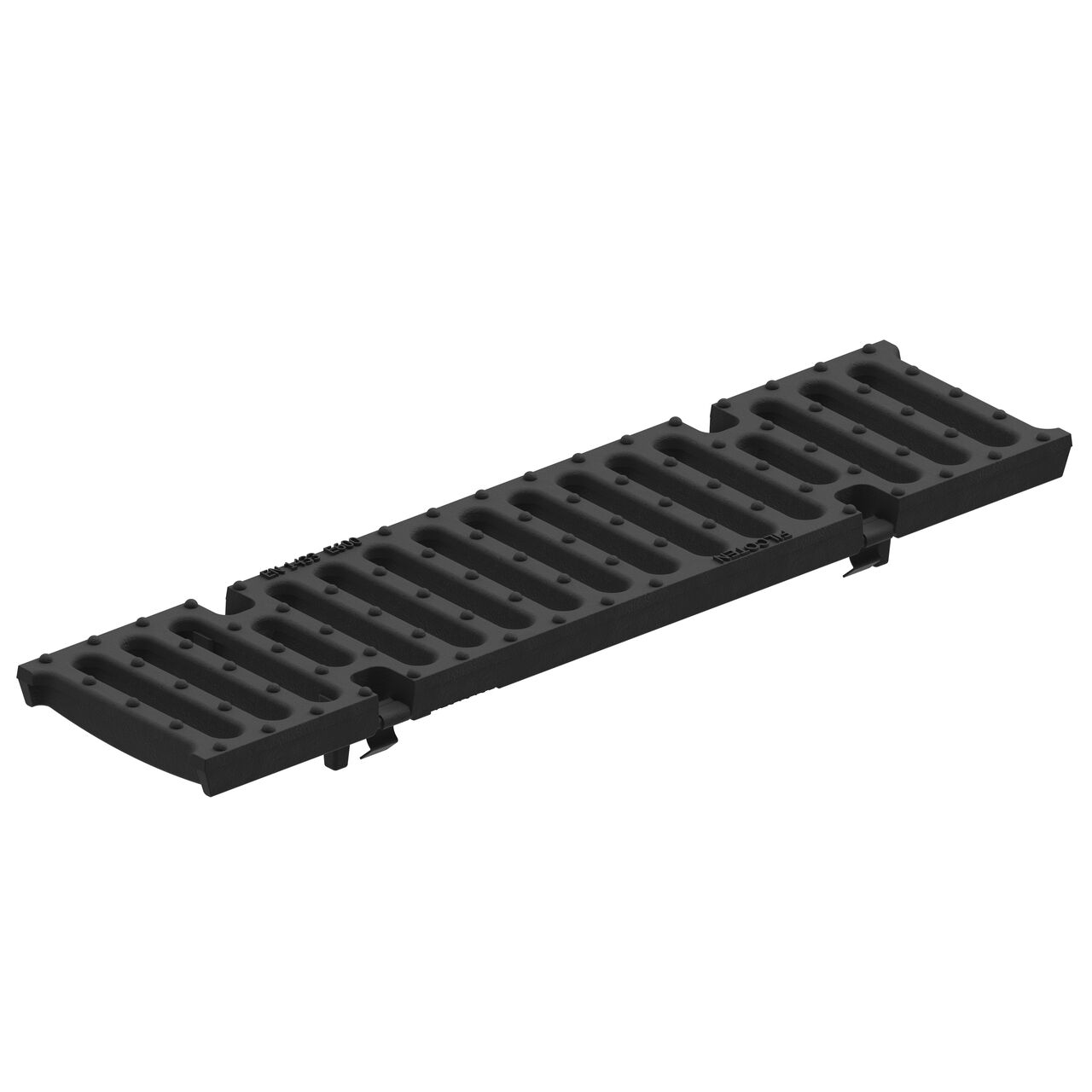

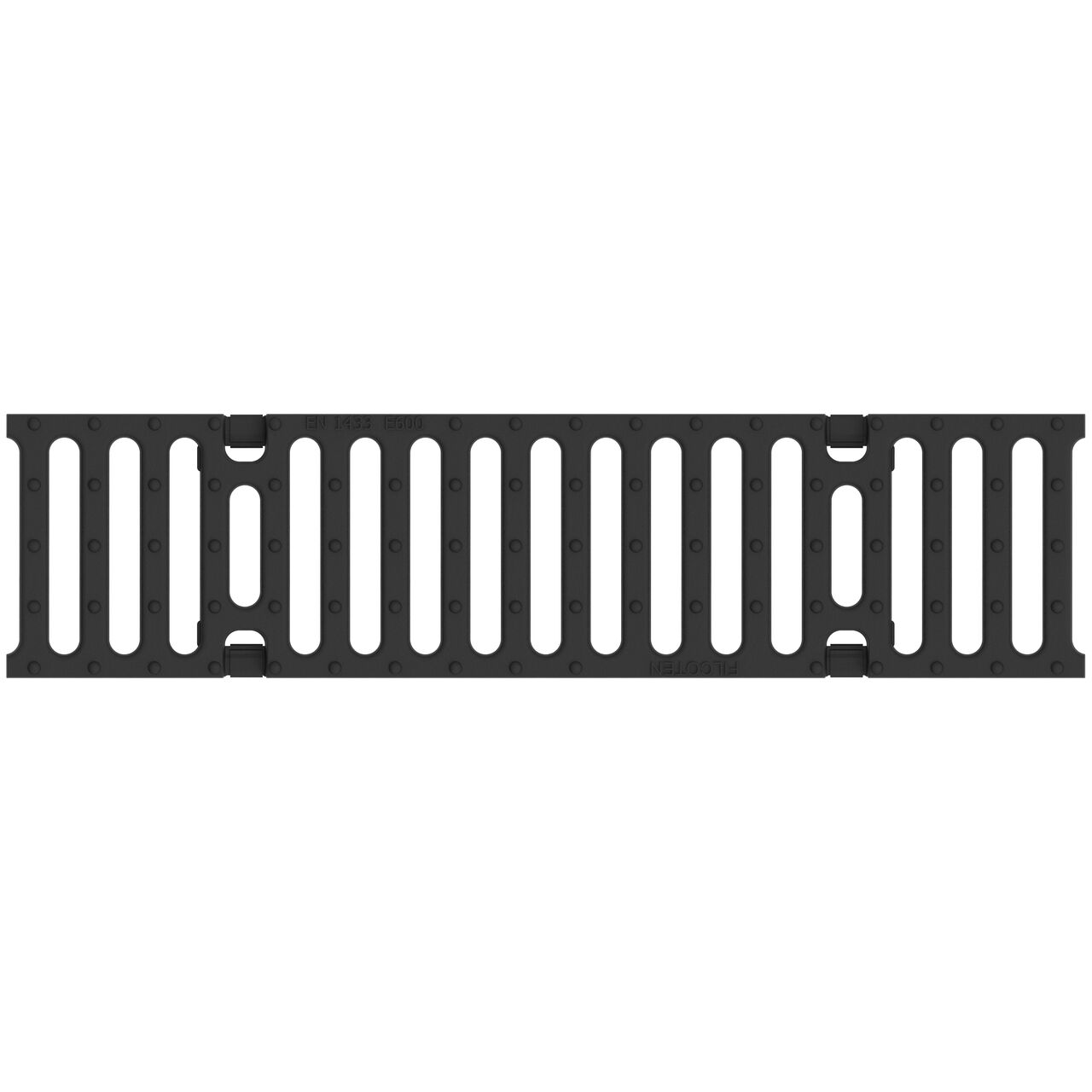

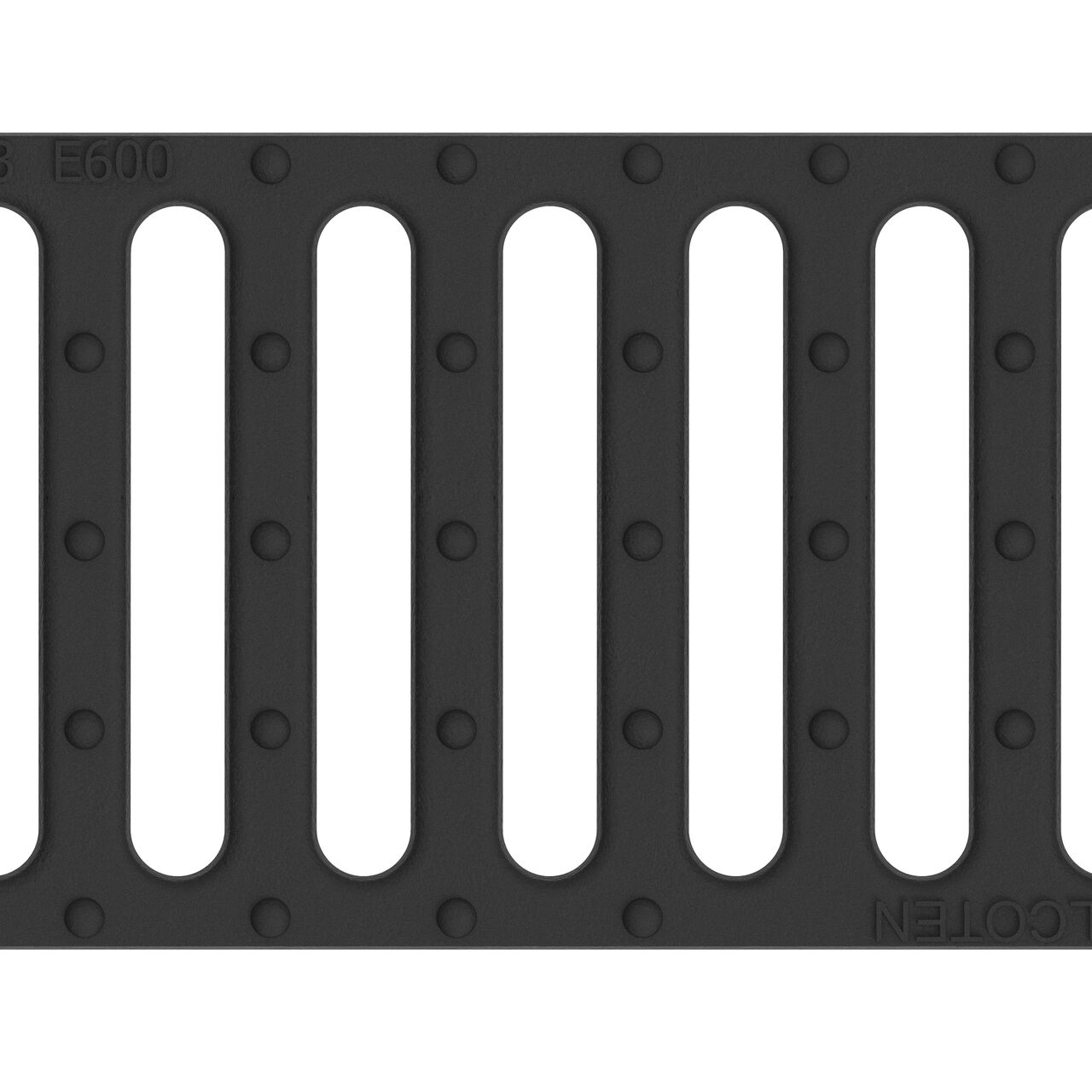

BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Slotted Design, NDS Class E Load, Ductile Iron
SKU: 17010105

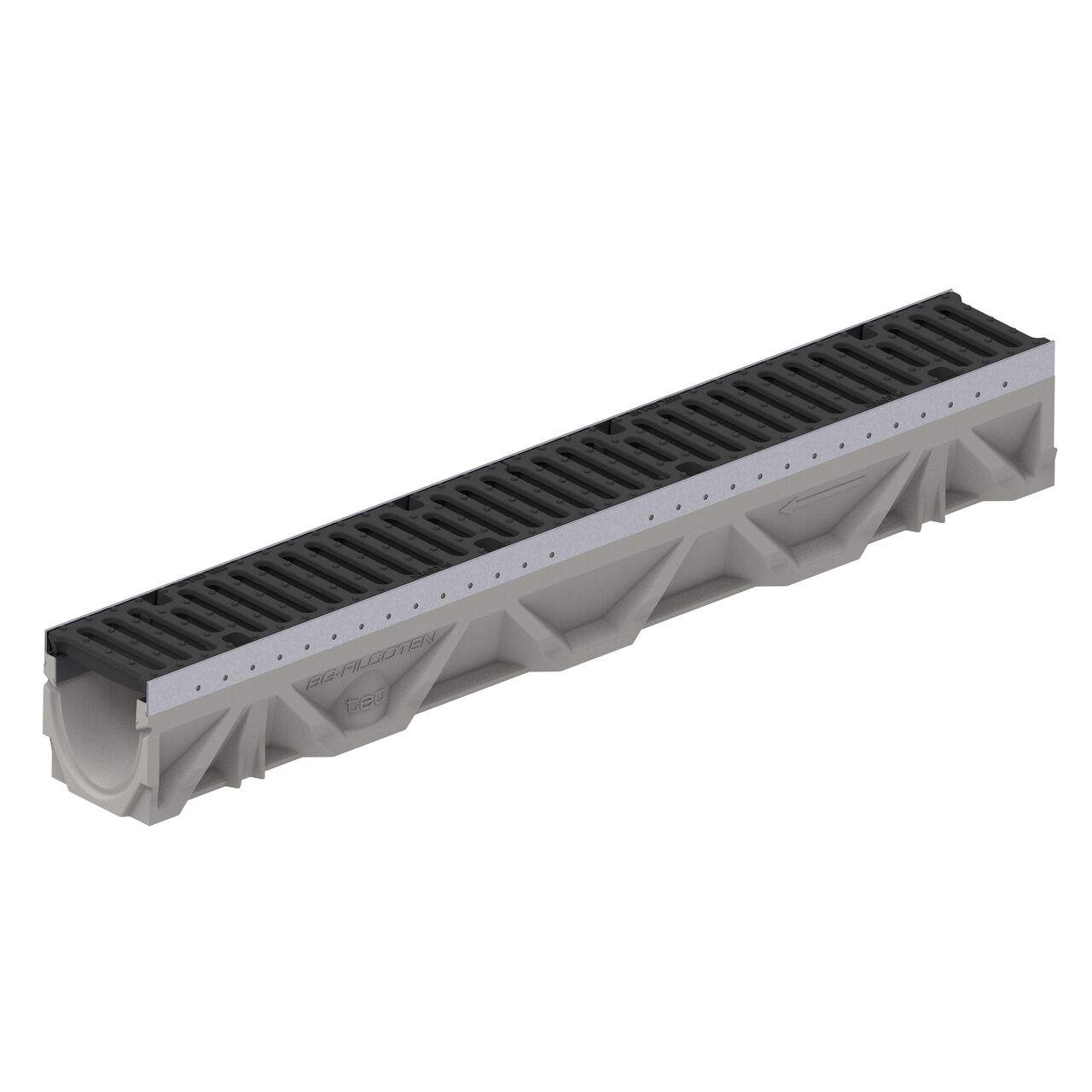

Prevent debris from entering and clogging the drainage system with the trench drain grate. This sturdy ductile iron grate, or drain cover, has a slotted design with openings that span the width of the grate and has an NDS Class E load rating when properly installed. It has an open surface area of 72 sq. in. per meter and 221 GPM flow rate. Two half-meter (19.69 in.) grates will cover one BG-FILCOTEN 100 4 in. trench drain. Iron grates are painted black to inhibit rust and over time will form a protective iron-oxide patina.
Applications:
- Prevents leaves and debris from entering the drainage system
- Ideal for pedestrian or residential areas, parks, recreational facilities, garages, and similar surfaces
- As part of a complete drainage system, the BG-FILCOTEN® trench drain grate works with the channel drain to capture stormwater runoff and convey it to drain pipe for proper release downstream
Features:

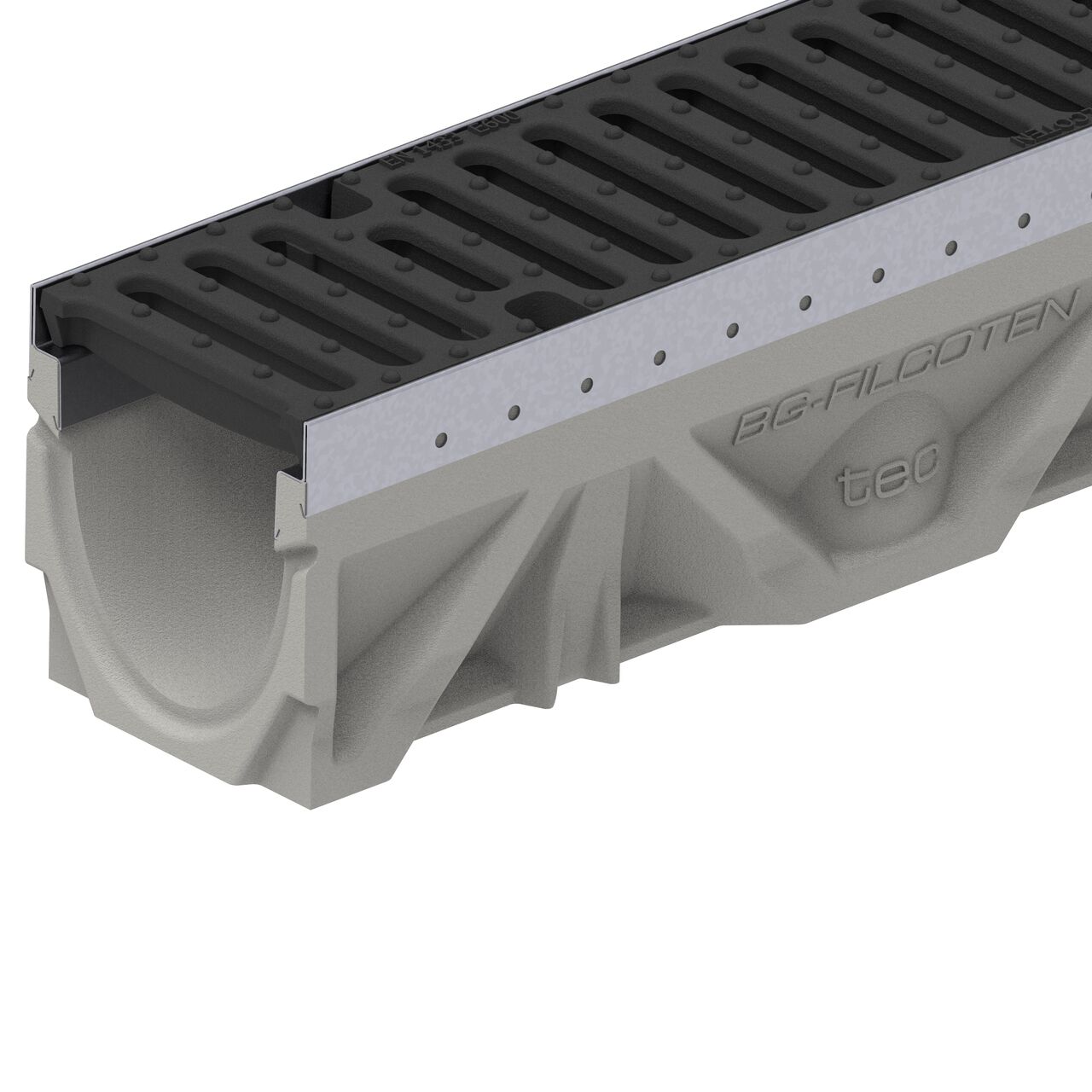

- Grate is 4.80 in. wide and 19.69 in. long, works with BG-FILCOTEN tec V and tec E channels
- Rated for NDS Class E loads, handles up to 134,800 lbs.

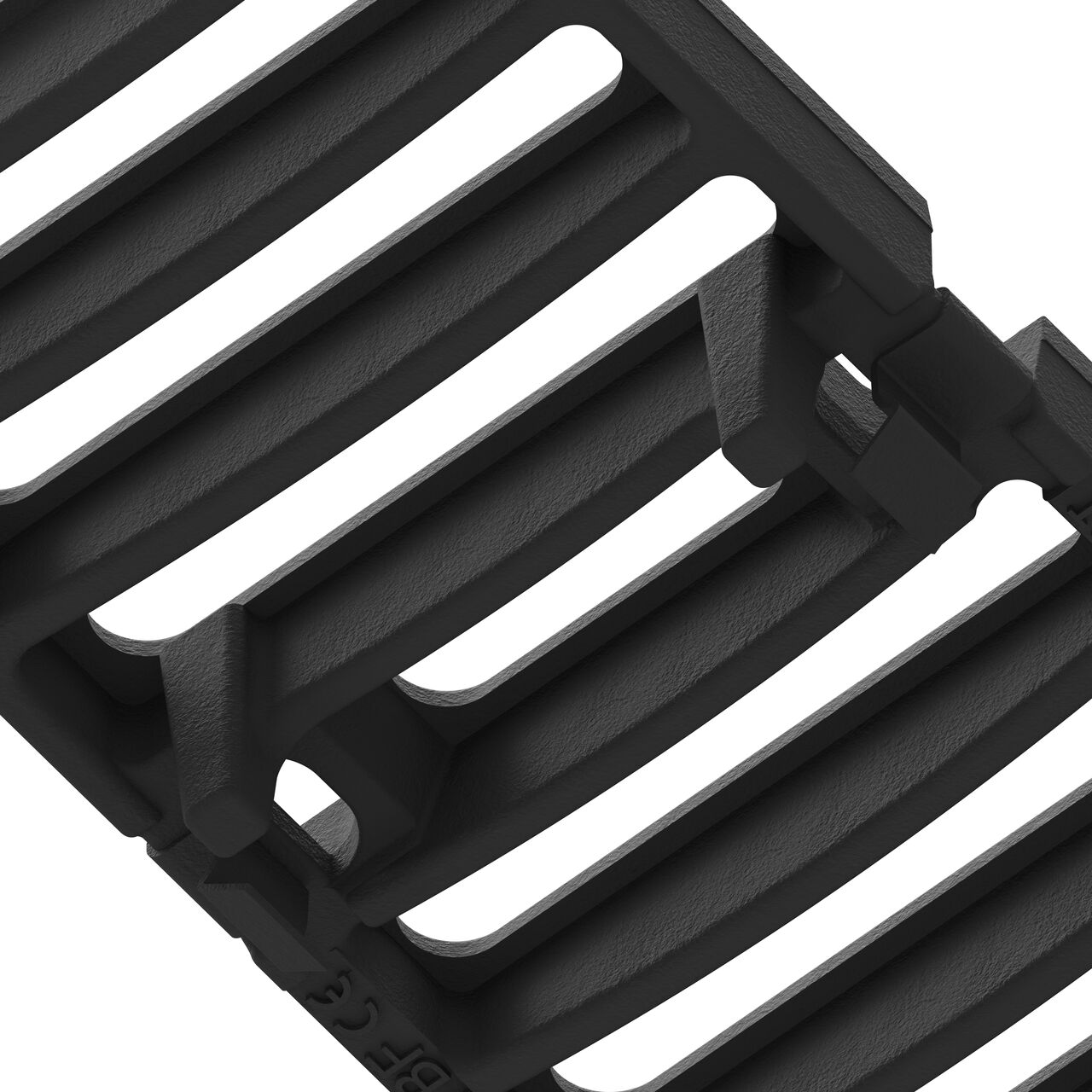

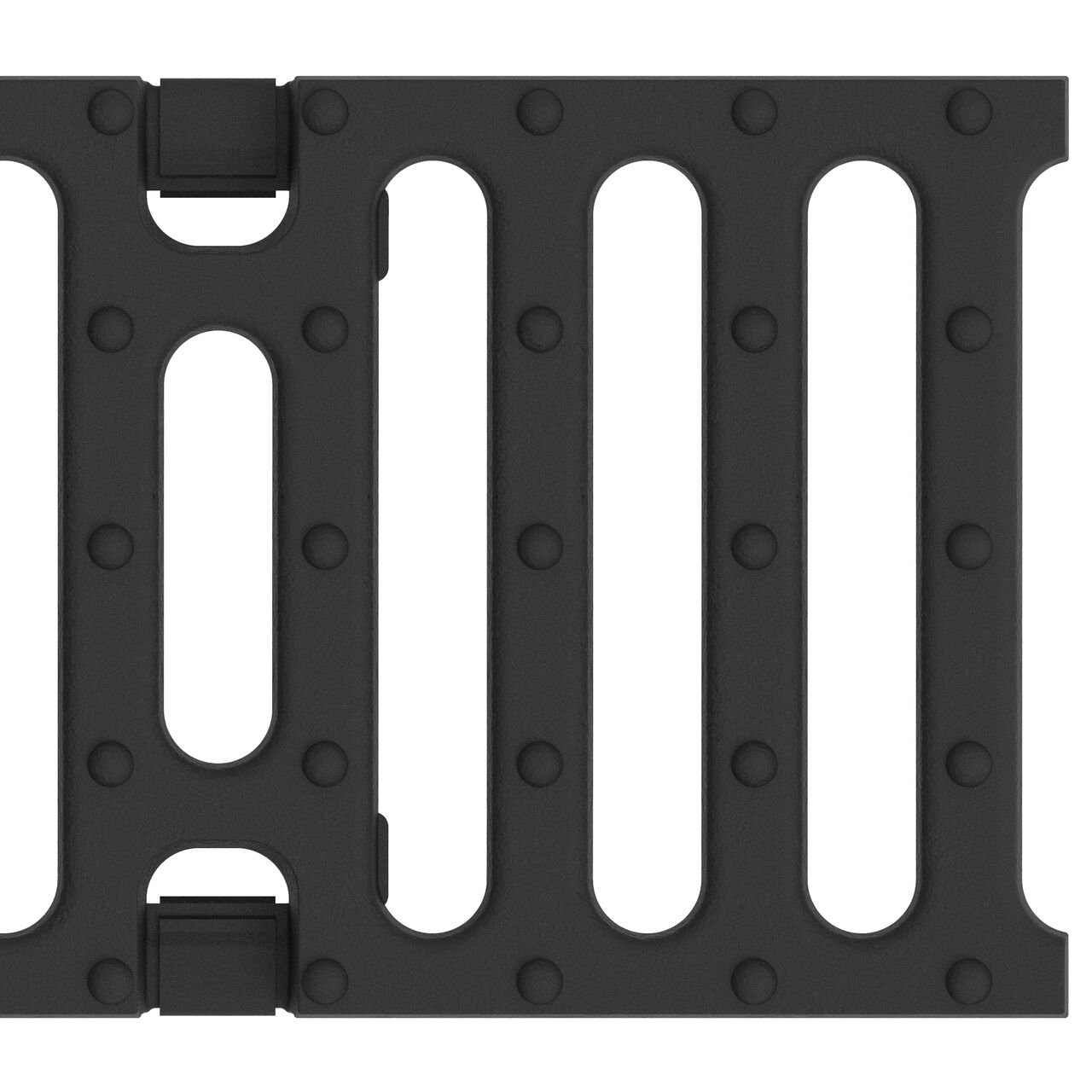

- Grate is secured to channel body with four-point snap-in locking system

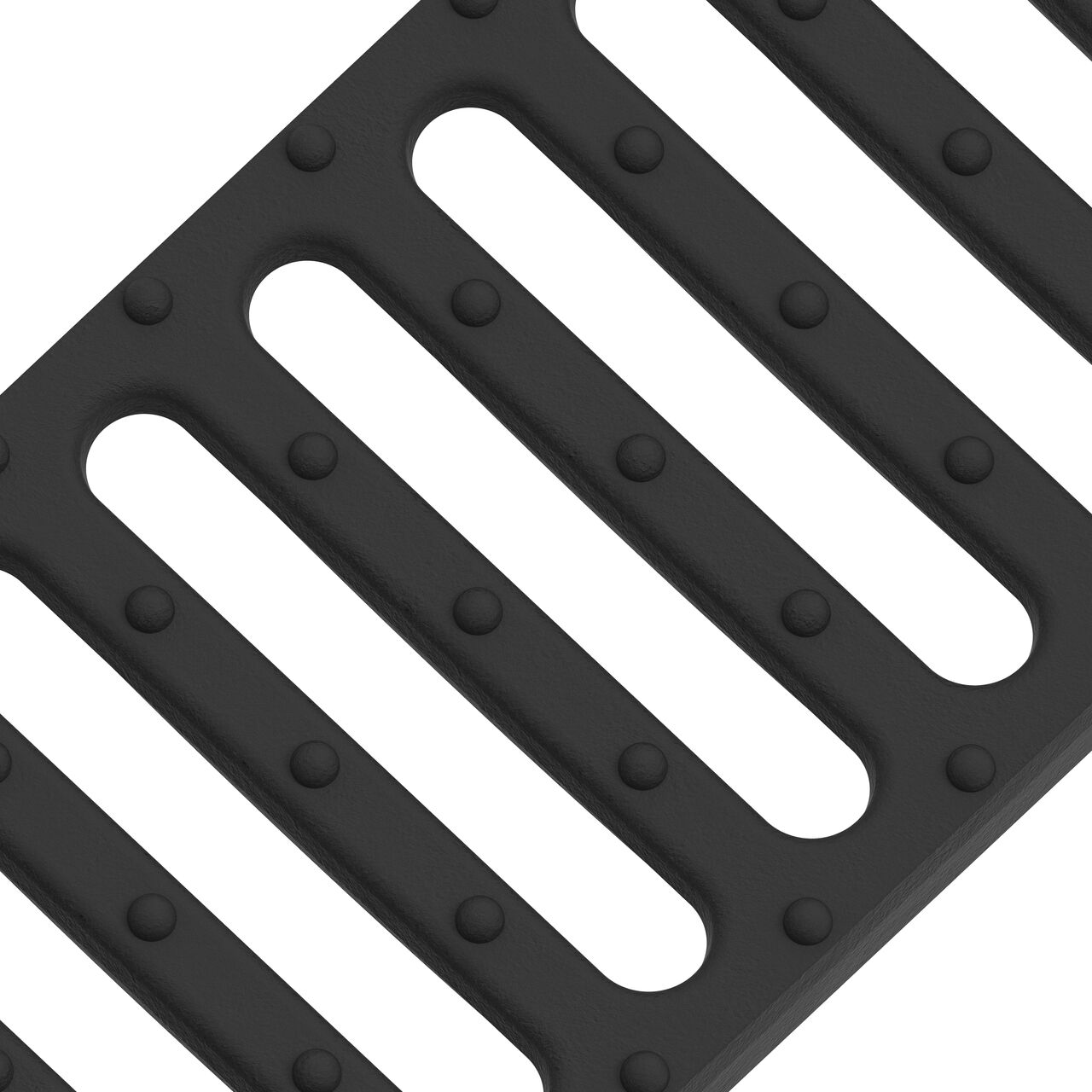

- Slotted design
