BG-FILCOTEN® 100 Trench Drain End Cap/Outlet, Galvanized Steel

SKU: 19010400

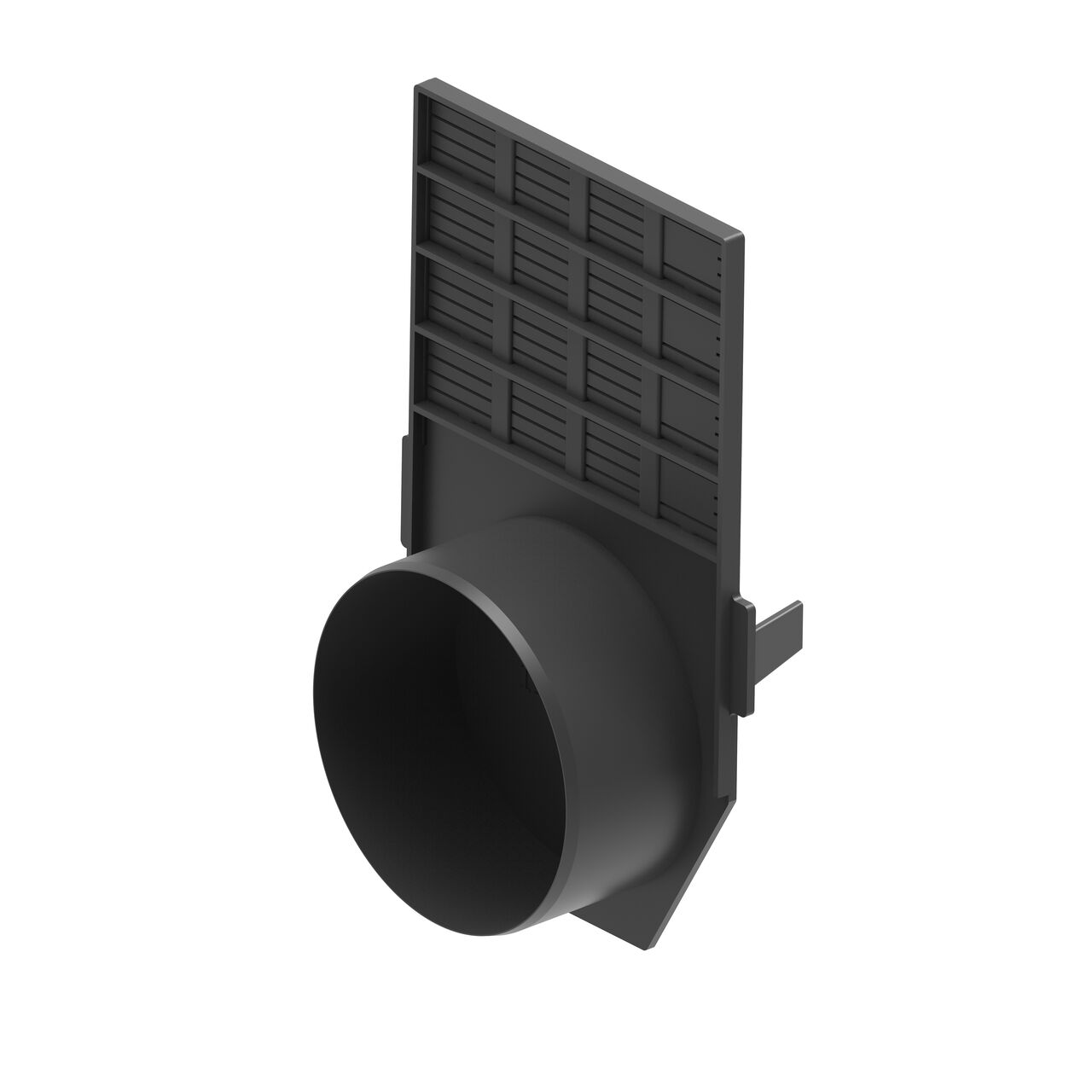

The BG-FILCOTEN® by NDS® 100 Galvanized Steel Trench Drain End Cap/Outlet can be cut to size to fit the BG-FILCOTEN® by NDS® 100 tec V or tec E channel trench drain

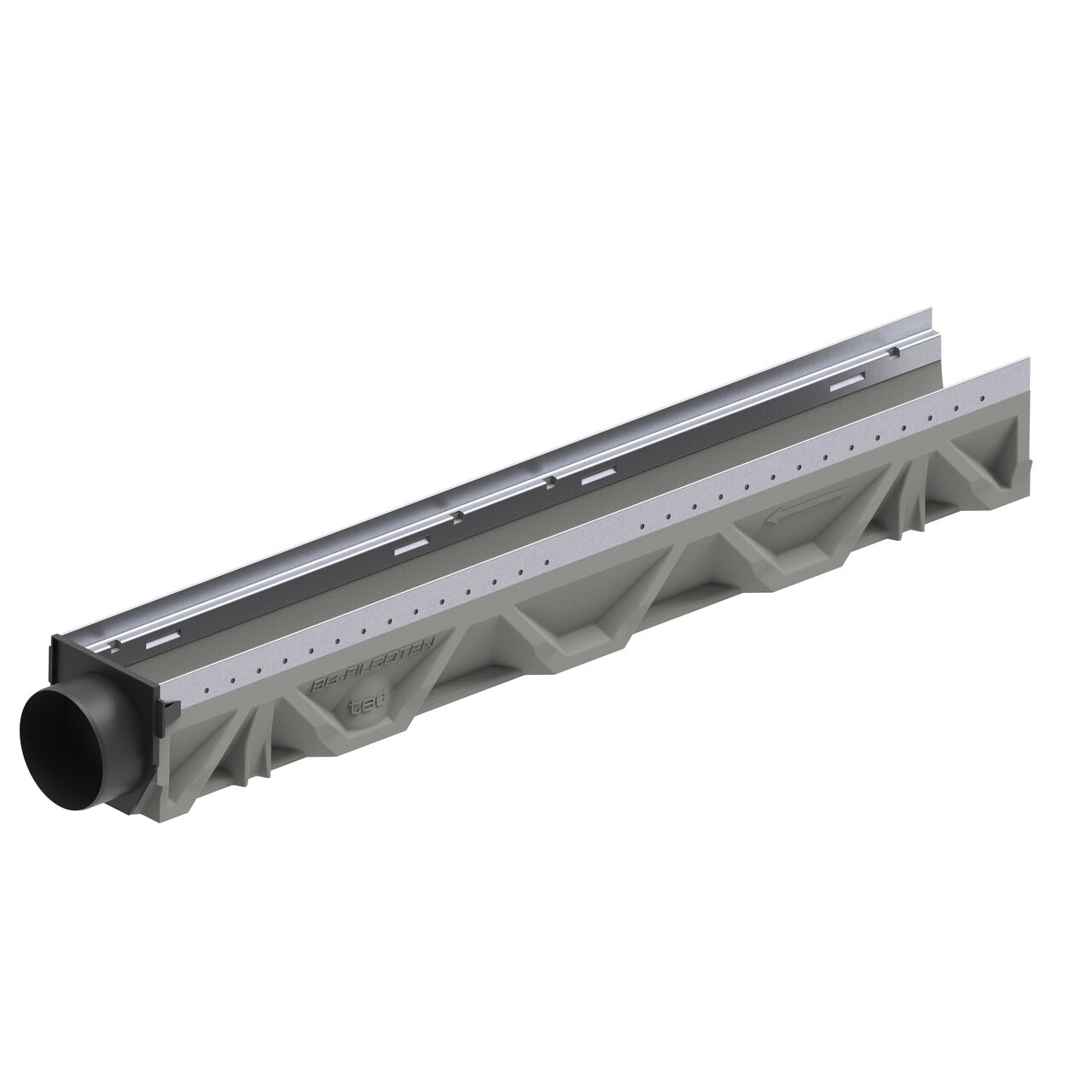

The BG-FILCOTEN® by NDS® 100 Galvanized Steel Trench Drain End Cap/Outlet installed on the outlet end of the BG-FILCOTEN® by NDS® 100 tec V or tec E channel trench drain

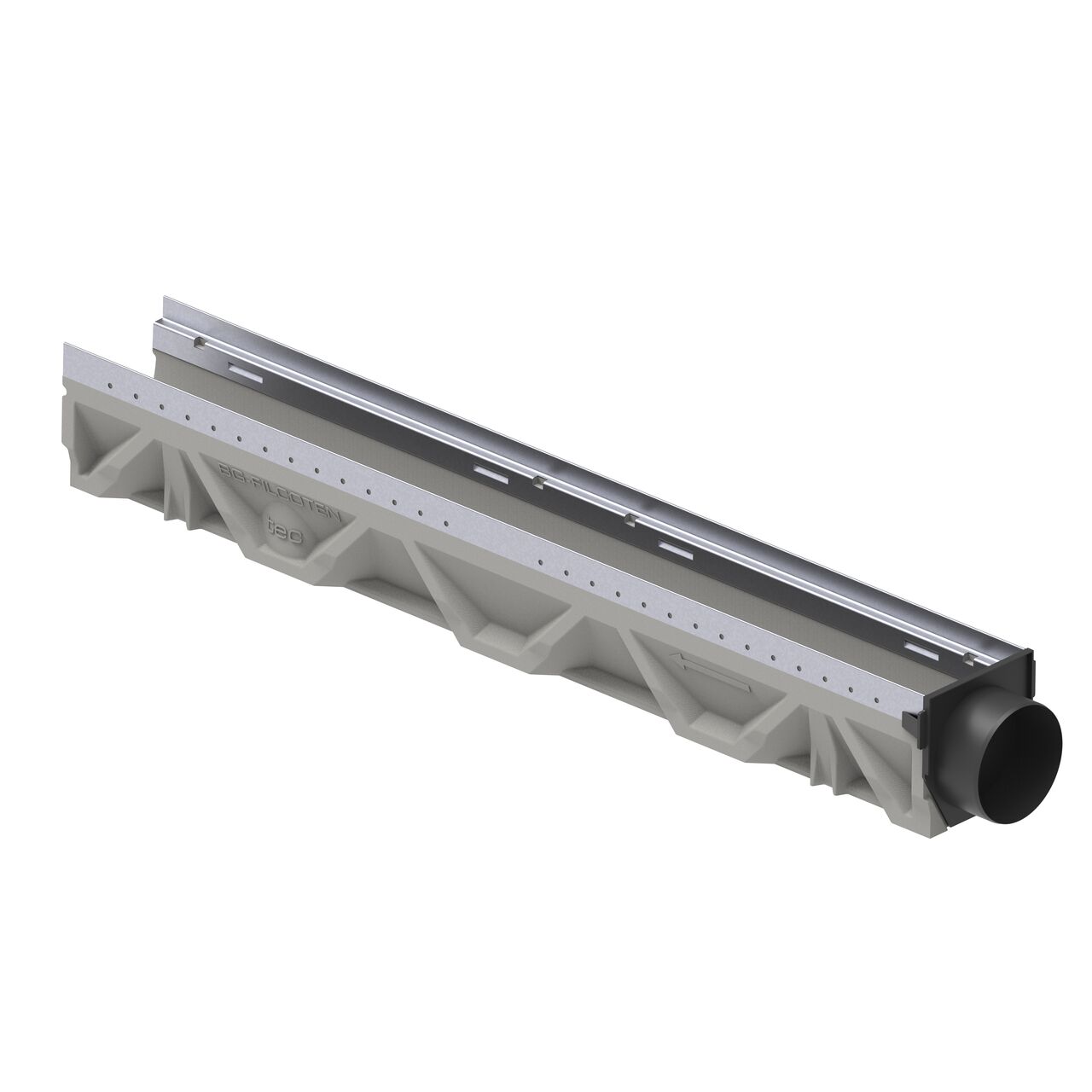

The BG-FILCOTEN® by NDS® 100 Galvanized Steel Trench Drain End Cap/Outlet installed on the inlet end of the BG-FILCOTEN® by NDS® 100 tec V or tec E channel trench drain

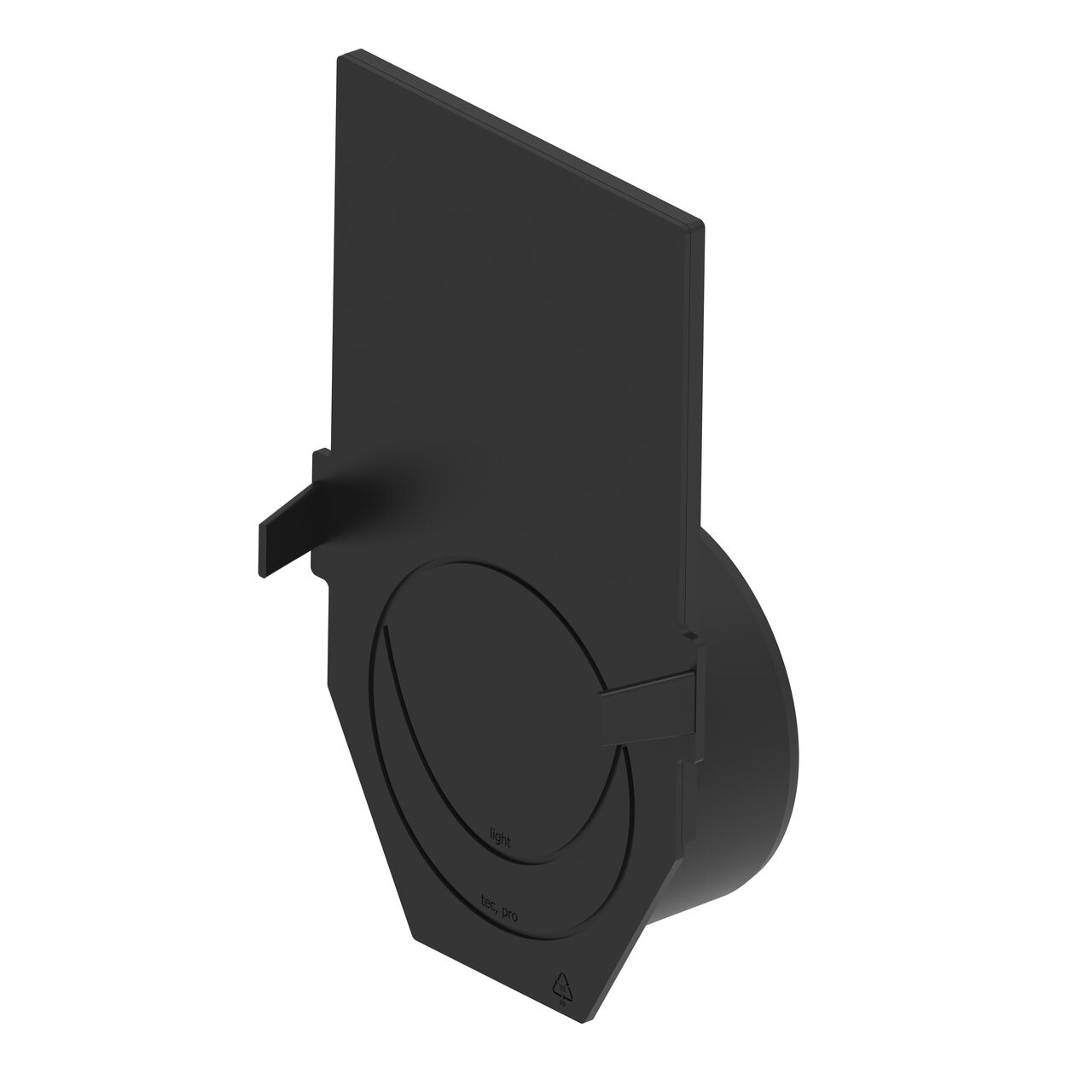

The inside view of the BG-FILCOTEN® by NDS® 100 Galvanized Steel Trench Drain End Cap/Outlet showing the cut marks to fit the BG-FILCOTEN® by NDS® 100 tec V or tec E channel trench drain
The BG-FILCOTEN® by NDS® 100 Galvanized Steel Trench Drain End Cap/Outlet can be cut to size to fit the BG-FILCOTEN® by NDS® 100 tec V or tec E channel trench drain
The BG-FILCOTEN® by NDS® 100 Galvanized Steel Trench Drain End Cap/Outlet installed on the outlet end of the BG-FILCOTEN® by NDS® 100 tec V or tec E channel trench drain
The BG-FILCOTEN® by NDS® 100 Galvanized Steel Trench Drain End Cap/Outlet installed on the inlet end of the BG-FILCOTEN® by NDS® 100 tec V or tec E channel trench drain
The inside view of the BG-FILCOTEN® by NDS® 100 Galvanized Steel Trench Drain End Cap/Outlet showing the cut marks to fit the BG-FILCOTEN® by NDS® 100 tec V or tec E channel trench drain

The End Cap/Outlet for the BG-FILCOTEN® 100 trench drain line can work in two ways. It can be used as an end cap to seal the end of the channel, or by knocking out the center it can be used as an end outlet to connect the channel to 4 in. DWV pipe. The component slides into the female end of the channel and is secured with silicone. Use the molded-in cut guides and a pair of tinsnips to cut the galvanized steel End Cap/Outlet to the desired channel depth.

Where to Buy Find a Pro

Applications:

  • Seals the end of a channel, or use knock out to create an end outlet to convey water to 4 in. DWV pipe
  • Slide into the female end of the channel or attach to male end and secure with silicone
  • As part of a complete drainage system, the BG-FILCOTEN 100 Trench Drain End Cap/Outlet can be used as an end cap to stop the flow of water, or after knocking out end can be used as an end outlet to transition from channel to drain pipe

Features:

  • Keep intact to use as an end cap
  • Knock out end to use as an end outlet to connect to 4 in. DWV pipe
  • Cut to size using reference guide marks to fit desired channel depth
  • No screws needed to install—slide part into female end, or secure to male end with silicone
