Threaded & Socket Adapters

Adapters make the transition from one pipe type or size to a different pipe type or size. Socket adapters come with one socket end, or a female end, that slips over pipe, the other end connects to tubing or dripline. Threaded adapters are commonly used to adapt a sprinkler riser to drip tubing or dripline. These adapters come with one threaded FPT end that screws onto the riser, the other end connects to tubing or dripline.

Where to Buy

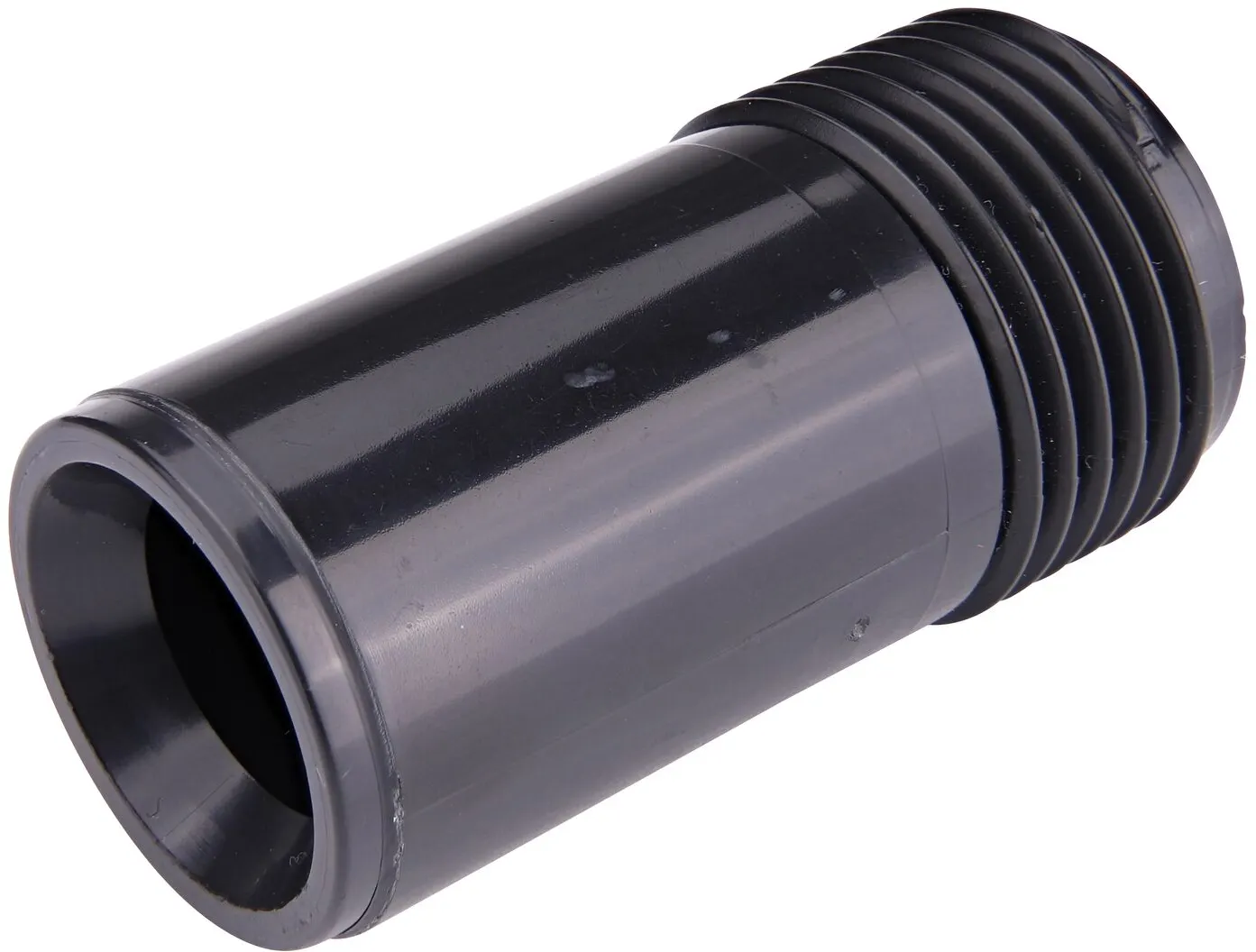

NDS 700 Series Compression Male Adapter with 3/4 in. Male Hose Thread (NDS CMAH 700)
Where to Buy

Key Features

  • Makes the transition from pipe or sprinkler riser to distribution tubing or dripline
  • Designed to work with standard drip irrigation water pressures up to 50 PSI
  • Works with NDS products and other products with compatible connection type

Applications

  • Socket adapters are used to transition from pipe to supply tubing or dripline to transport water to the area to be irrigated
  • Threaded adapters attaches to an underground sprinkler riser and are used to convert a sprinkler system to a drip irrigation system
  • As part of a complete drip irrigation system, the socket adapter or threaded adapter is used to transition from pipe or sprinkler riser to drip irrigation tubing

Installation & Maintenance

  • For the socket adapter: attach pipe to socket, insert supply tubing or dripline 700 Series to other end; solvent weld for a watertight connection
  • For the threaded adapter: remove sprinkler spray head and attach adapter; connect other end to tubing; 1/4 in. swivel fitting connects to 1/4 in. distribution tubing (A220 and A250) or 1/4 in. DuraFlo™ JR dripline
  • Periodically check for leaks or damage and repair as needed; recommended operating pressure for most fittings is up to 50 PSI

Materials & Sustainability

  • Socket adapters are made of polyvinyl chloride (PVC) treated with UV inhibitors to prevent fading and cracking
  • Threaded adapters are made of Acrylonitrile Butadiene Styrene (ABS) treated with UV inhibitors to prevent fading and cracking
  • Drip irrigation can reduce water usage by up to 70% compared to conventional sprinkler irrigation when used properly; for most drip irrigation products, water is applied precisely and at the rate the soil can accept it to prevent runoff and erosion

Product Models

Filter results
Family
Color

7 products

    Part Number
    (click for more info)    		 Description
    SAT 1/2 in. FPT X 1/4 in. Barb Adapter, 100-Pack
    SEL 250 1/2 in. FPT X 1/4 in. Barb Swivel Elbow, 100-Pack
    ST 250 1/2 in. FPT X 1/4 in. Barb Swivel Tee, 100-Pack
    REA Emitter Socket Adapter, 1/2 in. FPT X 1/4 in. Emitter Port, 100-Pack
    SAM-0500 Male Sprinkler Adapter, 1/2 in. IPS FPT X 1/2 in. MPT, 1 in. Long, Black
    SA 700 PVC Socket Adapter, 1/2 in. Pipe X 3/4 in. Socket, 100-Pack
    RA 250 Riser Extension Adapter, 1/2 in. FPT X 1/2 in. MPT with 1/4 in. Swivel Barb Elbow, 25-Pack

    Specifications & Documents
