Compression Fittings
Compression fittings connect sections of tubing or dripline with a compression ring, where an internal barb compresses the inserted tube and holds it in place. Swivel compression fittings have an end that rotates to prevent tubing from kinking.
Key Features
- Creates a watertight connection
- Internal barb compresses the inserted tubing to hold it in place
- Unlike a barbed fitting, the tubing is not stretched out to connect to the fitting
- For compression fittings with swivel: built-in swivel allows part to be screwed or unscrewed without kinking or twisting the tubing
- Compression fittings are designed to work with standard drip irrigation water pressures up to 50 PSI
Applications
- Use fittings to set up a new drip irrigation system, expand an existing system, or make repairs
- Use for subsurface or on grade installation; works with tubing or dripline to transport water to trees shrubs, flower beds, groundcover, vegetable gardens, plants in pots, planter boxes, and hanging baskets
- As part of a complete drip irrigation system, the compression coupling connects sections of tubing to transport water to the area to be irrigated; cap closes off the end of the line to stop the flow of water
Installation & Maintenance
- Cut drip tubing straight for tight fit; rock end of tubing back and forth while pushing into compression fitting, where an internal barb will compress tube to hold in place
- For easier tubing insertion, soak rigid tubing end in hot water or leave out in sun
- Periodically check for leaks or damage and repair as needed; recommended operating pressure for most fittings is up to 50 PSI
Materials & Sustainability
- Fitting made of Acrylonitrile Butadiene Styrene (ABS) treated with UV inhibitors to prevent fading and cracking
- Drip irrigation can reduce water usage by up to 70% compared to conventional sprinkler irrigation when used properly; for most drip irrigation products, water is applied precisely and at the rate the soil can accept it to prevent runoff and erosion
Product Models
Filter results
Family
Color
48 products
No results found.
Your filters may be too narrow.
| Part Number (click for more info) |
Description |
|---|---|
| RSELW 700 | 1/2 in. FPT Swivel Riser Elbow 700 Series Compression Adapter with Washer, 50-Pack |
| RSELW 710 | 1/2 in. FPT Swivel Riser Elbow 710 Series Compression Adapter with Washer, 50-Pack |
| RSTW 700 | 1/2 in. FPT Swivel Riser Tee 700 Series Compression Adapter with Washer, 40-Pack |
| RSTW 710 | 1/2 in. FPT Swivel Riser Tee 710 Series Compression Adapter with Washer, 40-Pack |
| CMAP 5-600 | 1/2 in. MPT 600 Series Compression Adapter, 50-Pack |
| CMAP 5-700 | 1/2 in. MPT 700 Series Compression Adapter, 50-Pack |
| CMAP 5-710 | 1/2 in. MPT 710 Series Compression Adapter, 50-Pack |
| CSTW 600 | 3/4 in. FHT Swivel 600 Series Compression Tee with Washer, 15-Pack |
| CSA 700 | 3/4 in. FHT Swivel 700 Series Compression Adapter with 100-Mesh Filter Washer, 25-Pack |
| CSAW 700 | 3/4 in. FHT Swivel 700 Series Compression Adapter with Washer, 25-Pack |
| CSEL 700 | 3/4 in. FHT Swivel 700 Series Compression Elbow with 100-Mesh Filter Washer, 25-Pack |
| CSELW 700 | 3/4 in. FHT Swivel 700 Series Compression Elbow with Washer, 25-Pack |
| CST 700 | 3/4 in. FHT Swivel 700 Series Compression Tee with 100-Mesh Filter Washer, 15-Pack |
| CSAW 710 | 3/4 in. FHT Swivel 710 Series Compression Adapter with Washer, 25-Pack |
| CSEL 710 | 3/4 in. FHT Swivel 710 Series Compression Elbow with 100-Mesh Filter Washer, 25-Pack |
| CSA 900 | 3/4 in. FHT Swivel 900 Series Compression Adapter with 100-Mesh Filter Washer, 25-Pack |
| CSAW 900 | 3/4 in. FHT Swivel 900 Series Compression Adapter with Washer, 25-Pack |
| CSTW 900 | 3/4 in. FHT Swivel 900 Series Compression Tee with Washer, 25-Pack |
| CMAH 700 | 3/4 in. MHT 700 Series Compression Adapter, 50-Pack |
| CMAP 700 | 3/4 in. MPT 700 Series Compression Adapter, 50-Pack |
| CMAP 710 | 3/4 in. MPT 710 Series Compression Adapter, 50-Pack |
| CMAP 900 | 3/4 in. MPT 900 Series Compression Adapter, 25-Pack |

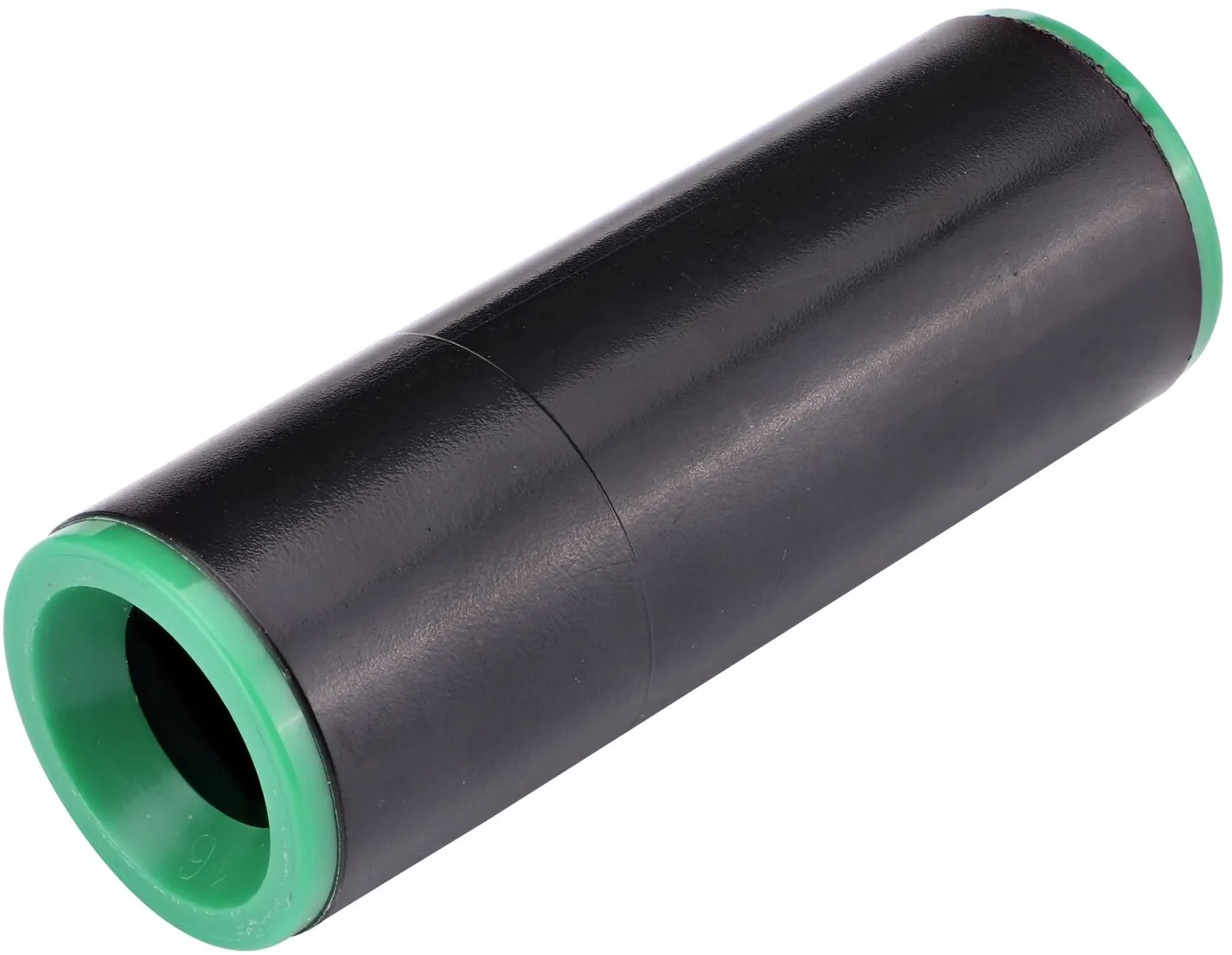

| CC 600 | Compression Coupling, 600 Series, 25-Pack |
| CC 700 | Compression Coupling, 700 Series, 25-Pack |
| CC 710 | Compression Coupling, 710 Series, 25-Pack |
| CC 900-71 | Compression Coupling, 900 Legacy Series, 25-Pack |
| CC 900 | Compression Coupling, 900 Series, 25-Pack |
| CEL 600 | Compression Elbow, 600 Series, 25-Pack |
| CEL 700 | Compression Elbow, 700 Series, 25-Pack |
| CEL 710 | Compression Elbow, 710 Series, 25-Pack |
| CEL 900LG | Compression Elbow, 900 Legacy Series, 25-Pack |
| CEL 900 | Compression Elbow, 900 Series, 25-Pack |
| CEP 600 | Compression End Cap 600 Series, 25-Pack |
| CEP 710 | Compression End Cap 710 Series, 25-Pack |
| CEP 900 | Compression End Cap 900 Series, 25-Pack |
| CT 600 | Compression Tee, 600 Series, 15-Pack |
| CT 700 | Compression Tee, 700 Series, 15-Pack |
| CT 700/02 | Compression Tee, 700 Series, 2-Pack |
| CT 710 | Compression Tee, 710 Series, 15-Pack |
| CT 900LG | Compression Tee, 900 Legacy Series, 25-Pack |
| CT 900 | Compression Tee, 900 Series, 25-Pack |
| CA 250 | PVC Compression Ring, 1/2 in. Slip X 250 Series Adapter, 100-Pack |
| CA 600 | PVC Compression Ring, 1/2 in. Slip X 600 Series Adapter, 100-Pack |
| CA 700 | PVC Compression Ring, 1/2 in. Slip X 700 Series Adapter, 100-Pack |
| CA 710 | PVC Compression Ring, 1/2 in. Slip X 710 Series Adapter, 100-Pack |
| CA 900 | PVC Compression Ring, 3/4 in. Slip X 900 Series Adapter, 100-Pack |
| RCC 7090 | Reducing Compression Coupling, 900 Series to 700 Series, 25-Pack |
| RCT 997 | Reducing Compression Tee, 700 Series to Dual 600 Series, 25-Pack |
