Single Wall - Adapters & Reducers
The single wall reducers allow different pipe diameters to be connected together. The Single wall adapters allow dissimilar pipe types to be connected together.
-
Downspout Adapter
-
Table id: 87a863cf-be8c-476a-8255-de7afb8aeda6
Main sku: 0465AA
Click to ZoomPipe Diameter x Downspout Dimension in (mm) Package Quantity Product Code 3" x 3.25" x 2.5" (75 x 81 x 62.5) 24 0364AA 4" x 3.25" x 2.5" (100 x 81 x 62.5) 24 0464AA 4" x 4.25" x 3" (100 x 106 x 75) 20 0465AA 4" x 2.56" x 2.56" (100 x 63 x 63) 24 0466AA 6" x 4" x 6" (150 x 100 x 150) 1 0664AA
Standard Details/Drawings
-
-

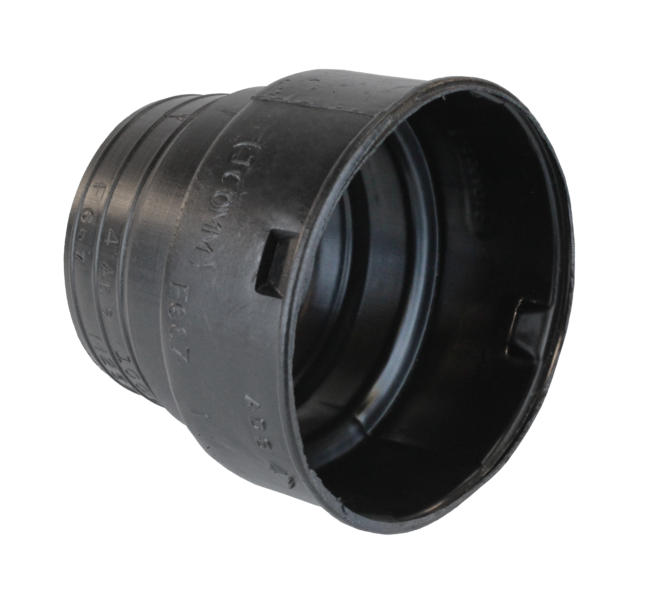

Dissimilar Snap Adapter
-
Sewer & Drain
Table id: d4db5537-b8fc-4817-8b40-f6722b8f06af
Main sku: 0467AA
Click to ZoomDiameter In (mm) Package Quantity Product Code 4" (100) 24 0467AA
Standard Details/Drawings
-

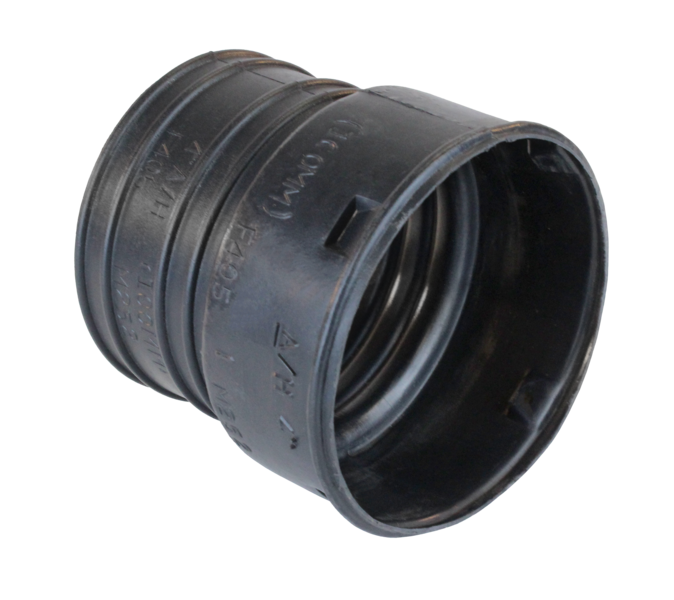

Septic Tank
Table id: 3ae0a9a1-9452-4a67-8478-4edde0dad5e5
Main sku: 0463AA
Click to ZoomDiameter In (mm) Package Quantity Product Code 4" (100) 24 0463AA
Standard Details/Drawings
-
Clay
Table id: d4cad647-e892-4496-9423-4b9f8828173c
Main sku: 0462AA
Click to ZoomDiameter In (mm) Package Quantity Product Code 3" (75) 24 0362AA 4" (100) 24 0462AA 5" (125) 24 0562AA 6" (150) 11 0662AA 8" (200) 9 0862AA
Standard Details/Drawings
-
