Single Wall Pipe

The Single Wall corrugated HDPE pipe is ideal for drainage projects where flexibility, light weight and low cost are important. Our customers find that this corrugated pipe is an economical, easy–to–install solution whether the project is agricultural, retail or highway related. Applications include downspouts run off, foundation and window well drains, and roadway culverts.

Product Specifications

Singlewall stick long view
Heavy Duty Pipe
Diameters Available3"-15" (76-380mm)
Lengths AvailableSee HDPE Products Catalog
Joint PerformanceSoil Tight
Joining SystemsCleated bell, split, internal and snap couplers
SpecificationsASTM F667



Highway Pipe
Diameters Available3"-15" (101-380mm)
Lengths AvailableSee HDPE Products Catalog
Joint PerformanceSoil Tight
Joining SystemsCleated bell, split, internal and snap couplers
SpecificationsAASHTO M252 - 3-10" (75-250 mm)
AASHTO M294 - 12-15" (300-375 mm)



Channel Muck Pipe
Diameters Available4", 5" & 6" (100-150mm)
Lengths AvailableSee HDPE Products Catalog
Joint PerformanceSoil Tight
Joining SystemsCleated bell, split, internal and snap couplers
SpecificationsASTM F667



Product Details

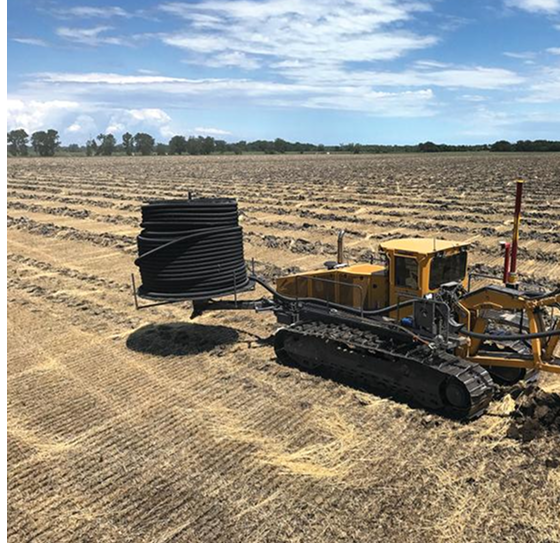

Tile Installed in Wheat Stubble
Larger Diameter Singlewall Installed
Singlewall Pipe Installation
Singlewall Installed in Standing Corn Field
Singlewall Stacks Solid Pipe
Singlewall Stacked
Singlewall Agriculture Installation Perforated Pipe
Tile Installed in Wheat Stubble

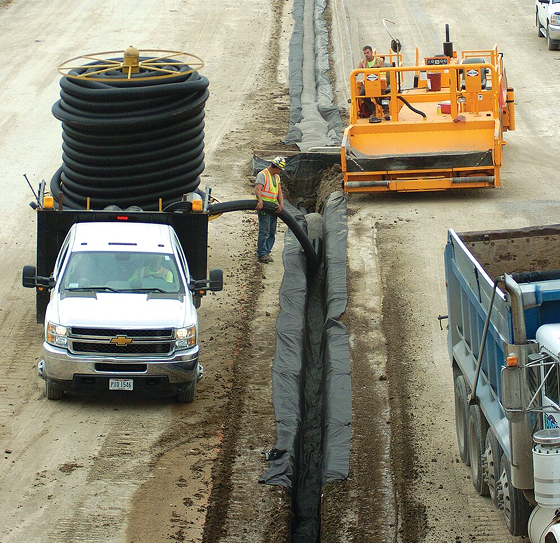

Larger Diameter Singlewall Installed
Singlewall Pipe Installation
Singlewall Installed in Standing Corn Field
Singlewall Stacks Solid Pipe
Singlewall Stacked
Singlewall Agriculture Installation Perforated Pipe

Overview

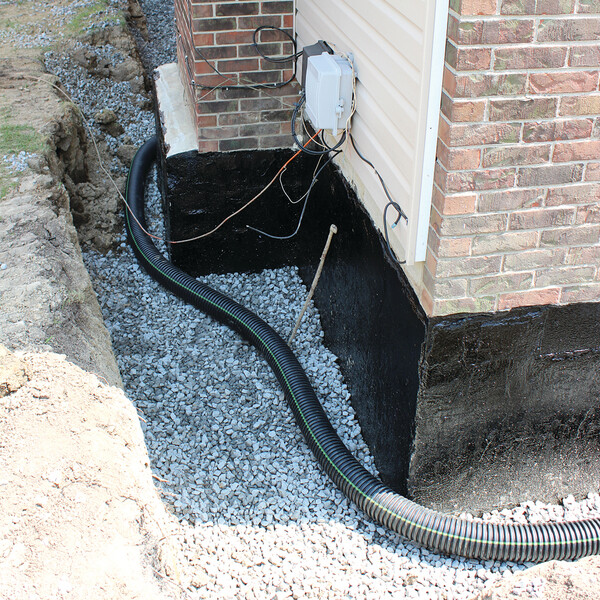

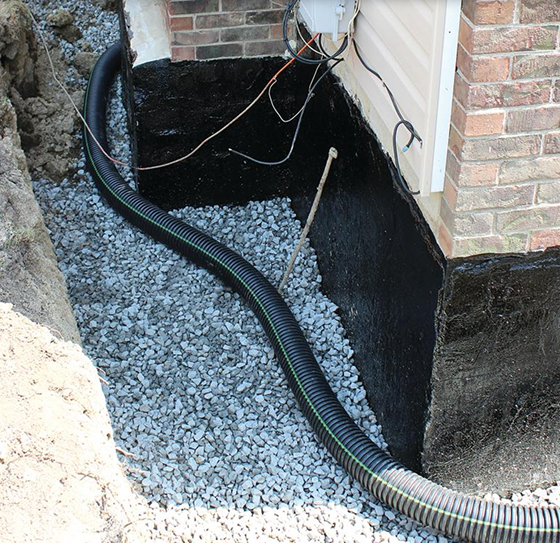

Single Wall corrugated HDPE pipe keeps homes, farms, golf courses, parks and playing fields free from excess underground moisture and flooding. This product has many different residential applications including: downspout roof drainage, landscaping subdrainage, pavement underdrains and foundation drains. Some additional applications include highway edge drains, culverts and other construction uses where durability and large scale savings are a priority.

Features and Benefits

Available in a variety of lengths and diameters to service all your needs

  • Inert HDPE material is resistant to the effects of chemicals, abrasion, hot soils, and effluent
  • Lightweight product for best-installed cost and maximizing delivery and installation efficiencies
  • Readily available in convenient locations to service local projects
  • Annular corrugated single wall
  • 3"- 15" (75-381 mm)
  • 100'-5,500' (30-1676 m) coils, depending on pipe diameter. 10'-20' (3-6 m) sticks
  • Internal, external snap or split band couplers
  • ASTM F667 and AASHTO M252, Type C or CP - 3-10" (75-250 mm)
    AASHTO M294, Type C or CP - 12-15" (300-375 mm)

Build America, Buy America (BABA) Act

ADS Single Wall Highway pipe, manufactured in accordance with AASHTO M252 or AASHTO M294, complies with the requirements in the Build America, Buy America (BABA) Act.



ADS Employee with Coils of Pipe

Single Wall HDPE Pipe Products Available

Single Wall Heavy Duty Pipe is a durable, corrugated solution built for general-purpose drainage applications. Designed for strength and ease of installation, it performs well in residential developments, commercial sites, agricultural fields, and temporary drainage needs. Its lightweight construction enables efficient handling and fast deployment across a wide range of jobsite conditions. Available with a fabric sock to prevent infiltration of the surrounding soils.

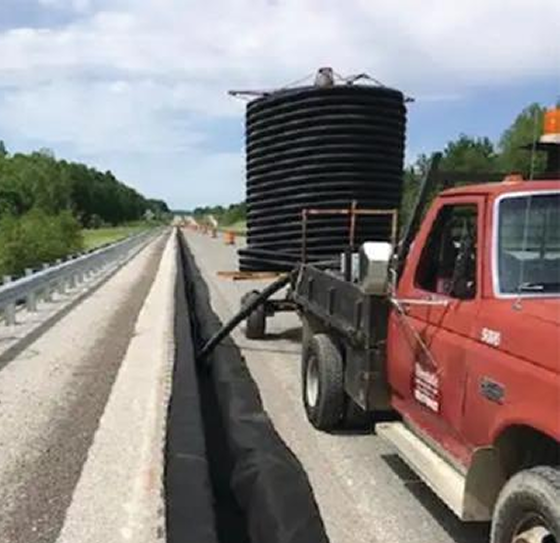

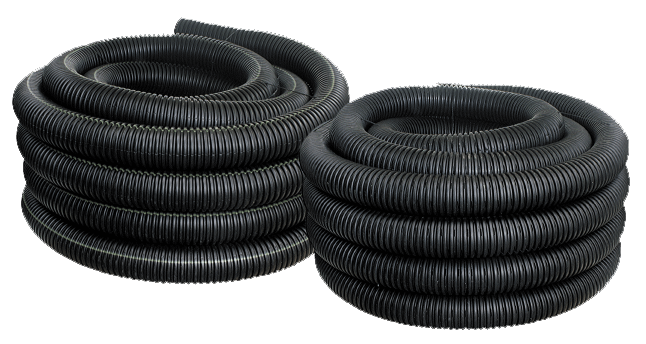

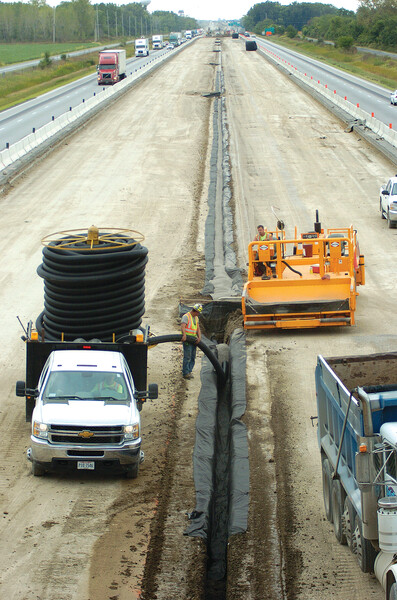

Single Wall Highway Pipe, manufactured to meet AASHTO standards, is a flexible corrugated drainage solution engineered for gravity flow applications in public infrastructure projects. Made from high-density polyethylene, it offers strength, chemical resistance, and long-term performance in demanding soil conditions. Lightweight and easy to handle, it enables fast, low-cost installation while meeting DOT and municipal performance criteria. Common applications include culverts, edge drains, and subsurface stormwater collection systems. Available with a fabric sock to prevent infiltration of the surrounding soils.

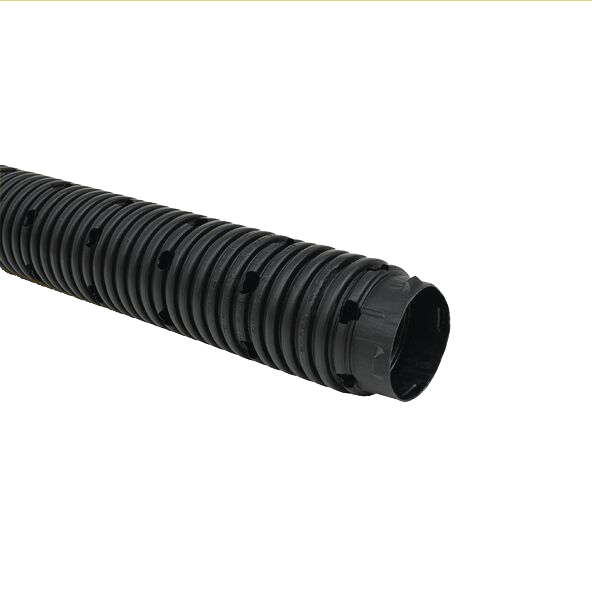

Single Wall Channel Muck Pipe is the ideal drainage pipe solution for boggy soil conditions. Designed for soils containing peat or muck, the Single Wall pipe is extruded with larger holes or oblong perforations oriented in three rows. Additionally, the pipe is encased in a sock to prevent infiltration of the surrounding soils, and connected using self-coupling stubs located at the ends of each pipe section for efficient assembly and installation.
