Aquabox Inspection Port Detail

Filename:
Aquabox Inspection Port Detail.dwg

Aquabox Inspection Port Detail

This document describes the Aquabox Inspection Port Detail. It includes details of components in a cross section.

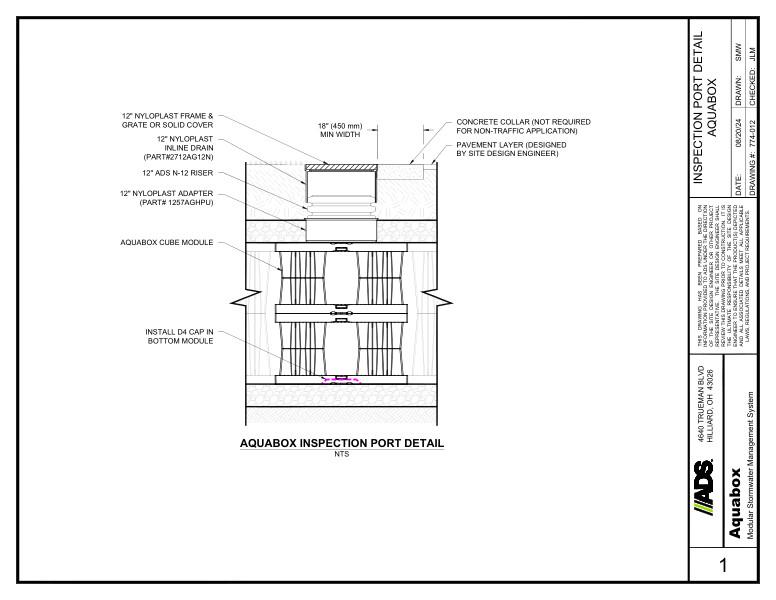

The Aquabox Inspection Port Detail shows the minimum width, 12” Nyloplast frame/grate, 12” Nyloplast inline drain, 12” ADS N-12 riser, 12” Nyloplast adapter, Aquabox cube module, concrete collar, pavement layer, Flexstorm Pure used with open grate and install D4 cap in bottom of module.
