This document is the EcoPure Standard Online Details. The systems shown are offline site layouts for curb inlets and pipe inlet for low flow applications using internal bypass. Details + dimensions included.

Cleanouts are omitted from layouts for clarity.

The online site layout for curb inlets shows the junction basin. Notes state that the throat inlet is shown. Planting should be drought resistant, full sunlight plants.

For designs that require a sump depth greater than 68”, contact ADS for information.

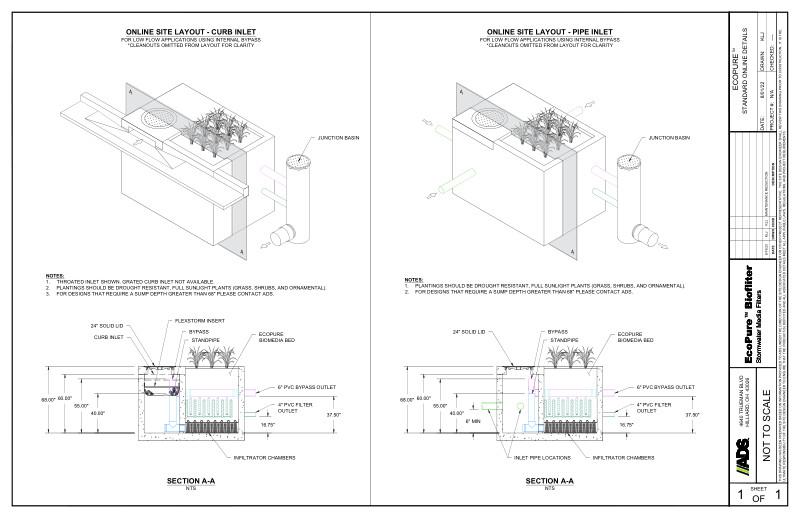

The detail for the online site layout for curb inlets shows the solid lid, curb inlet, flexstorm insert, bypass, standpipe, EcoPure biomedia bed, cleanout, PVC bypass outlet, PVC filter outlet and infiltrator chambers.

The online site layout for pipe inlet shows the junction basin. Notes state that planting should be drought resistant, full sunlight plants. For designs that require a sump depth greater than 68”, contact ADS for information.

The detail for the online site layout for pipe inlet shows the solid lid, bypass, standpipe, EcoPure biomedia bed, cleanout, PVC bypass outlet, PVC filter outlet, inlet pipe locations and infiltrator chambers.
