24" Pedestrian Locking Grate Assembly Nyloplast Detail
Filename:
24" Pedestrian Locking Grate Assembly Nyloplast Detail.dwg
![24" Pedestrian Locking Grate Assembly Nyloplast Detail](https://assets.adspipe.com/m/7025cc795ded3572/webimage-24-Pedestrian-Locking-Grate-Assembly-Nyloplast-Detail.jpg)

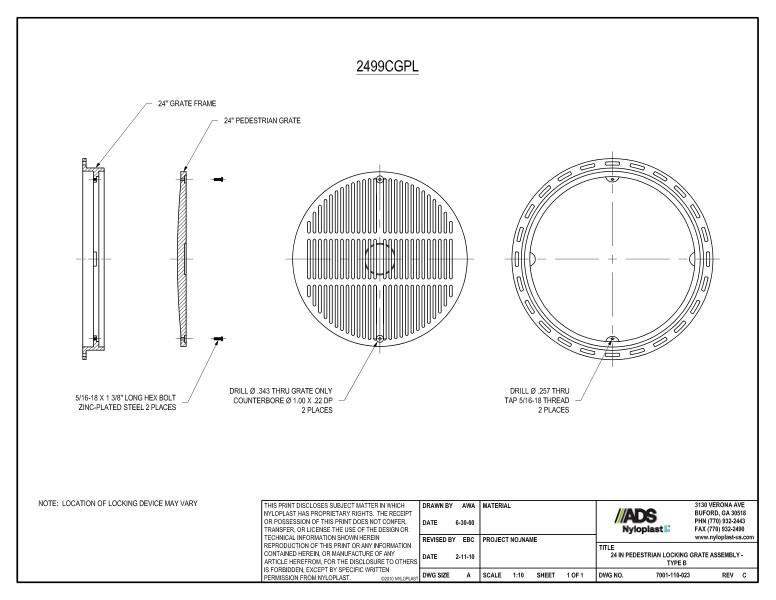

This document is the 24" Pedestrian Locking Grate Assembly Nyloplast Detail. It shows illustrations with descriptions.
The side view illustrations show the 24” grate frame & 24” Pedestrian cover with 5/16-18 x 1 3/8” long hex bolt zinc-plated steel in 2 places. The top down view shows the grate with drill thru position and the frame drill thru thread position.
A note states that the location of locking device may vary.
