10 x 4 N-12 Dual Wall Wye with SCH 40 Bell Nyloplast Detail
Filename:
10 x 4 N-12 Dual Wall Wye with SCH 40 Bell Nyloplast Detail.dwg

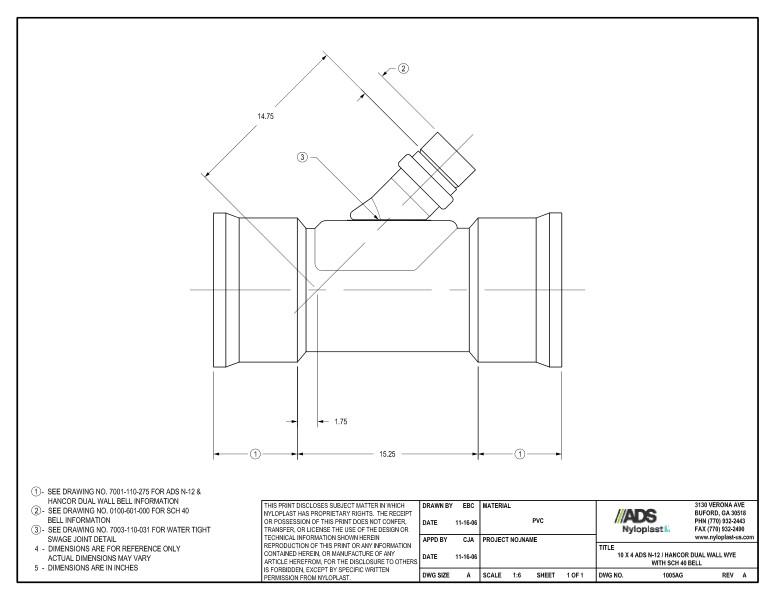

This document is the 10 x 4 N-12 Dual Wall Wye with SCH 40 Bell Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references Hancor Dual Wall Bell for more information. A note on dimension 2 references SCH 40 Bell for more information. Note 3 directs to see drawing for water tight SWAGE joint detail. Note 4 states that dimensions are for reference only. Note 5 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
