1480C Duraslot Open Top Assembly
Filename:
1480C Duraslot Open Top Assembly.pdf

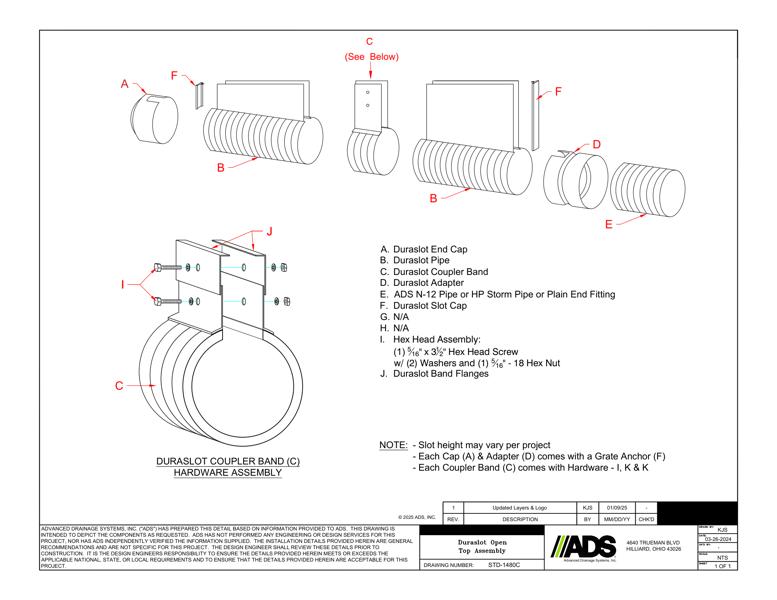

This document shows the 1480C Duraslot Open Top Assembly. Details of the Duraslot assembly with component locations and notes provided.
The details show the component locations for Duraslot end cap, Duraslot pipe, Duraslot coupler band, Duraslot adapter, ADS N-12 pipe or HP Storm Pipe or plain end fitting, Duraslot slot cap, Duraslot band flanges and hex head assembly. The Duraslot coupler band hardware assembly detail is included.
Notes state that if the slot height may vary with project, each cap and adapter comes with a grate anchor and each coupler band comes with hardware.
