8" - 30" Structure with Concrete in Sump Nyloplast Detail

Filename:
8" - 30" Structure with Concrete in Sump Nyloplast Detail.dwg

Download Document (dwg)
8" - 30" Structure with Concrete in Sump Nyloplast Detail

This document is the 8" - 30" Structure with Concrete in Sump Nyloplast Detail. Illustrations with description shown.

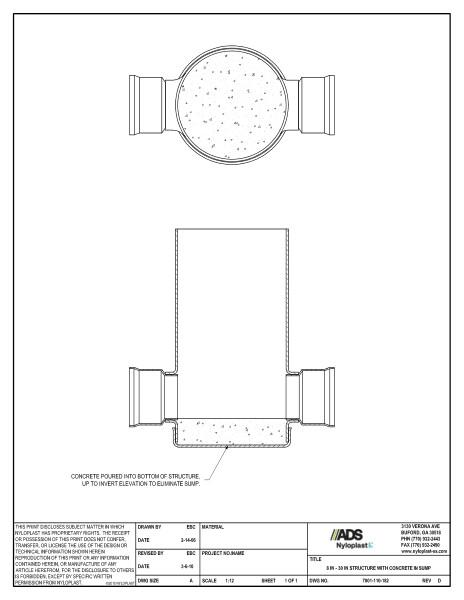

The details show the top and side view with a note that concrete poured into bottom of structure, up to invert elevation to eliminate sump.
