30" Solid Locking Cover Assembly Nyloplast Detail
Filename:
30" Solid Locking Cover Assembly Nyloplast Detail.pdf
![30" Solid Locking Cover Assembly Nyloplast Detail](https://assets.adspipe.com/m/4368df719ca9ddc6/webimage-30-Solid-Locking-Cover-Assembly-Nyloplast-Detail.jpg)

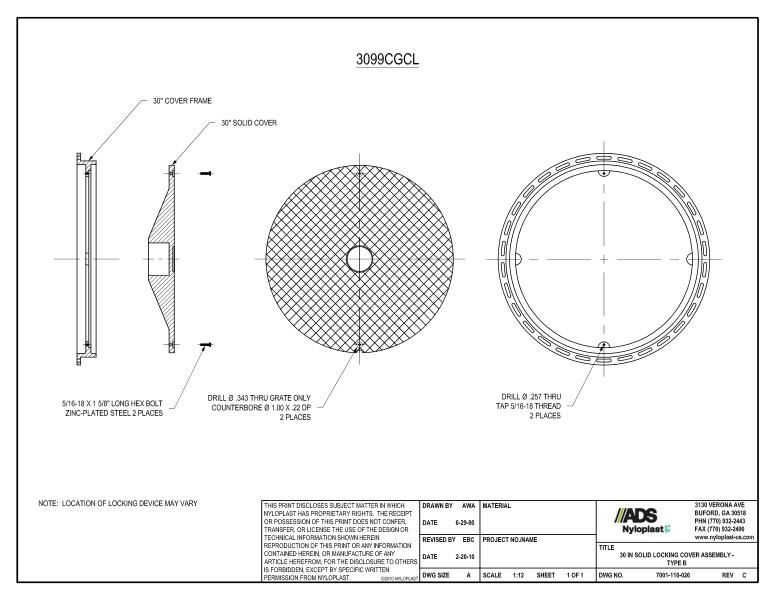

This document is the 30" Solid Locking Grate Assembly Nyloplast Detail. It shows illustrations with descriptions.
The side view illustrations show the 30” cover frame & 30” solid cover with 5/16-18 x 1 5/8” long hex bolt zinc-plated steel in 2 places. The top down view shows the grate with drill thru position and the frame drill thru thread position.
A note states that the location of locking device may vary.
