210 48" Polypropylene Basin with Marmac Wrap Detail

Filename:
210 48" Polypropylene Basin with Marmac Wrap Detail.pdf

210 48" Polypropylene Basin with Marmac Wrap Detail

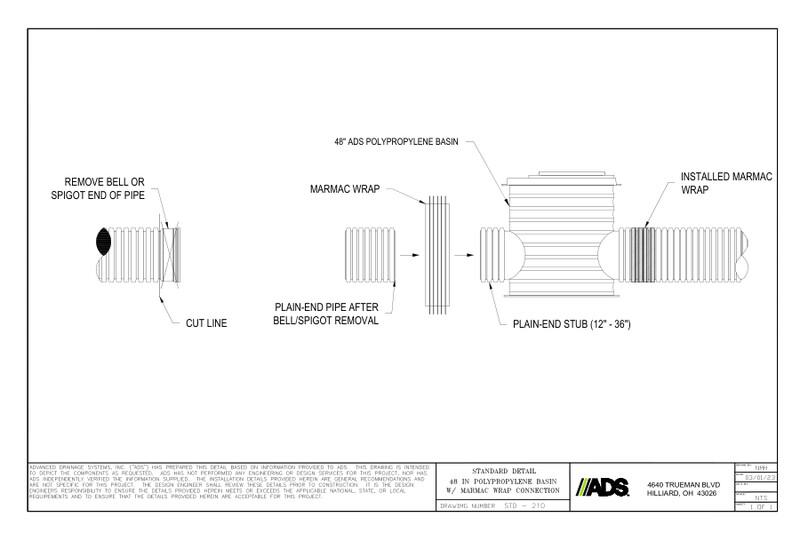

This document is the 210 48" Polypropylene Basin with Marmac Wrap Detail. Assembly of basin shown in details.

The standard details show the 48” ADS polypropylene basin with a cut line to remove bell or spigot end of pipe. The plain-end pipe after bell/spigot removal leads to the marmac wrap and then assembled into the plain end stub (12”-36”).

The installed marmac wrap is shown.
