12 x 8 N-12 Dual Wall Tee with Gasketed SWR Bell Nyloplast Detail
Filename:
12 x 8 N-12 Dual Wall Tee with Gasketed SWR Bell Nyloplast Detail.dwg
![12 x 8 N-12 Dual Wall Tee with Gasketed SWR Bell Nyloplast Detail](https://assets.adspipe.com/m/348d7e7ea57ac2c6/webimage-12-x-8-N-12-Dual-Wall-Tee-with-Gasketed-SWR-Bell-Nyloplast-Detail.jpg)

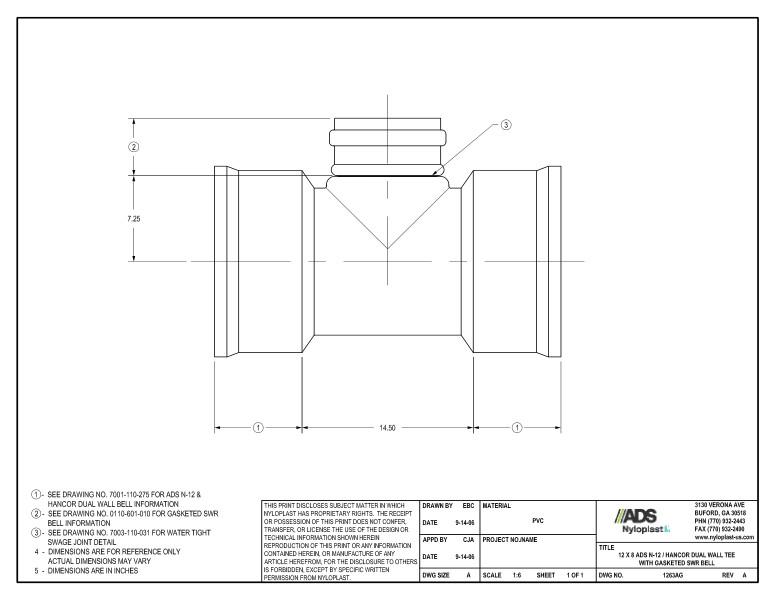

This document is the 12 x 8 N-12 Dual Wall Tee with Gasketed SWR Bell Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references Hancor Dual Wall Bell for more information. Note 2 refers to a drawing for gasketed SWR Bell information. Note 3 refers to drawing for water tight SWAGE joint detail. A note on dimension 4 states that dimensions are for reference only. Note 5 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
