42" X 12" - 60" X 24" 45º Wyes - Plain End (HP Storm Wyes Fittings Manual)

Filename:
42" X 12" - 60" X 24" 45º Wyes - Plain End (HP Storm Wyes Fittings Manual).pdf

Download Document (pdf) View in Browser
42" X 12" - 60" X 24" 45º Wyes - Plain End (HP Storm Wyes Fittings Manual)

This document is the 42" x 12" - 60" x 24" 45º Wyes - Plain End (HP Storm Wyes Fittings Manual). Diagram with table provided.

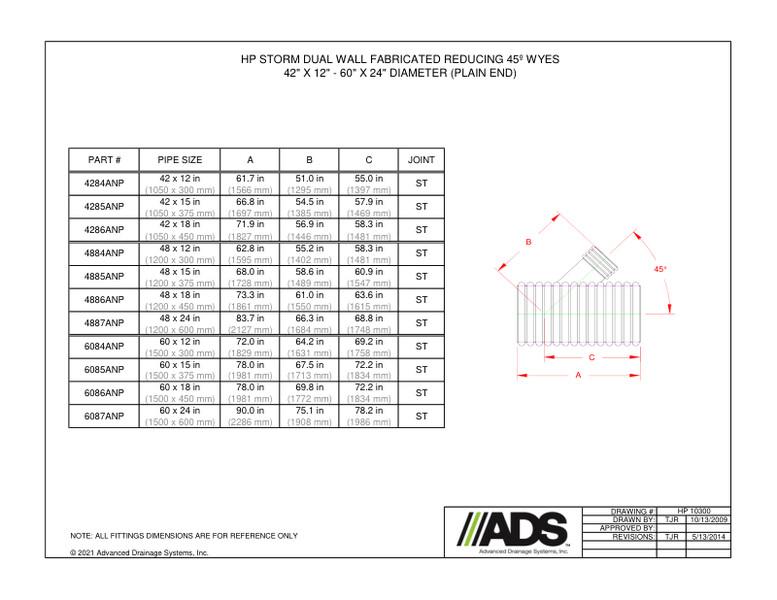

The diagram of the HP Storm Dual Wall Fabricated Reducing 45º Wyes 42" x 12" - 60" x 24" diameter (Plain End) with A/B/C dimensions and 45 degree arc is shown.

A table with part number, pipe size and A/B/C/Joint dimensions is provided.

All fittings dimensions are for reference only.
