Nyloplast Envirohood for 48" Round Concrete Structures - Outlet Size up to 18" Detail
Filename:
Nyloplast Envirohood for 48" Round Concrete Structures - Outlet Size up to 18" Detail.pdf
![Nyloplast Envirohood for 48" Round Concrete Structures - Outlet Size up to 18" Detail](https://assets.adspipe.com/m/2658077f4e9846c1/webimage-Nyloplast-Envirohood-for-48-Round-Concrete-Structures-Outlet-Size-up-to-18-Detail.jpg)

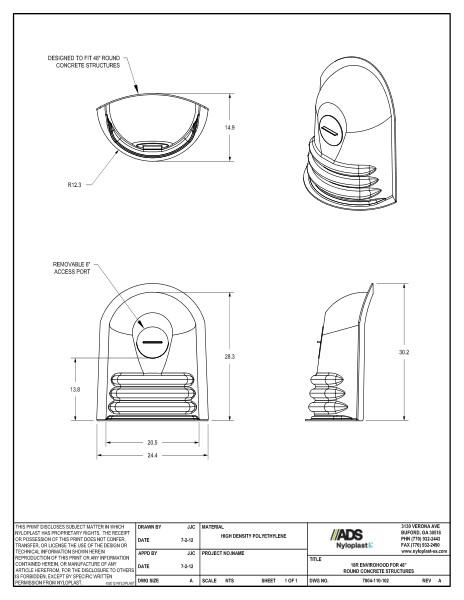

This document is the Nyloplast EnviroHood for 48” Round Concrete Structures – Outlet Size up to 18” Detail. Details with dimensions and nyloplast illustrations shown.
A top down illustration shows the EnviroHood dimensions designed to fit 48” round concrete structures. A side view shows the removable 6” access port with dimensions.
