4" Adapter - N-12 Dual Wall Bell x SCH 40 Spigot Nyloplast Detail
Filename:
4" Adapter - N-12 Dual Wall Bell x SCH 40 Spigot Nyloplast Detail.dwg
![4" Adapter - N-12 Dual Wall Bell x SCH 40 Spigot Nyloplast Detail](https://assets.adspipe.com/m/582eb00cc0f0ae32/webimage-4-Adapter-N-12-Dual-Wall-Bell-x-SCH-40-Spigot-Nyloplast-Detail.jpg)

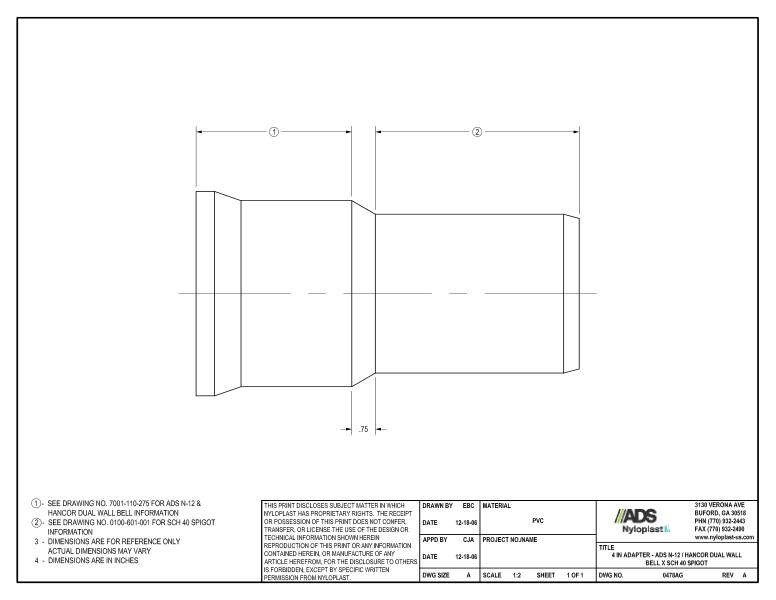

This document is the 4” Adapter - N-12 Dual Wall Bell x SCH 40 Spigot Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references Hancor Dual Wall Bell for more information. A note on dimension 2 references drawing for SCH 40 spigot information. Note 3 states that dimensions are for reference only. Note 4 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
