Drain Basin With Bronze Grate Quick Spec Installation Nyloplast Detail

Filename:
Drain Basin With Bronze Grate Quick Spec Installation Nyloplast Detail.pdf

Drain Basin With Bronze Grate Quick Spec Installation Nyloplast Detail

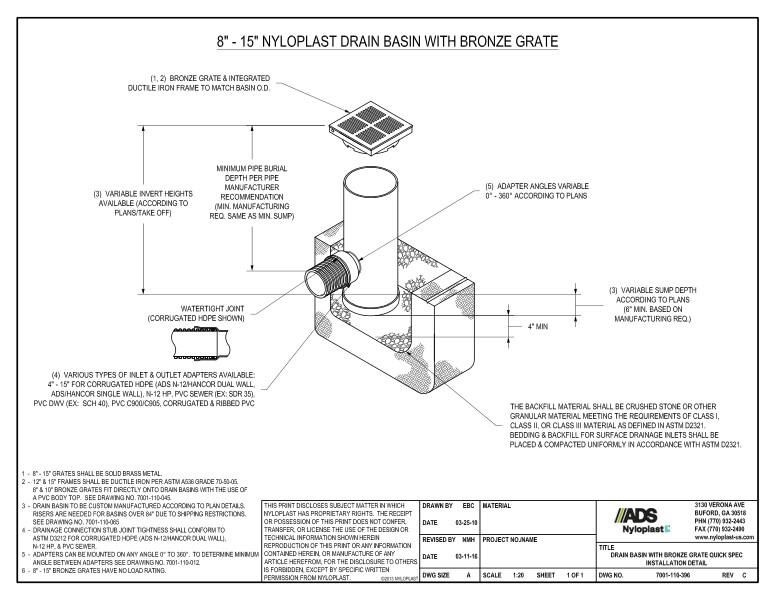

This document is the Drain Basin with Bronze Grate Quick Spec Installation Nyloplast Detail. It shows the drain basin illustrations with descriptions.

The illustration shows the integrated ductile iron frame & grate to match basin, minimum pipe burial, variable invert heights, various types of inlet & outlet adapters, adapter angles variable, watertight joint, variable sump depth and backfill material that should be crushed stone or other granular material.

Note 1 states that 8” – 15” grates shall be solid brass medal. Note 2 states that 12” – 15” frames shall be ductile iron per ASTM A536, grade 70-50-05. Note 3 says that drain basin to be custom manufactured. Note 4 clarifies that drainage connection stub joint tightness shall conform to ASTM D3212 for corrugated HDPE. Note 5 confirms that adapters can be mounted at any angle. Note 6 states that 8” – 15” bronze grates have no load rating.
