12" HP End Cap Nyloplast Detail

Filename:
12" HP End Cap Nyloplast Detail.pdf

Download Document (pdf) View in Browser
12" HP End Cap Nyloplast Detail

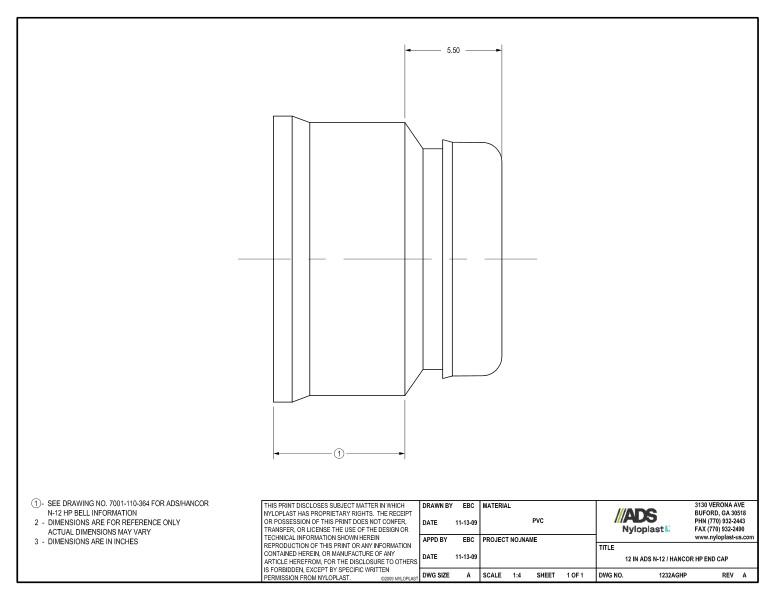

This document is the 12” HP End Cap Nyloplast Detail. End cap illustration shown with dimensions and notes.

The illustration shows the 5.50 dimension.

Note 1 refers to a drawing for ADS/Hancor N-12 HP Bell information. Note 2 states that dimensions are for reference only. Note 3 states that dimensions are in inches.

12" HP End Cap Nyloplast Detail
