This document is the 30" x 12" - 60" x 24" 45º Wyes – IB Bell/IB Spigot/Bell (HP Storm Wyes Fittings Manual). Diagram with table provided.

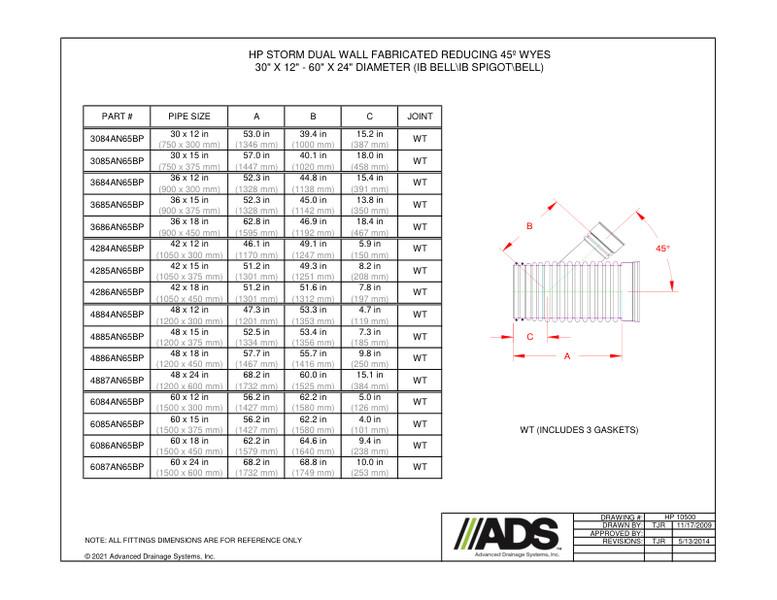

The diagram of the HP Storm Dual Wall Fabricated Reducing 45º Wyes 30" x 12" - 60" x 24" diameter (IB Bell/IB Spigot/Bell) with A/B/C dimensions and 45 degree arc is shown.

A table with part number, pipe size and A/B/C/Joint dimensions is provided.

All fittings dimensions are for reference only.
