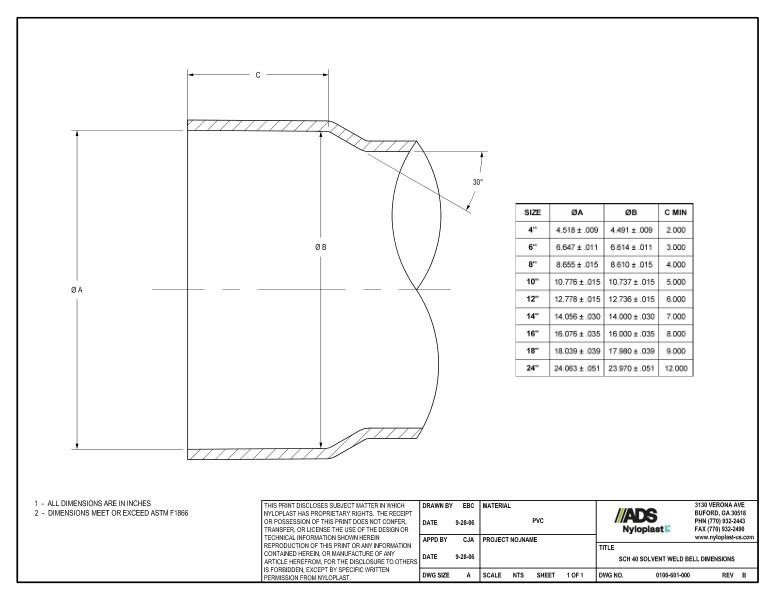

This document is the SCH 40 Solvent Weld Bell Dimensions Nyloplast Detail. Sizes, dimensions and nyloplast illustration shown.

Sizes from 4” to 24” are listed in the chart with corresponding sizes and A/B & C MIN lengths. An illustration showing the A/B/C dimensions is provided.
