36" x 12" - 36" x 30" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings)

Filename:
36" x 12" - 36" x 30" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings).pdf

36" x 12" - 36" x 30" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings)

This document is the 36" x 12" - 36" x 30" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings). Diagrams with table provided.

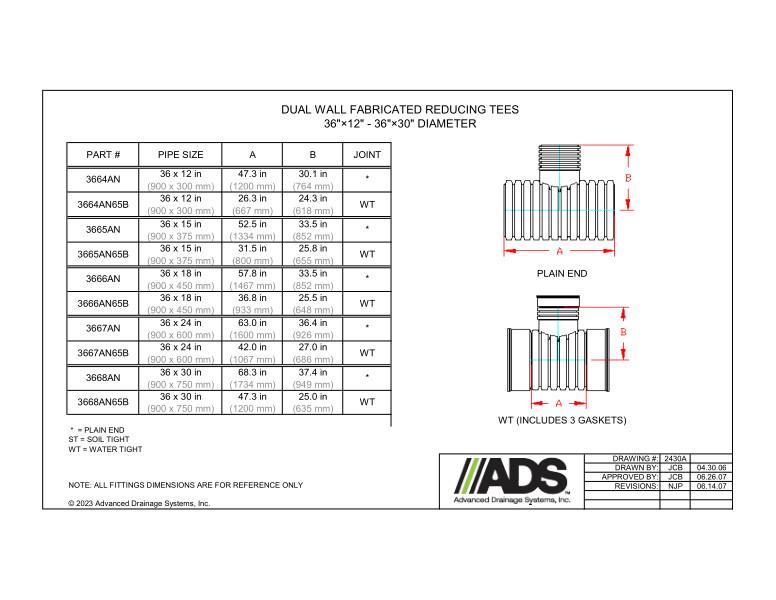

The dual wall Fabricated Reducing Tees 36" x 12" - 36" x 30" diameter is shown in a Plain End diagram with A/B dimensions and a WT (includes 3 gaskets) Tee that shows A/B dimensions.

A table with the information for part number, pipe size and A/B/Joint sizes is provided.

All fittings dimensions are for reference only.
