12" Inline Drain Golf Course Cart Path Installation Nyloplast Detail

Filename:
12" Inline Drain Golf Course Cart Path Installation Nyloplast Detail.dwg

12" Inline Drain Golf Course Cart Path Installation Nyloplast Detail

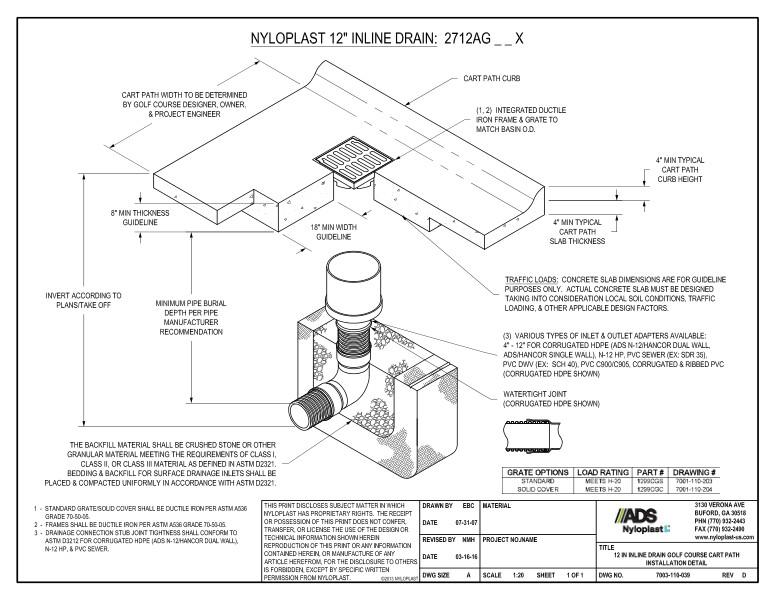

This document is the 12" Inline Drain Golf Course Cart Path Installation Nyloplast Detail. Illustrations with descriptions and notes shown.

The nyloplast 12” Inline Drain shows the cart path determined by golf course, cart path curb, integrated ductile iron frame & grate to match basin, 18” minimum width guideline, 8” minimum thickness guideline, 4” minimum typical cart path curb height, 4” minimum typical cart path slab thickness, invert heights, minimum pipe burial depth, backfill material shall be crushed stone or other granular material, traffic loads, water tight joint and various types of inlet/outlet adapters.

A chart is provided with grate options, load rating with corresponding part and drawing numbers.

Notes state that standard grate/solid cover shall be ductile iron. Frames shall be shall be ductile iron. Drainage connection stub joint tightness shall conform to ASTM D3212.
