8" Adapter - N-12 Dual Wall Bell x Gasketed SWR Bell Nyloplast Detail
Filename:
8" Adapter - N-12 Dual Wall Bell x Gasketed SWR Bell Nyloplast Detail.pdf
This document is the 8” Adapter - N-12 Dual Wall Bell x Gasketed SWR Bell Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references Hancor Dual Wall Bell for more information. A note on dimension 2 references drawing for gasketed SWR bell information. Note 3 states that dimensions are for reference only. Note 4 specifies that dimensions are in inches.

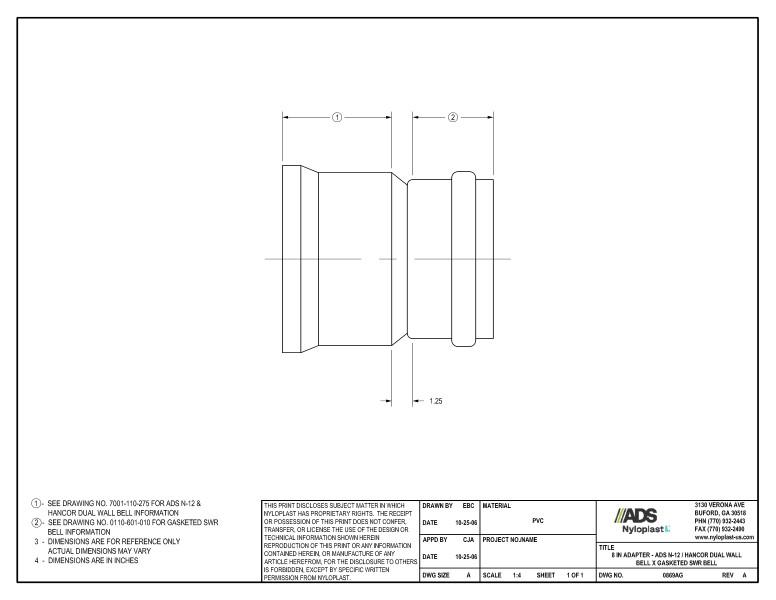

An illustration showing the dimensions is provided.
