45º Bends 30"-60" HP Storm - IB Bell/IB Spigot (HP Storm Bends Fittings Manual)

Filename:
45º Bends 30"-60" HP Storm - IB Bell/IB Spigot (HP Storm Bends Fittings Manual).pdf

Download Document (pdf) View in Browser
45º Bends 30"-60" HP Storm - IB Bell/IB Spigot (HP Storm Bends Fittings Manual)

This document is the 45º Bends 30"-60" – IB Bell/IB Spigot (HP Storm Bends Fittings Manual). Diagram with table provided.

A table with part number, pipe size and A/B/Joint dimensions is provided.

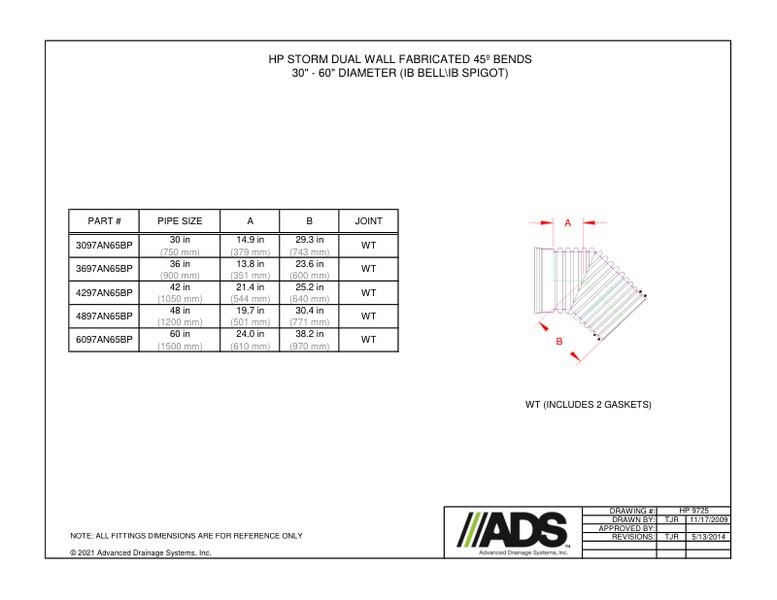

The diagram of the HP Storm Dual Wall Fabricated 45º Bends 30"-60" diameter (IB Bell/IB Spigot) WT (includes 2 gaskets) is shown.

All fittings dimensions are for reference only.
