STD-1105 Inserta Tee® Fittings Corrugated Bell for Gravity Application Detail
Filename:
STD-1105 Inserta Tee® Fittings Corrugated Bell for Gravity Application Detail.dwg

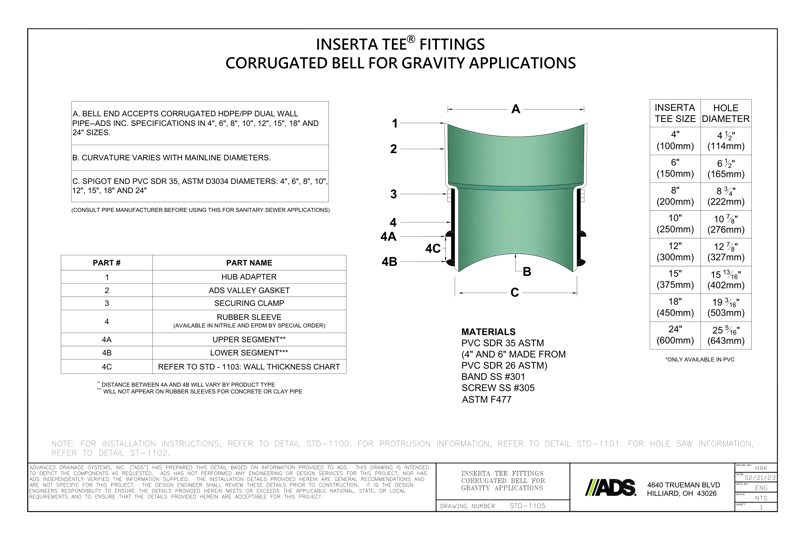

The drawing gives information on an Inserta Tee® corrugated bell for gravity applications.
An Inserta Tee connection is made of a PVC hub adapter, a rubber gasket and a stainless steel securing clamp. The bell end of the Inserta Tee accepts corrugated polyethylene and PVC. Corrugated pipe or equivalent outside diameter specifications in 4”, 6”, 8”, 10”, 12”, 15”, 18”, 21”, 24”, 27” and 30” (100, 150, 200, 250, 300, 375, 450, 525, 600, 675 and 750 mm) sizes.
