15" Bronze Locking Grate Assembly Nyloplast Detail
Filename:
15" Bronze Locking Grate Assembly Nyloplast Detail.dwg
![15" Bronze Locking Grate Assembly Nyloplast Detail](https://assets.adspipe.com/m/5677c3c81ba2be79/webimage-15-Bronze-Locking-Grate-Assembly-Nyloplast-Detail.jpg)
This document is the 15" Bronze Locking Grate Assembly Nyloplast Detail. It shows illustrations with descriptions.

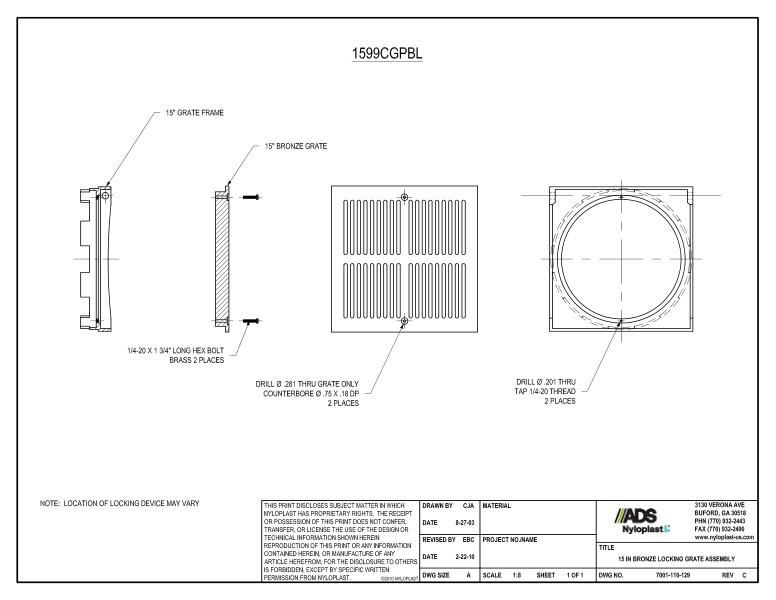

The side view illustrations show the 15” grate frame & 15” Bronze grate with ¼-20 x 1 ¾” long hex bolt brass in 2 places. The top down view shows the grate with drill thru position and the frame drill thru thread position.
A note states that the location of locking device may vary.
