15" Unsanded Manhole Adapter - N-12 Dual Wall Bell x SWR Spigot Nyloplast Detail
Filename:
15" Unsanded Manhole Adapter - N-12 Dual Wall Bell x SWR Spigot Nyloplast Detail.pdf
![15" Unsanded Manhole Adapter - N-12 Dual Wall Bell x SWR Spigot Nyloplast Detail](https://assets.adspipe.com/m/12be6599b209d64d/webimage-15-Unsanded-Manhole-Adapter-N-12-Dual-Wall-Bell-x-SWR-Spigot-Nyloplast-Detail.jpg)

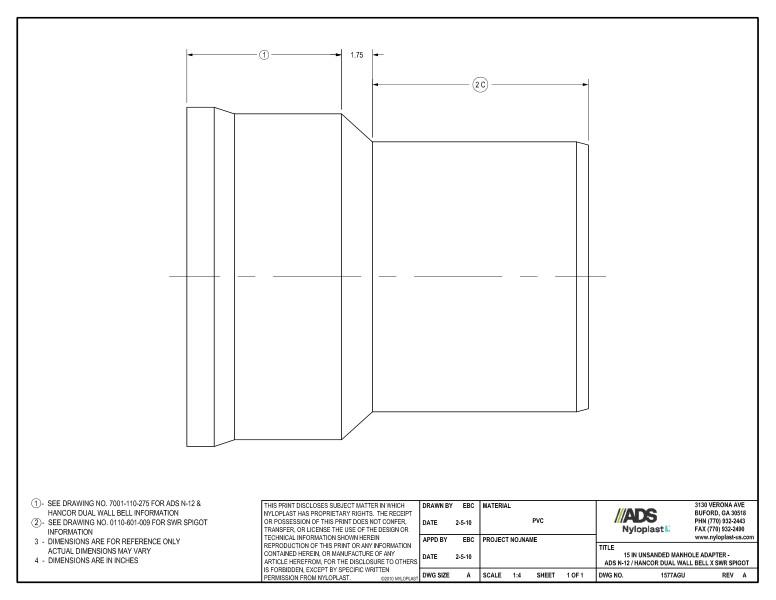

This document is the 15” Unsanded Manhole Adapter - N-12 Dual Wall Bell x SWR Spigot Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references Hancor Dual Wall Bell for more information. A note on dimension 2 references a drawing for SWR spigot information. Note 3 states that dimensions are for reference only. Note 4 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
