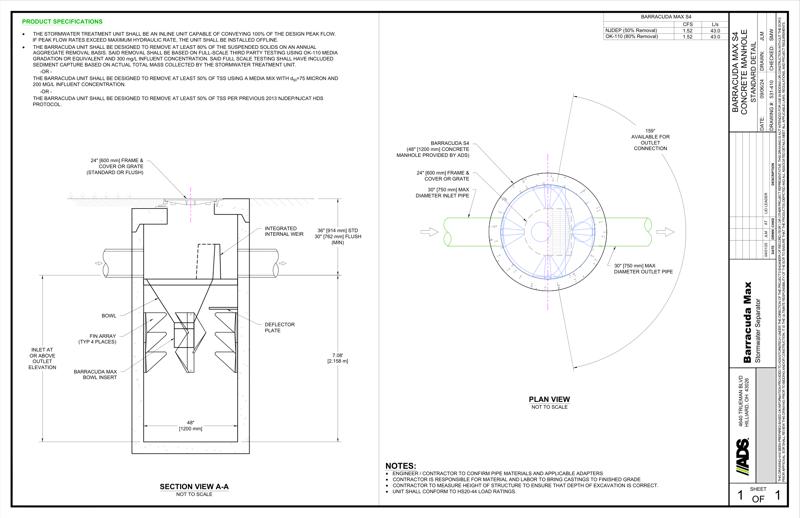

This document is the Barracuda Max S4 Detail. The stormwater treatment plan view and section views with dimensions included.

The stormwater treatment unit shall be an inline unit capable of conveying 100% of the design peak flow. It will remove 50% of the suspended solids on an average aggregate removal basis.

The section view A-A shows the frame and cover, integrated internal weir, inlet/outlet, deflector plate, bowl, fin array and Barracuda Max bowl insert.

The plan view shows the Barracuda S4 concrete manhole, frame &cover/grate, inlet and outlet pipe.

4 notes with additional information provided.
