Nyloplast Structure with 3'x3' Inlet Grate Product Sheet

Nyloplast Structure with 3'x3' Inlet Grate Product Sheet.pdf

Nyloplast Structure with 3'x3' Inlet Grate Product Sheet

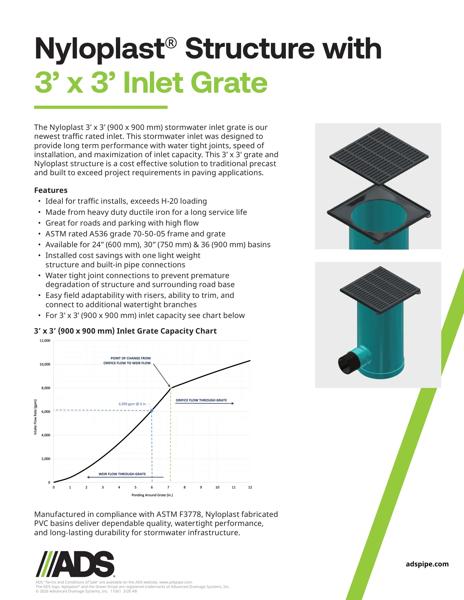

This document is the Nyloplast Structure with 3'x3' Inlet Grate Sell Sheet. General description, photographs and features explained.

The Nyloplast 3’ x 3’ (900 x 900 mm) stormwater inlet grate is our newest traffic rated inlet. This stormwater inlet was designed to provide long term performance with water tight joints, speed of installation, and maximization of inlet capacity. This 3’ x 3’ grate and Nyloplast structure is a cost effective solution to traditional precast and built to exceed project requirements in paving applications.

Features listed are ideal for traffic installs, exceeds H-20 loading. Made from heavy duty ductile iron for a long service life. Great for roads and parking with high flow. ASTM rated A536 grade 70-50-05 frame and grate. Available for 24” (600 mm), 30” (750 mm) & 36 (900 mm) basins. Installed cost savings with one light weight structure and built-in pipe connections. Water tight joint connections to prevent premature degradation of structure and surrounding road base. Easy field adaptability with risers, ability to trim, and connect to additional watertight branches.

A graph detailing a 3’ x 3’ (900 x 900 mm) inlet capacity with intake flow rate and ponding around grate axis with weir flow through gate, orifice flow through gate and point of change from orifice flow to weir flow is plotted.
