12" - 24" StormTech Dual Wall Fabricated Soil Tight Double Manifolds (StormTech Dual Wall HDPE Fittings)
Filename:
12" - 24" StormTech Dual Wall Fabricated Soil Tight Double Manifolds (StormTech Dual Wall HDPE Fittings).pdf
![12" - 24" StormTech Dual Wall Fabricated Soil Tight Double Manifolds (StormTech Dual Wall HDPE Fittings)](https://assets.adspipe.com/m/6ae17e22f3da2089/webimage-12-24-StormTech-Dual-Wall-Fabricated-Soil-Tight-Double-Manifolds-StormTech-Dual-Wall-HDPE-Fittings.jpg)
This document is the 12" - 24" StormTech Dual Wall Fabricated Soil Tight Double Manifolds (StormTech Dual Wall HDPE Fittings). A diagram with table provided.

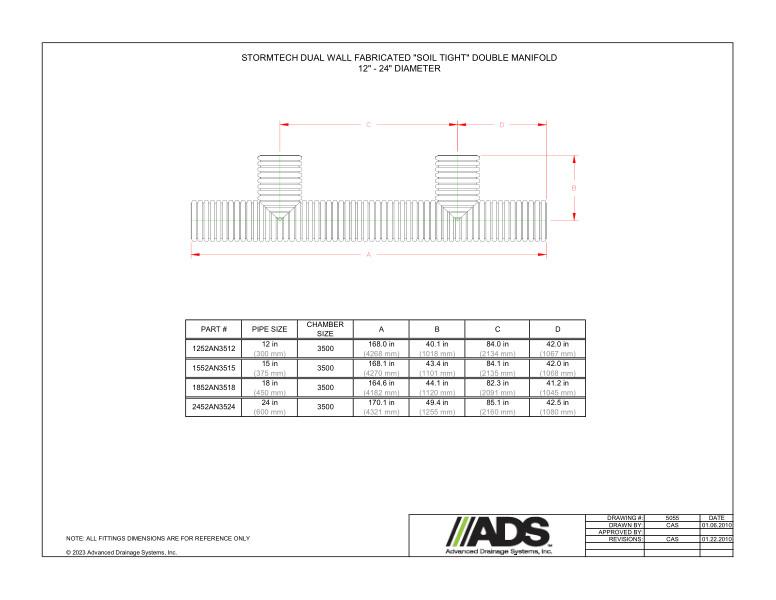

The StormTech dual wall Fabricated “Soil Tight” Double Manifold 12" - 24" diameter is shown in a diagram that shows A/B/C/D dimensions.
A table with the information for part number, pipe size and A/B/C/D sizes is provided.
All fittings dimensions are for reference only.
