8 x 8 N-12 Dual Wall Tee with Gasketed SWR Bell Nyloplast Detail
Filename:
8 x 8 N-12 Dual Wall Tee with Gasketed SWR Bell Nyloplast Detail.pdf
This document is the 8 x 8 N-12 Dual Wall Tee with Gasketed SWR Bell Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references Hancor Dual Wall Bell for more information. A note on dimension 2 references Gasketed SWR Bell for more information. Note 3 directs to see drawing for water tight SWAGE joint detail. Note 4 states that dimensions are for reference only. Note 5 specifies that dimensions are in inches.

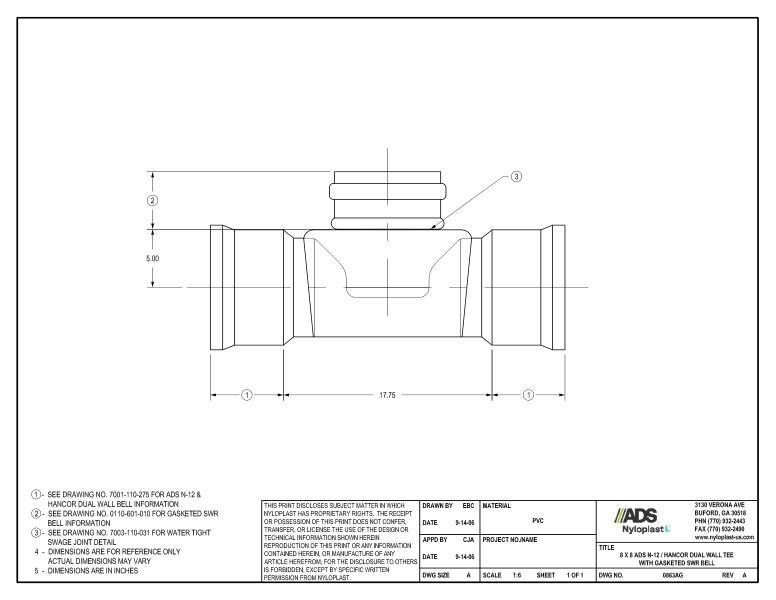

An illustration showing the dimensions is provided.
