8" - 12" Catch Basin Elbow (HDPE Dual Wall Miscellaneous Fittings)

Filename:
8" - 12" Catch Basin Elbow (HDPE Dual Wall Miscellaneous Fittings).pdf

Download Document (pdf) View in Browser
8" - 12" Catch Basin Elbow (HDPE Dual Wall Miscellaneous Fittings)

This document is the 8” x 12” Catch Basin Elbow (HDPE Dual Wall Miscellaneous Fittings). A diagram with table provided.

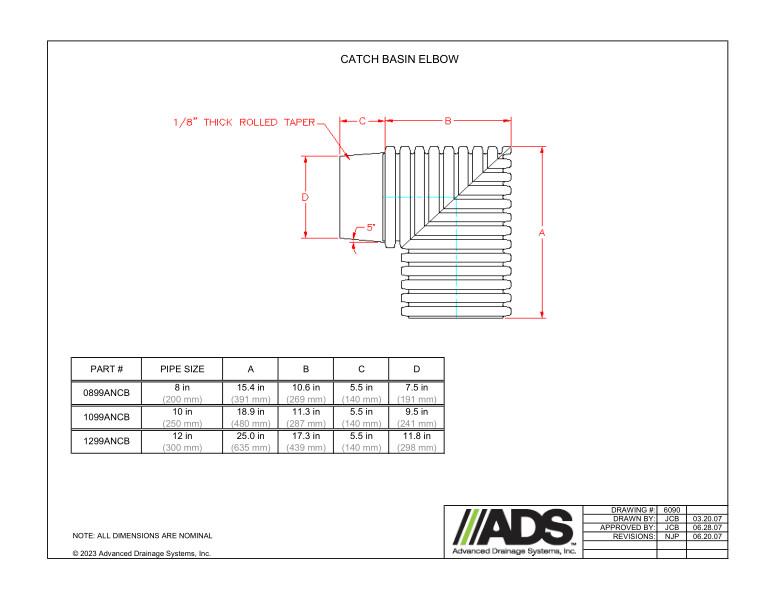

The Catch Basin Elbow diagram is shown with 1/8 thick rolled taper and A/B/C/D dimensions. It includes 2 gaskets.

A table with the information for part number, pipe size and A/B/C/D sizes is provided.

All dimensions are nominal.
