12"-18" & 24" WT Gasket End Triple Manifold (HP Storm Manifolds Fittings Manual)

This document is the 12”x18” & 24” WT Gasket End Triple Manifold (HP Storm Manifolds Fittings Manual). Table with pipe size and diagram with descriptions included.

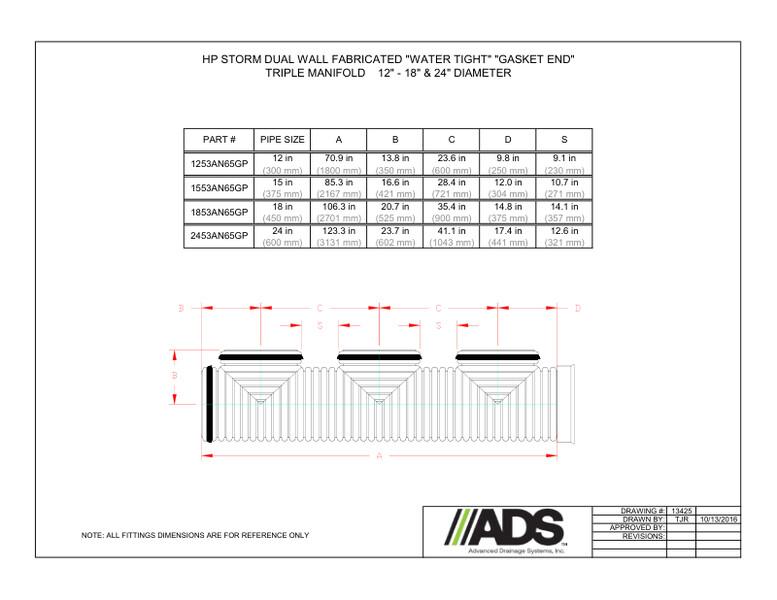

The HP Storm Dual Wall Fabricated “water tight” “gasket-gasket” Triple Manifold 12”x18” & 24” diameter is shown with a chart that lists the values for Part number, pipe size and A/B/C/D/S. Diagram provided.

12"-18" & 24" WT Gasket End Triple Manifold (HP Storm Manifolds Fittings Manual)
