30" x 4" - 30" x 10" Fabricated 60 Degree Reducing Wye (HDPE Dual Wall Fabricated Wye Fittings)
Filename:
30" x 4" - 30" x 10" Fabricated 60 Degree Reducing Wye (HDPE Dual Wall Fabricated Wye Fittings).pdf
![30" x 4" - 30" x 10" Fabricated 60 Degree Reducing Wye (HDPE Dual Wall Fabricated Wye Fittings)](https://assets.adspipe.com/m/1a44d5bacc97e455/webimage-30-x-4-30-x-10-Fabricated-60-Degree-Reducing-Wye-HDPE-Dual-Wall-Fabricated-Wye-Fittings.jpg)
This document is the 30" x 4" - 30" x 10" Fabricated 60 Degree Reducing Wyes (HDPE Dual Wall Fabricated Wyes Fittings). Diagrams with table provided.

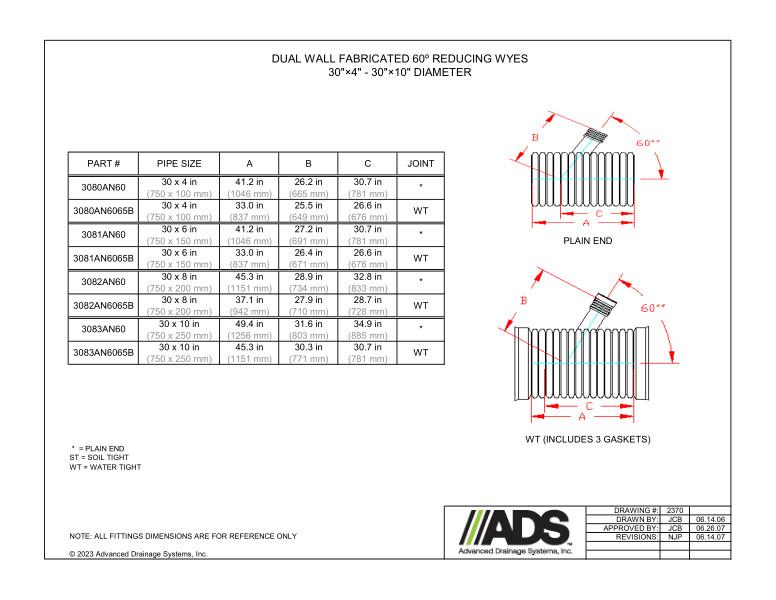

The diagram of the Dual Wall Fabricated 60 Degree Reducing Wyes 30" x 4" - 30" x 10" diameter shows the Plain End Wye with A/B/C dimensions and 60 degree arc. The WT (includes 3 gaskets) Wye is shown with A/B/C dimensions and 60 degree arc.
A table with part number, pipe size and A/B/C/Joint dimensions is provided.
All fittings dimensions are for reference only.
