This document is the 608 HDPE to HDPE Connection (MarMac) Detail. Cross sections with descriptions and dimensions provided.

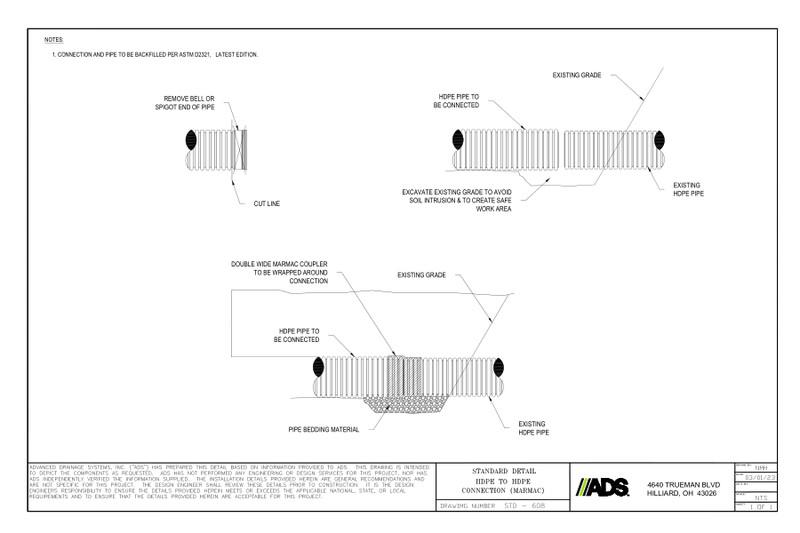

The first cross section shows the cut line and remove bell or spigot end of pipe.

The second cross section shows double wide MARMAC coupler to be wrapped around connection, existing grade, the HDPE pipe to be connected, existing HDPE pipe and pipe bedding material.

The third section shows an existing grade, the HDPE pipe to be connected, existing HDPE pipe and excavate existing grade to avoid soil intrusion and to create a safe work area.

Notes state that connection and pipe to be backfilled per ASTM D2321.
