SC-310 6" (150 mm) StormTech Inspection Port Detail.

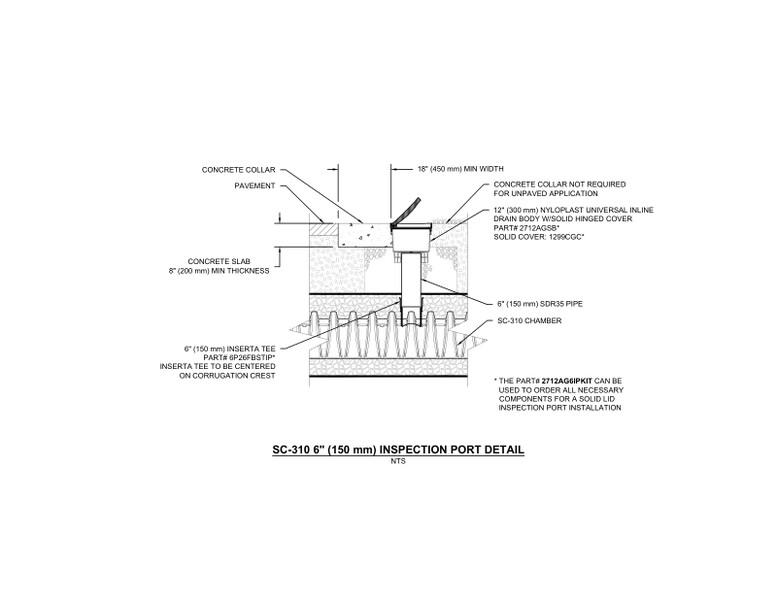

This document is the SC-310 6" (150 mm) StormTech Inspection Port Detail. A cross section of the inspection port detail is shown.

The cross section of the SC-310 Inspection port shows 18” minimum width, the concrete collar, pavement, concrete slab, 12” nyloplast inline drain body with solid hinged cover, 6” SDR 35 pipe and the 6” inserta TEE which is to be centered on the corrugation crest. The SC-310 chamber is positioned underneath.
